Photovoltaic polycrystalline silicon 140W solar panel system,kits

Specifications

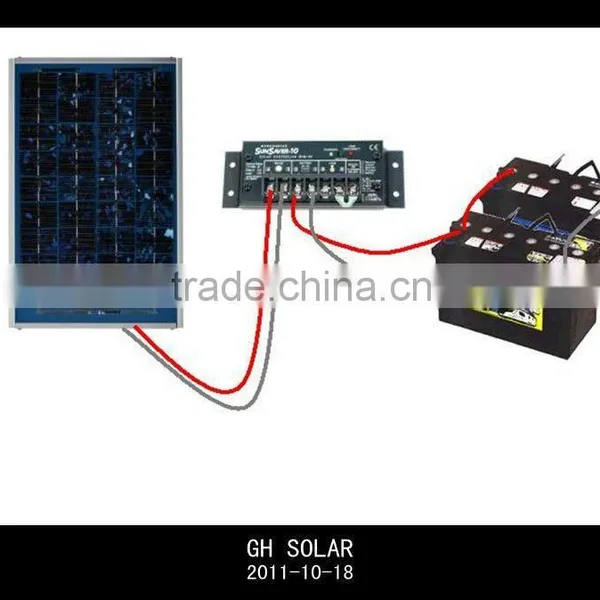

Solar panel system
1.Long life span
2.CE RoSH TUV approved
3.Max power:70W~85W
4.Cell QTY:6*6pcs

Poly Solar Panel EBTSP250W
Brand:EVER BETTER
Packing:Carton and Pallet
Certificate:TUV, VDE, CE, IEC

Poly Solar Panel EBTSP250W
Brand:EVER BETTER
Packing:Carton and Pallet
Certificate:TUV, VDE, CE, IEC



Product Description

1. Solar panel/solar module/PV module/produced with high conversion effeciency, which purchased from Q-CELLS, CONERGY, ERSOL;
2. High quality of TPT, EVA, Tempered glass, aluminum frame to laminate solar panels and waterproof junction box and label;
3. With long lifetime of 25-30years, 5-10years warranty with and stable characterstics and performance;
4. We laminate solar panels from 5W-280W, with mono crystalline and poly crystalline solar cells.
5. We have TUV, ISO 9001/14001, CE, CEC certificate and so on.

Model	EBTSP250W
Cells size (mm):	156*156
Cells per module:	6*12
Module size (mm):	992*1956*50
Power tolerance:	+/-3%
Nominal peak power(WP):	250
Nominal voltage(V):	36.1
Nominal current (A):	6.99
NOCT:	45+/-2degree
Voltage temperature coefficient:	-0.33%/degree
Current temperature coefficient:	+0.05%/degree
Power temperature coefficient:	-0.23%/degree
Open circuit voltage (Voc):	43.3
Short cirsuit current(Isc):	7.55
Conversion efficiency:	14.26%
Operating temperature:	-40 to+85degree
Max system voltage:	1000V DC
