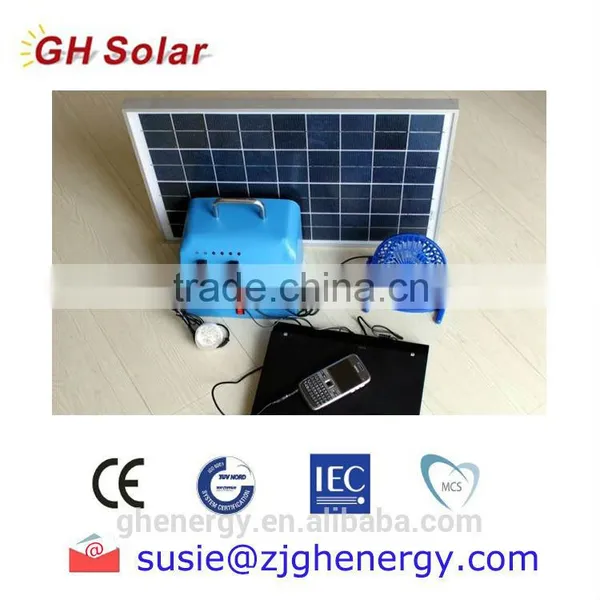

LED Light Use Mini Poly 10w Solar Panel
US$ 0.5 - 1.5
MOQ: 50 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Zhejiang, China
Brand Name:
GH
Model Number:
GH-M302
Payment & Shipping
Payment Methods:
Port of Shipment:
Ningbo
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Solar Panel Battery Charger 1.5vUS$ 0.7 - 2MOQ: 100 Pieces -
Home Solar Panel System AC for Electricity ApplianceUS$ 0.55 - 1.2MOQ: 1 Piece
-
Home Solar System AC for Electricity Appliance ,solar Power SystemUS$ 0.55 - 1.2MOQ: 1 Piece
-
Popular Low Price per Watt 150W Solar Panels in Pakistan Hot SaleUS$ 0.45 - 0.7MOQ: 1 Piece
-
Popular! 250KW Solar Power China Solar ProductsUS$ 0.77 - 1MOQ: 10 Pieces
Place of Origin
Zhejiang, China
Brand Name
GH
Model Number
GH-M302
Material
Polycrystalline Silicon
Size
125mm 156mm
Number of Cells
36
Max. Power
10W
LED light use mini poly 10w solar panel
APPLICATIONS
Solar power stations
Rural electrification, Small home power systems
Power supply for traffic, security, gas industry
12V and 24V battery charging system
Other industrial and commercial applications
| ELECTRICAL CHARACTERISTICS | |||||||
| Model Number | KM275(6) | KM280(6) | KM285(6) | KM290(6) | KM295(6) | KM300(6) | |
| Maximum Power as per STC | Pmax(W) | 275 | 280 | 285 | 290 | 295 | 300 |
| Power Tolerance | % | ± 3% | |||||
| Maximum Power Voltage | Vm(V) | 36.43 | 36.56 | 36.72 | 36.79 | 36.93 | 37.15 |
| Maximum Power Current | Im(A) | 7.55 | 7.66 | 7.77 | 7.89 | 7.99 | 8.08 |
| Open Circuit Voltage | Voc(V) | 43.7 | 42.92 | 44.06 | 44.21 | 44.35 | 44.5 |
| Short Circuit Current | Isc(A) | 8.1 | 8.17 | 8.23 | 8.33 | 8.41 | 8.72 |
| Maximum System Voltage | VDC | 1000 | |||||
| Cell Efficiency | % | 15.8 | 16.1 | 16.4 | 16.7 | 17.0 | 17.3 |
| Module Efficiency | % | 14.2 | 14.5 | 14.7 | 15.0 | 15.2 | 15.5 |
| Cells per Module | Pcs | 72 | |||||
| Cell Type | Monocrystalline silicon | ||||||
| Cell Size | mm | 156 x 156 | |||||
| Bypass Diodes | Pcs | 12Amp, 6 pcs | |||||
| Max. Series Fuse Rating | A | 15A | |||||
| Temperature coefficient of Isc | % | 0.05 | |||||
| Temperature coefficient of Voc | % | -0.35 | |||||
| Temperature coefficient of power | % | -0.47 | |||||
| NOCT- Nominal operating cell temperature | 47 ± 2 degree | ||||||
| Operating Temperature | from -40 to +85 degree | ||||||
| MECHANICAL CHARACTERISTICS | |||||||
| Dimensions | mm | 1954 x 990 x 50 | |||||
| Weight | Kg | 23.5 | |||||
| Type of Junction Box | TUV certified, IP65 | ||||||
| Cable Type, Diameter | TUV certified, 4mm 2, 90 cm in length | ||||||
| Connector | compatible to Type 4 (MC4) | ||||||
| Tempered Glass | 3.2 mm, high transmission, low iron | ||||||
