Monocrystalline 40w 12v Solar Panel High Efficiency Sillicon Cell

Monocrystalline 40w 12v Solar Panel High Efficiency Sillicon Cell photo-1
US$ 0.7 - 1.5 MOQ: 100 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Zhejiang, China
Brand Name:
Ganghang
Model Number:
GH-M-046
Payment & Shipping
Payment Methods:
Port of Shipment:
Ningbo/Shanghai
Delivery Detail:
Delivery time depends on order quantity.
Place of Origin Zhejiang, China
Brand Name Ganghang
Model Number GH-M-046
Material Monocrystalline Silicon
Size 640*550*30 mm
Number of Cells 4*9
Max. Power 40W

Specifications

12v 40w Monocrystalline Solar Panel
1.Mono or Poly silicon
2.Warranty: about 25years
3.Certificate: CE,TUV, UL etc.

12v 40w Monocrystalline Solar Panel Details:

  • Main products: solar cell, solar panel, solar power system etc.
  • MOQ: 100pcs(sample order and trial order are welcomed)
  • Warranty: 6month-1year for solar cells, 5years product warranty,10years 90% and 20years 85% for solar panels, 1year for solar systems
  • OEM order: welcomed
  • Certificate: CE,TUV, UL etc.
  • Package: carton, wooden case or as your spec.
  • Delivery term: about 30days by sea
  • Widely used for electricity, home, industry, communication, navigation, irrigation, PV house and remote power requirements etc.

Parameter:

Model GH-M-046
Pmax 40W
power tolerance: ±3%
Vmp 17.2V
Imp 2.32A
Voc 21.60V
Isc 2.9A
Pcs 4*9
Cell Type 125*125mm monocrystalline solar cell
Size 640*550*30 mm
Net weight 3kg
STC 1000W/m2,AM 1.5,25oC
Warranty 5 year warranty for products,10 years for 90% power ,25 years for 80% power
Accessory  3.2mm thick tempered glass,aluminium frame
Others There are drainage holes on the Border components, eliminating the framework of deformation caused by rain or snow accumulated in the framework

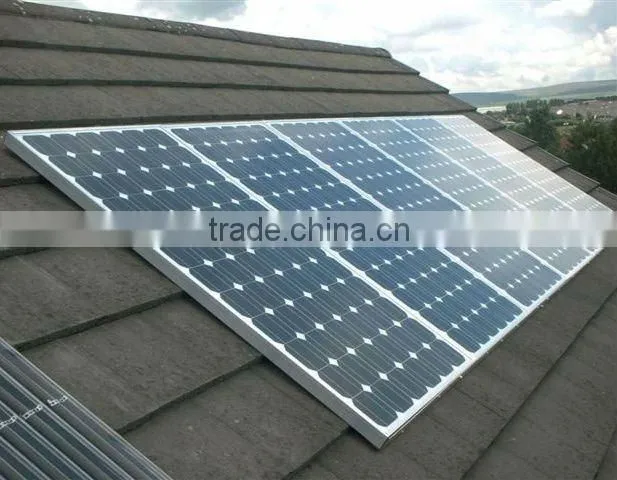

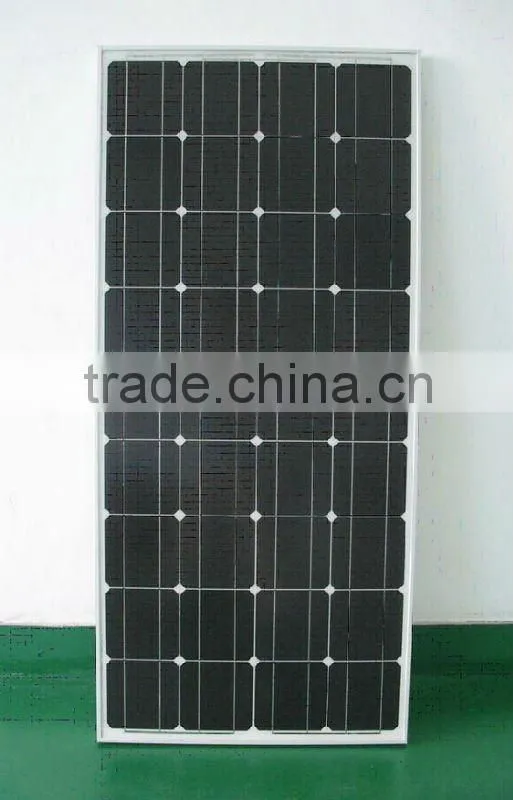

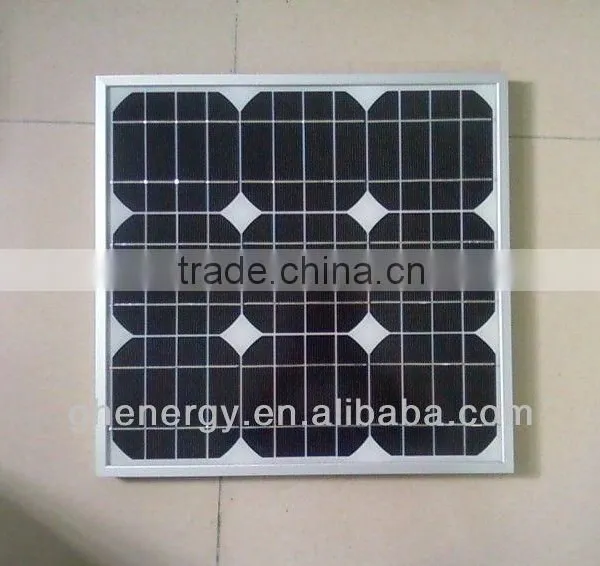

There are some image as follwoing for the 12v 40w solar panel for your inference:

Monocrystalline 40w 12v Solar Panel high efficiency sillicon cell

Monocrystalline 40w 12v Solar Panel high efficiency sillicon cell

Monocrystalline 40w 12v Solar Panel high efficiency sillicon cell

Monocrystalline 40w 12v Solar Panel high efficiency sillicon cell



Monocrystalline 40w 12v Solar Panel high efficiency sillicon cell

Any question or inquiry, pls contact us, we will reply you ASAP, thank you very much.
