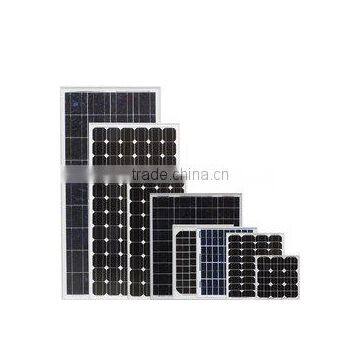

Solar modules Monocrystalline 100W GH energy
Solar panel
Our Solar Panels are A GRADE and are EURO, TUV, CE, IEC & NZ Certified.
photovoltaic solar panel
They are made of Crystalline Photovoltaic cells and Aluminum framed.High efficiency and A GRADE quality
Full EURO, TUV, CE, IEC & NZ certification
The structure of solar panel

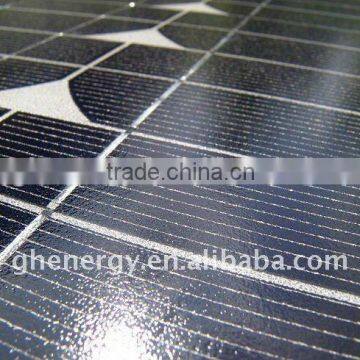

solar panel ---- Cells
The high-efficiency of mono and poly solar cells ensure adequate power for solar panels.
solar panel ---- Glass
Low iron tempered glass, 3.2mm thickness with high reflectivity.
solar panel ---- EVA
Higher transmission rate, antioxidant capacity and temperature resistance, no expansion or contraction.
solar panel ---- Back film
Increase efficiency of solar modules sightly and reduce solar panel’s temperature. Aging resistance, corrosion resistance and airtight.
solar panel ---- Frame
Using the framework of the anodized aluminum frame with high intensity, mechanical shock resistance capability.
Solar modules
100W Monocrystalline Solar Module with 40pcs of mono solar cell,Pmax100W,Vmp12-24(V),Imp17.8A ,TUV CE
Zhejiang Ganghang Solar Technology Co.,LTD
Website: ;
Tel:86-0571-88135965,Cell:13732253725
Fax:86-0571-85273827
Skype:hopezjghsolar
Sales Add:No.658,North Jianguo
Road.Hangzhou,China
P.C.:310004
| Model | GH-644 |
| Pmax | 100W |
| power tolerance: | ±3% |
| Vmp | 12V |
| Imp | 17.8A |
| Voc | 24V |
| Isc | 35.6A |
| Pcs | 36(5*8) |
| Cell Type | 125*125 monocrystalline solar cell |
| Size | 670*816*40mm |
| Net weight | 6.5kg |
| STC | 1000W/m2,AM 1.5,25oC |
| Warranty | 3 year warranty for products,10 years for 90% power ,25 years for 80% power |
| Accessory | 3.2mm thick tempered glass,aluminium frame |
| Others | There are drainage holes on the Border components, eliminating the framework of deformation caused by rain or snow accumulated in the framework |

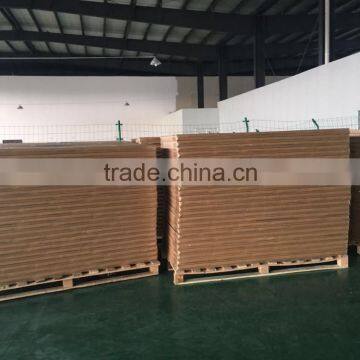

u Normally packing: 1pc/2pcs/3pcs/10pcs/20pcs per carton
u Individual packing requirement is acceptable
