Monocrystalline 290W Solar Modules GH Energy

Monocrystalline 290W Solar Modules GH Energy thumbnail-1
Monocrystalline 290W Solar Modules GH Energy photo-1
US$ 0.49 - 0.78 MOQ: 1000 Watts
Key Specifications
Get Latest Price
Place of Origin:
Zhejiang, China
Brand Name:
GH Solar Energy
Model Number:
GHM-290
Contact Supplier Request Quote Chat Now
Zhejiang Ganghang Solar Technology Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Ningbo or ShangHai
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Zhejiang, China
Brand Name GH Solar Energy
Model Number GHM-290
Material Monocrystalline Silicon
Size 1950*992*50mm
Number of Cells 72pcs
Max. Power 290W

Specifications

Solar modules
1.Solar panel:290W
2.Certification:TUV CE
3.Monocystalline Silicon
4.MOQ:1000 PCS

About GH Solar



Our company has produced solar panel for many years, with reliable quality and very competitive price; we have exported products to many countries. And we also have the office and warehouse in Pakistan (Karachi, Lahore and Islamabad), our company also prepare to open the India office and warehouse.i think this year will be finished.



Welcome to visit our website: ; , any interests, pls feel free to contact with me, i will be happy to service with you.





Company Zhejiang Ganghang Solar Technology CO.,LTD
Address No.658,Jianguo North Road,Hangzhou,Zhejiang,China P.C.:310004
Website
Contact person Jessie
Fax 86-0571-85273827
Tel 86-0571-88135952
Skype jessie19890417





Product Info



Model GHM-290
Pmax 290W
power tolerance: ±3%
Vmp 36V
Imp 2.55A
Voc 43.2V
Isc 3.06A
Pcs 72(8*9)
Cell Type 125*125 monocrystalline solar cell
Size 1956*992*50
Net weight 11.5kg
STC 1000W/m2,AM 1.5,25oC
Warranty 3 year warranty for products,10 years for 90% power ,25 years for 80% power
Accessory 3.2mm thick tempered glass,aluminium frame
Others There are drainage holes on the Border components, eliminating the framework of deformation caused by rain or snow accumulated in the framework



Our products have got the certificates of IEC, TUV, UL, CE, PV CYCLE membership and etc.

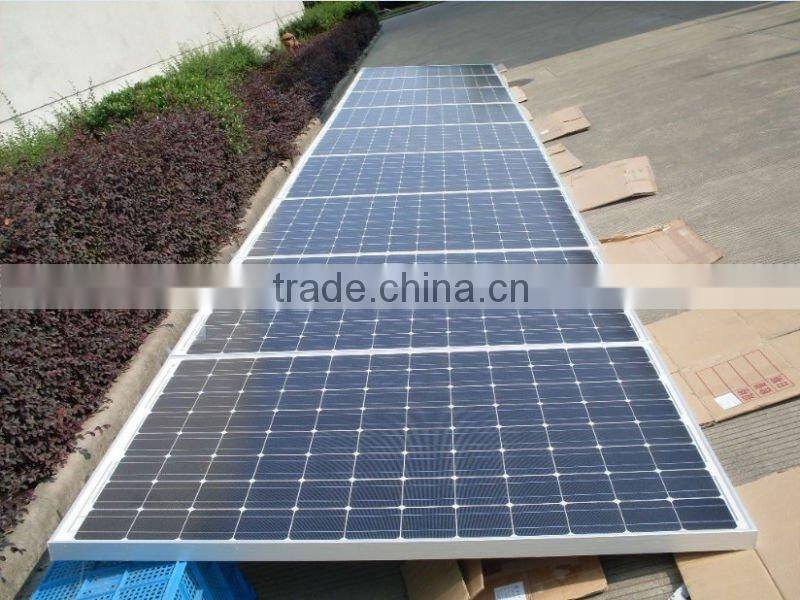

Monocrystalline 290W Solar modules GH energy



Monocrystalline 290W Solar modules GH energyMonocrystalline 290W Solar modules GH energyMonocrystalline 290W Solar modules GH energy



Specification of module

Model

TECHNICAL

SIZE(mm)

QTY IN CONTAINER

REMARKS

Wp

Vmp

Imp

Voc

Isc

Length

Width

Thickness

Weight(kg)

20’

40’

40HQ

GH005-M08

5

16.8

0.30

21.0

0.33

306

218

30

1.0







Cutting cell or Completed cell

GH010-M08

10

16.8

0.60

21.0

0.66

337

289

30

1.5

5186

10736

12550

GH020-M08

20

16.8

1.19

21.0

0.32

636

283

30

2.2

2824

5846

6834

GH040-M08

40

17.2

2.33

21.6

2.64

618

539

30

4.3

1626

3366

3934

Cutting cell or Completed cell

GH050-M08

50

17.2

2.9

21.6

3.30

767

539

35

4.8

1490

3084

3608

GH060-M08

60

17.2

3.49

21.6

3.96

732

658

35

3.4

1174

2430

2842

GH080-M08

80

17.2

4.65

21.6

5.28

1196

534

35

8.0

860

1780

2082

36pcs 5” cell

GH100-M08

100

17.2

5.80

21.6

6.60

1200

680

35

13.0

466

964

1128

6” Cutting cell

GH120-M08

120

17.2

6.98

21.6

7.92

1416

680

35

13.0

466

964

1128

36pcs 5” cell

GH180-P06

180

28.6

6.29

36.2

7.10



1590



960



50



18



56pcs 6” cell

GH200-P06

200

28.6

6.98

36.2

7.90

GH240-P06

240

34.4

6.98

43.4

7.90

1880

960

50

22







72pcs 6” cell

GH280-M05

280

36.1

7.78

44.1

8.80

1880

960

50

22







72pcs 6” cell cell
