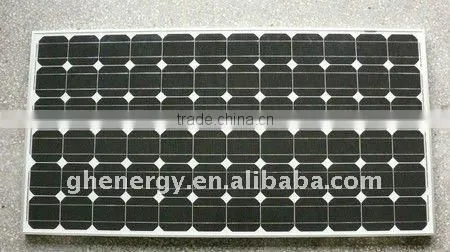

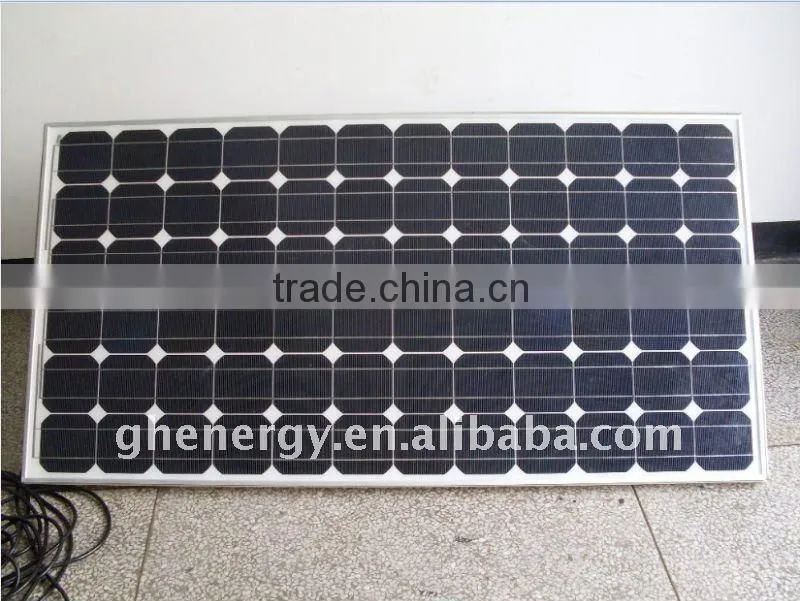

180W solar panels for home Solar modules Monocrystalline GH energy

FOB Price

USD $0.49 - $0.78 / Piece

1000 Pieces(Min.Order)

Supply Ability 100000 Watt / Watts per Month
Port Ningbo or ShangHai
Payment Terms:T/T Credit Card

Request Sample Customized Request Download Product Catalog

Contact Now

Get lowest price Inquiry Basket

Product Details

Place of Origin:	Zhejiang, China	Brand Name:	GH Solar Energy	Model Number:	GHM-180
Material:	Monocrystalline Silicon	Size:	158080835mm	Number of Cells:	72pcs
Max. Power:	180W

Product Description

Specifications

1.Solar panel:180W
2.Certification:TUV IEC CE
3.Monocystalline Silicon
4.MOQ:1000 PCS

About GH Solar

Our company has produced solar panel for many years, with reliable quality and very competitive price; we have exported products to many countries. And we also have the office and warehouse in Pakistan (Karachi, Lahore and Islamabad), our company also prepare to open the India office and warehouse.i think this year will be finished.

Welcome to visit our website: ; , any interests, pls feel free to contact with me, i will be happy to service with you.

Company	Zhejiang Ganghang Solar Technology CO.,LTD
Address	No.658,Jianguo North Road,Hangzhou,Zhejiang,China P.C.:310004
Website
Contact person	Jessie
Fax	86-0571-85273827
Tel	86-0571-88135952
Skype	jessie.ghsolar

Product Info

Model	GHM-180
Pmax	180W
power tolerance:	±3%
Vmp	36.0V
Imp	4.09A
Voc	44.0V
Isc	5.00A
Pcs	72(6*12)
Cell Type	125*125 monocrystalline solar cell
Size	1500X950 x 50
Net weight	12.5kg
STC	1000W/m2,AM 1.5,25oC
Warranty	3 year warranty for products,10 years for 90% power ,25 years for 80% power
Accessory	3.2mm thick tempered glass,aluminium frame
Others	There are drainage holes on the Border components, eliminating the framework of deformation caused by rain or snow accumulated in the framework

Specification of module
Model	TECHNICAL					SIZE(mm)				QTY IN CONTAINER			REMARKS
Model	Wp	Vmp	Imp	Voc	Isc	Length	Width	Thickness	Weight(kg)	20’	40’	40HQ	REMARKS
GH005-M08	5	16.8	0.30	21.0	0.33	306	218	30	1.0				Cutting cell or Completed cell
GH010-M08	10	16.8	0.60	21.0	0.66	337	289	30	1.5	5186	10736	12550
GH020-M08	20	16.8	1.19	21.0	0.32	636	283	30	2.2	2824	5846	6834
GH040-M08	40	17.2	2.33	21.6	2.64	618	539	30	4.3	1626	3366	3934	Cutting cell or Completed cell
GH050-M08	50	17.2	2.9	21.6	3.30	767	539	35	4.8	1490	3084	3608
GH060-M08	60	17.2	3.49	21.6	3.96	732	658	35	3.4	1174	2430	2842
GH080-M08	80	17.2	4.65	21.6	5.28	1196	534	35	8.0	860	1780	2082	36pcs 5” cell
GH100-M08	100	17.2	5.80	21.6	6.60	1200	680	35	13.0	466	964	1128	6” Cutting cell
GH120-M08	120	17.2	6.98	21.6	7.92	1416	680	35	13.0	466	964	1128	36pcs 5” cell
GH180-P06	180	28.6	6.29	36.2	7.10	1590	960	50	18				56pcs 6” cell
GH200-P06	200	28.6	6.98	36.2	7.90	1590	960	50	18				56pcs 6” cell
GH240-P06	240	34.4	6.98	43.4	7.90	1880	960	50	22				72pcs 6” cell
GH280-M05	280	36.1	7.78	44.1	8.80	1880	960	50	22				72pcs 6” cell cell
