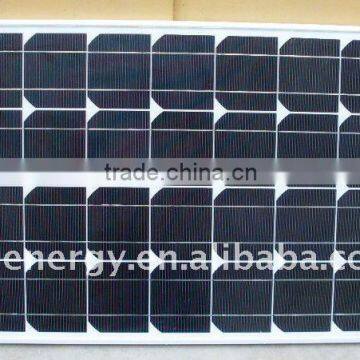

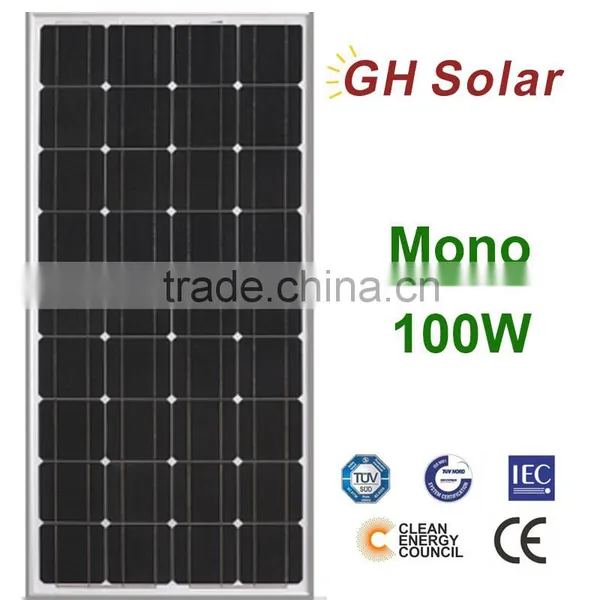

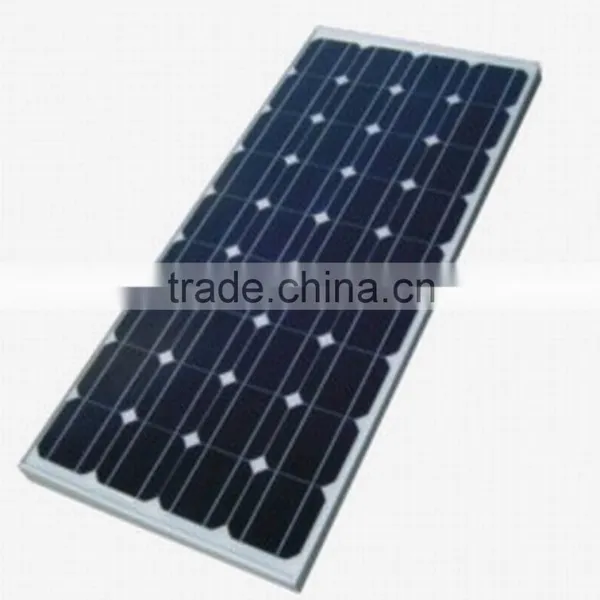

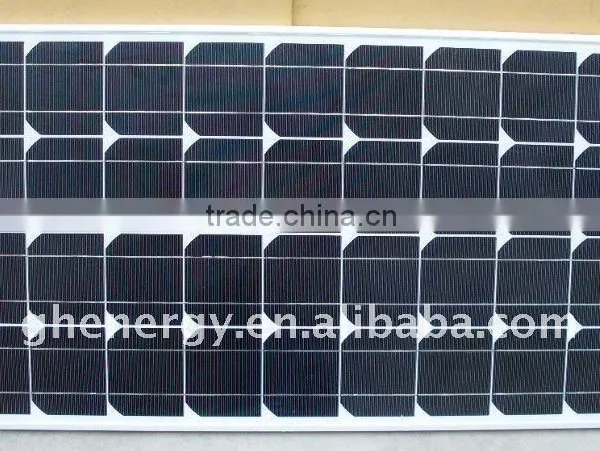

Custom Shaped Solar Panels

Custom Shaped Solar Panels thumbnail-1
Custom Shaped Solar Panels thumbnail-2
Custom Shaped Solar Panels thumbnail-3
Custom Shaped Solar Panels thumbnail-4
Custom Shaped Solar Panels thumbnail-5
Custom Shaped Solar Panels thumbnail-6
Custom Shaped Solar Panels photo-1
Custom Shaped Solar Panels photo-2
Custom Shaped Solar Panels photo-3
Custom Shaped Solar Panels photo-4
Custom Shaped Solar Panels photo-5

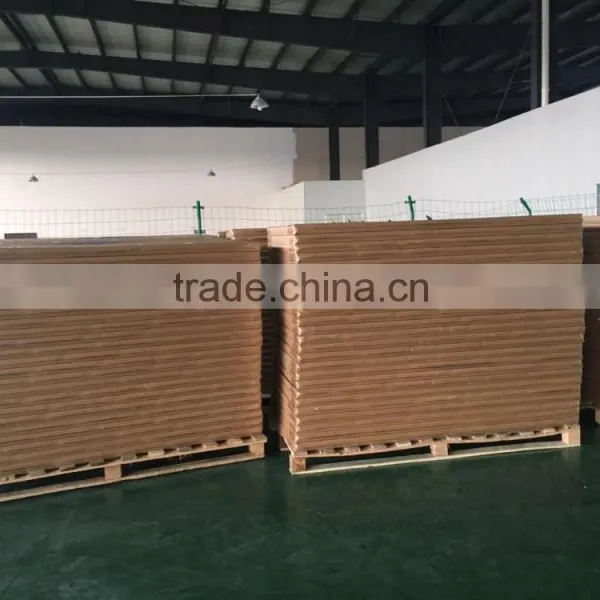

Custom Shaped Solar Panels photo-6
US$ 0.46 - 0.69 MOQ: 1000 Watts
Key Specifications
Get Latest Price
Place of Origin:
Zhejiang, China
Brand Name:
GH Solar Energy
Model Number:
GHM-100
Contact Supplier Request Quote Chat Now
Zhejiang Ganghang Solar Technology Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Ningbo or ShangHai
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Zhejiang, China
Brand Name GH Solar Energy
Model Number GHM-100
Material Monocrystalline Silicon
Size 1200*540*30mm
Number of Cells 36pcs
Max. Power 100W
Product Description

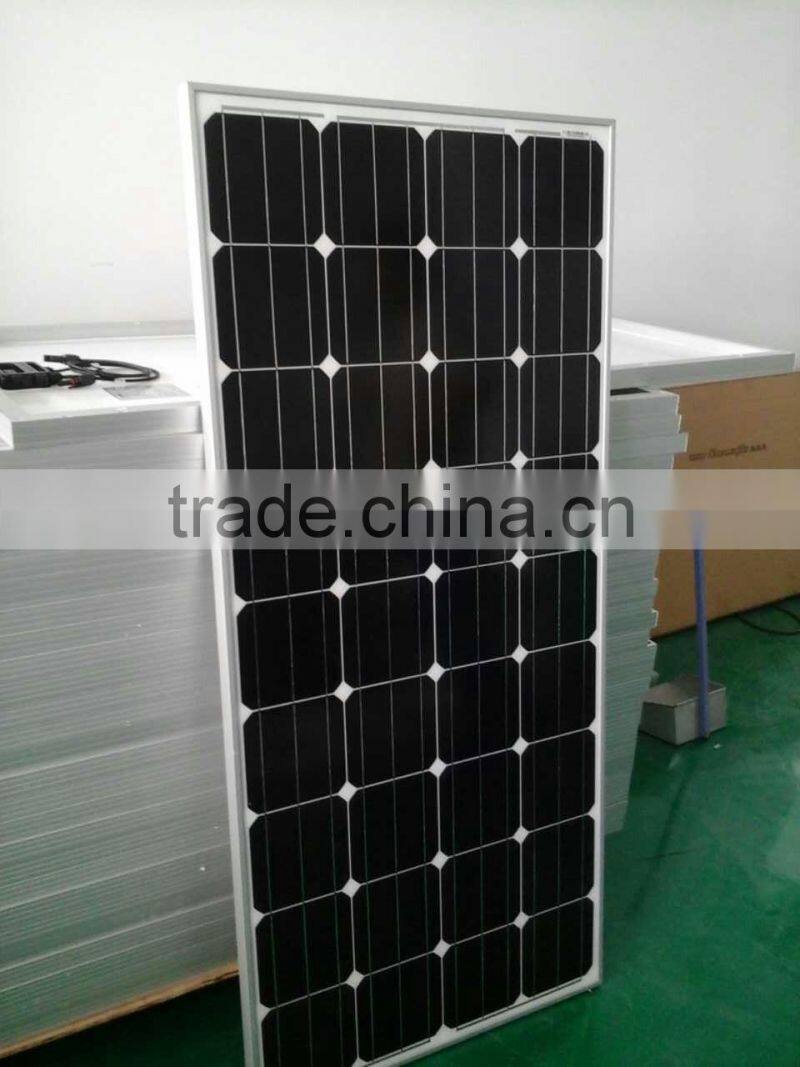

custom shaped solar panels

custom shaped solar panels

Solar panel

Our Solar Panels are A GRADE and are EURO, TUV, CE, IEC & NZ Certified.

photovoltaic solar panel

They are made of Crystalline Photovoltaic cells and Aluminum framed.High efficiency and A GRADE quality

Full EURO, TUV, CE, IEC & NZ certification



The structure of solar panel

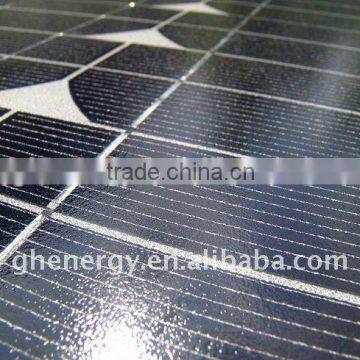

solar panel ---- Cells

The high-efficiency of mono and poly solar cells ensure adequate power for solar panels.

solar panel ---- Glass

Low iron tempered glass, 3.2mm thickness with high reflectivity.

solar panel ---- EVA

Higher transmission rate, antioxidant capacity and temperature resistance, no expansion or contraction.

solar panel ---- Back film

Increase efficiency of solar modules sightly and reduce solar panel’s temperature. Aging resistance, corrosion resistance and airtight.

solar panel ---- Frame

Using the framework of the anodized aluminum frame with high intensity, mechanical shock resistance capability.







custom shaped solar panels



Technology Data

custom shaped solar panels

Model Power Best Working
Voltage(V)		 Best Operating Current(A) Open-circuit Voltage(V) Short-circuit Current(A) Number of Cell(Pcs) Dimension(mm)
Mono Solar Panels 3W 3.00 9.00 0.33 10.44 0.36 18 185*185*17
Mono Solar Panels 5W 5.00 9.01 0.55 10.45 0.59 18 250*185*17
Mono Solar Panels 10W 10.00 17.92 0.56 20.79 0.60 36 255*350*17
Mono Solar Panels 15W 15.00 18.00 0.83 20.88 0.89 36 360*350*17
Mono Solar Panels 20W 20.00 18.01 1.11 21.42 1.31 36 360*450*25
Mono Solar Panels 25W 25.00 18.00 1.39 21.80 1.63 36 360*490*25
Mono Solar Panels 30W 30.00 17.95 1.67 21.72 1.97 36 545*514*25
Mono Solar Panels 40W 40.00 17.95 2.23 21.65 2.62 36 420*670*30
Mono Solar Panels 50W 50.00 18.00 2.78 21.72 3.27 36 540*670*30
Mono Solar Panels 60W 60.00 18.10 3.31 21.68 3.90 36 630*670*30
Mono Solar Panels 70W 70.00 18.00 3.89 21.24 4.20 36 780*670*30
Mono Solar Panels 80W 80.00 18.00 4.44 21.24 5.23 36 780*670*30
Mono Solar Panels 90W 90.00 18.15 4.96 21.42 5.83 36 906*670*30
Mono Solar Panels 90W 90.00 18.15 4.96 21.42 5.83 36 1200*540*30
Mono Solar Panels 100W 100.00 18.25 5.48 21.54 6.45 36 1200*540*30
Mono Solar Panels 100W 100.00 18.25 5.48 21.54 6.45 36 1020*670*30
Mono Solar Panels 110W 110.00 18.00 6.11 21.24 7.19 36 1120*670*30
Mono Solar Panels 130W 130.00 17.20 7.56 21.24 8.50 36 1240*670*30
Mono Solar Panels 140W 140.00 18.00 7.80 22.30 8.67 36 1480*670*35
Mono Solar Panels 150W 150.00 18.00 8.35 22.20 8.85 36 1480*670*35
Mono Solar Panels160W 160.00 18.20 8.79 22.60 9.23 36 1480*670*35



Certifications

custom shaped solar panels

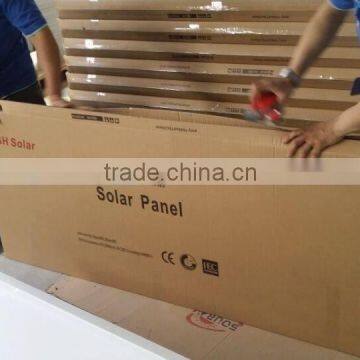

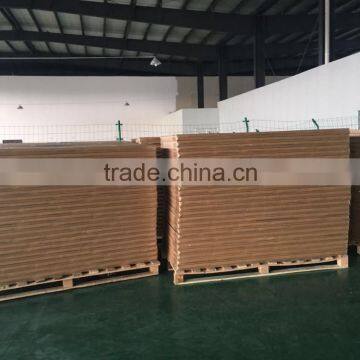

Packaging & Shipping

custom shaped solar panels

u Normally packing: 1pc/2pcs/3pcs/10pcs/20pcs per carton

u Individual packing requirement is acceptable

Company Information

custom shaped solar panels

FAQ

custom shaped solar panels

Our Services

custom shaped solar panels
