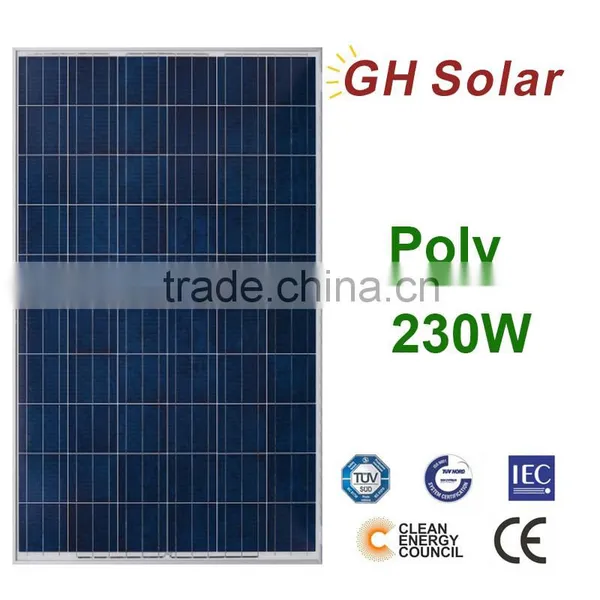

230w Solar Plate Price photo-1

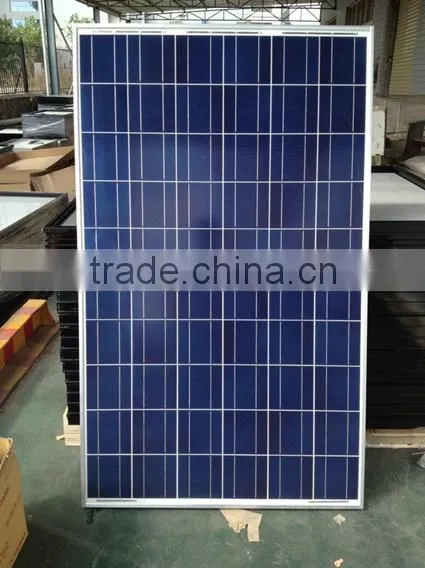

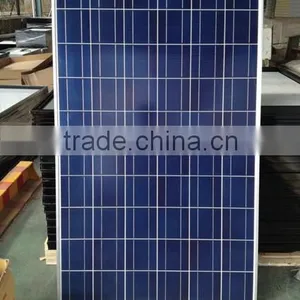

230w Solar Plate Price photo-2

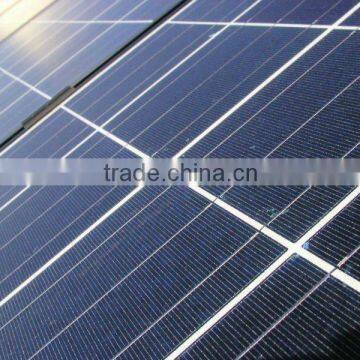

230w Solar Plate Price photo-3
230w Solar Plate Price photo-4

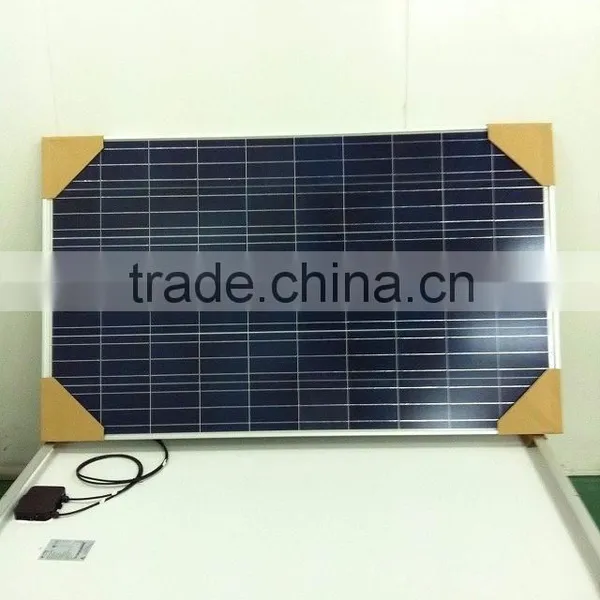

230w Solar Plate Price photo-5

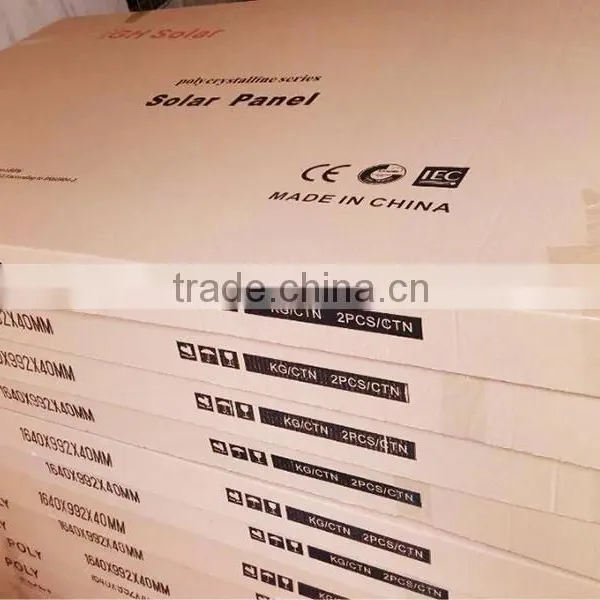

230w Solar Plate Price photo-6
US$ 0.5 - 0.7 MOQ: 1000 Watts
Key Specifications
Get Latest Price
Place of Origin:
Zhejiang, China
Brand Name:
GH Solar Energy
Model Number:
GHP-230
Payment & Shipping
Payment Methods:
Port of Shipment:
Ningbo or ShangHai port
Delivery Detail:
Delivery time depends on order quantity.
Place of Origin Zhejiang, China
Brand Name GH Solar Energy
Model Number GHP-230
Material Polycrystalline Silicon
Size 1650*990*35mm
Number of Cells 60pcs
Max. Power 230W
Product Description

230w solar plate price

230w solar plate price

Solar panel

Our Solar Panels are A GRADE and are EURO, TUV, CE, IEC & NZ Certified.

photovoltaic solar panel

They are made of Crystalline Photovoltaic cells and Aluminum framed.High efficiency and A GRADE quality

Full EURO, TUV, CE, IEC & NZ certification



The structure of solar panel



solar panel ---- Cells

The high-efficiency of mono and poly solar cells ensure adequate power for solar panels.

solar panel ---- Glass

Low iron tempered glass, 3.2mm thickness with high reflectivity.

solar panel ---- EVA

Higher transmission rate, antioxidant capacity and temperature resistance, no expansion or contraction.

solar panel ---- Back film

Increase efficiency of solar modules sightly and reduce solar panel’s temperature. Aging resistance, corrosion resistance and airtight.

solar panel ---- Frame

Using the framework of the anodized aluminum frame with high intensity, mechanical shock resistance capability.





Technology Data

230w solar plate price

Model Power

Best Working

 Voltage
(V)

Best Operating

 Current(A)

Open -circuit

 Voltage(V)

Short-circuit

 Current(A)

Number of

Cell
(Pcs)

Dimension
(mm)
Poly Solar Panels GH170P-48 170.00  24.00  7.08  27.50  7.58  48  1320*992*35
Poly Solar Panels GH180P-48 180.00  24.01  7.50  27.70  8.03  48  1320*992*35
Poly Solar Panels GH190P-48 190.00  24.02  7.92  27.80  8.31  48  1320*992*35
Poly Solar Panels GH200P-48 200.00  24.20  8.27  28.10  8.68  48  1320*992*35
Poly Solar Panels GH210P-48 210.00  24.40  8.61  28.30  9.04  48  1320*992*35
Poly Solar Panels GH220P-48 220.00  24.60  8.94  28.50  9.39  48  1320*992*35
Poly Solar Panels GH210P-54 210.00  27.00  7.78  31.29  8.32  54  1480*992*35
Poly Solar Panels GH220P-54 220.00  27.01  8.15  31.30  8.55  54  1480*992*35
Poly Solar Panels GH230P-54 230.00  27.10  8.49  31.40  8.92  54  1480*992*35
Poly Solar Panels GH240P-54 240.00  27.30  8.79  31.70  9.23  54  1480*992*35
Poly Solar Panels GH250P-54 250.00  27.60  9.06  32.10  9.51  54  1480*992*35
Poly Solar Panels GH230P-60 230.00  30.01  7.66  36.60  8.20  60  1640*992*40
Poly Solar Panels GH235P-60 235.00  30.10  7.81  37.00  8.25  60  1640*992*40
Poly Solar Panels GH240P-60 240.00  30.20  7.96  37.20  8.29  60  1640*992*40
Poly Solar Panels GH245P-60 245.00  30.31  8.08  37.40  8.34  60  1640*992*40
Poly Solar Panels GH250P-60 250.00  30.50  8.19  37.20  8.38  60  1640*992*40
Poly Solar Panels GH260P-60 260.00  30.80  8.44  37.70  8.38  60  1640*992*40
Poly Solar Panels GH270P-60 270.00  31.00  8.71  38.00  9.12  60  1640*992*40
Poly Solar Panels GH280P-72 280.00  35.28  7.90  44.75  8.45  72  1956*992*40
Poly Solar Panels GH290P-72 290.00  36.50  7.95  44.75  8.45  72  1956*992*40
Poly Solar Panels GH295P-72 295.00  36.50  8.00  44.75  8.50  72  1956*992*40
Poly Solar Panels GH300P-72 300.00  36.80  8.15  45.20  8.55  72  1956*992*40
Poly Solar Panels GH305P-72 305.00  37.00  8.24  45.20  8.55  72  1956*992*40
Poly Solar Panels GH310P-72 310.00  37.50  8.26  45.20  8.55  72  1956*992*40





Certifications

230w solar plate price

Packaging & Shipping

230w solar plate price

u Normally packing: 1pc/2pcs/3pcs/10pcs/20pcs per carton

Individual packing requirement is acceptable
