4.163w Solar Panels Cells for Made of Solar Modules Install Everywhere

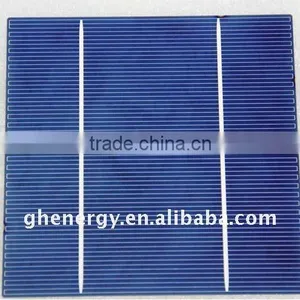

4.163w Solar Panels Cells for Made of Solar Modules Install Everywhere thumbnail-1
4.163w Solar Panels Cells for Made of Solar Modules Install Everywhere photo-1
US$ 0.3 - 0.8 MOQ: 1000 Watts
Key Specifications
Get Latest Price
Place of Origin:
Zhejiang, China
Brand Name:
Ganghang
Model Number:
solar cell-012
Contact Supplier Request Quote Chat Now
Zhejiang Ganghang Solar Technology Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai/Ningbo
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Zhejiang, China
Brand Name Ganghang
Model Number solar cell-012
Material Polycrystalline Silicon
Size 156*156mm
Number of Cells 1
Max. Power 4.163W
Product Description

4.163w solar panels cells for made of solar modules install everywhere

4.163w solar panels cells for made of solar modules install everywhere

Solar panel

Our Solar Panels are A GRADE and are EURO, TUV, CE, IEC & NZ Certified.

photovoltaic solar panel

They are made of Crystalline Photovoltaic cells and Aluminum framed.High efficiency and A GRADE quality

Full EURO, TUV, CE, IEC & NZ certification



The structure of solar panel



solar panel ---- Cells

The high-efficiency of mono and poly solar cells ensure adequate power for solar panels.

solar panel ---- Glass

Low iron tempered glass, 3.2mm thickness with high reflectivity.

solar panel ---- EVA

Higher transmission rate, antioxidant capacity and temperature resistance, no expansion or contraction.

solar panel ---- Back film

Increase efficiency of solar modules sightly and reduce solar panel’s temperature. Aging resistance, corrosion resistance and airtight.

solar panel ---- Frame

Using the framework of the anodized aluminum frame with high intensity, mechanical shock resistance capability.





Specification of  the solar panels cells as below:

  • Main products: solar cell, solar panel, solar power system etc.
  • MOQ: 100pcs(sample order and trial order are welcomed)
  • Warranty: 6month-1year for solar cells, 5years product warranty,10years 90% and 20years 85% for solar panels, 1year for solar systems
  • OEM order: welcomed
  • Certificate: CE,TUV, UL etc.
  • Package: carton, wooden case or as your spec.
  • Delivery term: about 30days by sea
  • Widely used for electricity, home, industry, communication, navigation, irrigation, PV house and remote power requirements etc.

Parameter:

1.GHC-125M*165:
Format: 125mm*125mm±0.5mm,diagonal:165mm, Thickness: 200um±20um
Efficiency(%) Pmax(W) Vmp(V) Imp(A) Voc(V) Isc(A)
18.50 2.86 0.529 5.410 0.638 5.673
18.25 2.82 0.527 5.350 0.636 5.648
18.00 2.78 0.525 5.295 0.634 5.621
17.75 2.74 0.522 5.245 0.629 5.539
17.50 2.71 0.521 5.212 0.627 5.569
17.25 2.68 0.518 5.169 0.626 5.536
17.00 2.64 0.515 5.129 0.624 5.525
16.75 2.60 0.511 5.085 0.622 5.511
16.50 2.56 0.519 5.030 0.621 5.494
16.25 2.53 0.506 4.988 0.620 5.542
16.00 2.48 0.500 4.966 0.618 5.515
15.25 2.36 0.500 4.720 0.614 5.497
2.GHC-125M*150:
Format: 125mm*125mm±0.5mm,diagonal:150mm,  Thickness: 200um±20um
Efficiency(%) Pmax(W) Vmp(V) Imp(A) Voc(V) Isc(A)
18.50 2.73 0.532 5.132 0.634 5.382
18.25 2.70 0.530 5.094 0.632 5.365
18.00 2.66 0.528 5.038 0.630 5.348
17.75 2.62 0.525 4.990 0.628 5.330
17.50 2.59 0.523 4.952 0.627 5.318
17.25 2.57 0.520 4.945 0.626 5.301
17.00 2.53 0.517 4.899 0.625 5.282
16.75 2.49 0.514 4.856 0.623 5.277
16.50 2.46 0.510 4.821 0.622 5.275
16.25 2.42 0.508 4.770 0.620 5.251
16.00 2.38 0.505 4.724 0.618 5.245
15.25 2.25 0.500 4.550 0.610 5.104
3.GHC-156M:
Format: 156mm*156mm±0.5mm, Thickness: 200um±20um
Efficiency(%) Pmax(W) Vmp(V) Imp(A) Voc(V) Isc(A)
18.50 4.398 0.525 8.337 0.625 9.142
18.25 4.338 0.523 8.294 0.623 9.080
18.00 4.279 0.520 8.229 0.621 9.011
17.75 4.222 0.516 8.178 0.619 8.942
17.50 4.163 0.512 8.131 0.617 8.869
17.25 4.104 0.508 8.077 0.615 8.803
17.00 4.044 0.503 8.038 0.613 8.763
16.75 3.990 0.501 7.973 0.612 8.698
16.50 3.935 0.499 7.889 0.611 8.620
16.25 3.877 0.497 7.800 0.611 8.545
16.00 3.818 0.494 7.725 0.610 8.494
15.75 3.760 0.492 7.647 0.610 8.444
15.50 3.700 0.489 7.565 0.610 8.398
15.25 3.641 0.486 7.490 0.609 8.362
15.00 3.581 0.483 7.419 0.608 8.338
4.GHC-156P:
Format: 156mm*156mm±0.5mm,  Thickness: 200um±20um
Efficiency(%) Pmax(W) Vmp(V) Imp(A) Voc(V) Isc(A)
17.00 4.13 0.532 7.800 0.635 8.531
16.75 4.05 0.532 7.610 0.631 8.498
16.50 3.99 0.529 7.545 0.629 8.359
16.25 3.94 0.526 7.490 0.626 8.117
16.00 3.89 0.523 7.438 0.624 7.982
15.75 3.83 0.519 7.379 0.620 7.916
15.50 3.77 0.515 7.323 0.616 7.868
15.25 3.72 0.512 7.253 0.613 7.813
15.00 3.66 0.509 7.189 0.610 7.764
14.75 3.60 0.505 7.139 0.606 7.726
14.50 3.54 0.500 7.088 0.603 7.685
14.25 3.48 0.495 7.029 0.600 7.637
14.00 3.42 0.488 7.015 0.596 7.631

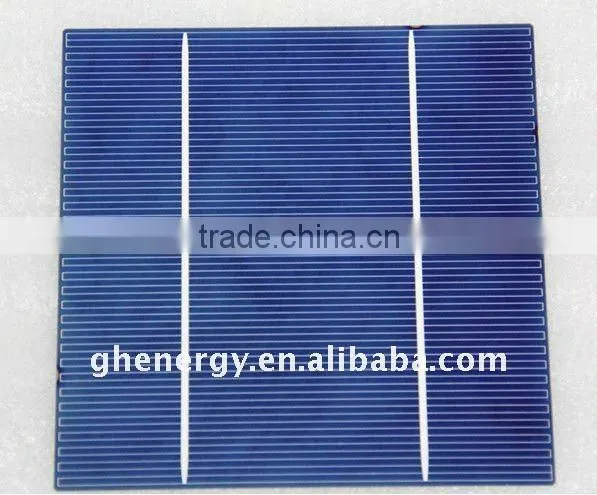

Image of the solar panels cells for your reference:

4.163w solar panels cells for made of solar modules install everywhere



Technology Data

4.163w solar panels cells for made of solar modules install everywhere

Certifications

4.163w solar panels cells for made of solar modules install everywhere

Packaging & Shipping

4.163w solar panels cells for made of solar modules install everywhere

u Normally packing: 1pc/2pcs/3pcs/10pcs/20pcs per carton

u Individual packing requirement is acceptable

Company Information

4.163w solar panels cells for made of solar modules install everywhere

FAQ

4.163w solar panels cells for made of solar modules install everywhere

Our Services

4.163w solar panels cells for made of solar modules install everywhere
