High efficiency 2.46w kit solar photovoltaic cell,panel and power system

FOB Price

USD $0.3 - $1.5 / Piece

1000 Pieces(Min.Order)

Supply Ability 500000 Watt / Watts per Month
Port Ningbo/Shanghai
Payment Terms:T/T Credit Card PayPal

Request Sample Customized Request Download Product Catalog

Contact Now

Get lowest price Inquiry Basket

Product Details

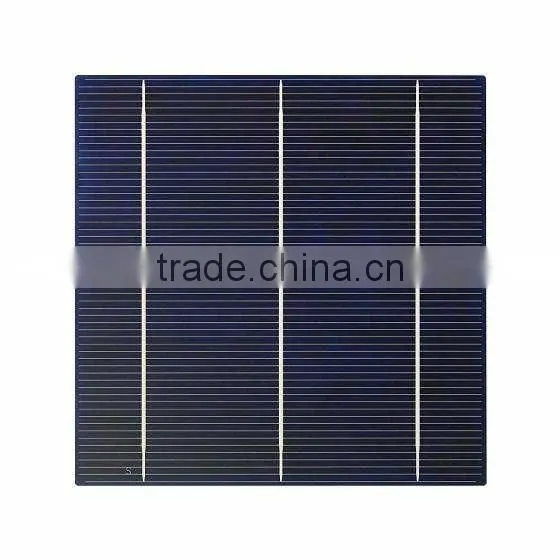

Place of Origin:	Zhejiang, China	Brand Name:	Ganghang	Model Number:	GH-C-08P
Material:	Polycrystalline Silicon	Size:	125*125mm	Number of Cells:	1
Max. Power:	2.46W

Product Description

The more information of the solar photovoltaic as below:

Main products: solar cell, solar panel, solar power system etc.
MOQ: 100pcs(sample order and trial order are welcomed)
Warranty: 6month-1year for solar cells, 5years product warranty,10years 90% and 20years 85% for solar panels, 1year for solar systems
OEM order: welcomed
Certificate: CE,TUV, UL etc.
Package: carton, wooden case or as your spec.
Delivery term: about 30days by sea
Widely used for electricity, home, industry, communication, navigation, irrigation, PV house and remote power requirements etc.

1.GHC-125M*165:
Format: 125mm*125mm±0.5mm,diagonal:165mm, Thickness: 200um±20um
Efficiency(%)	Pmax(W)	Vmp(V)	Imp(A)	Voc(V)	Isc(A)
18.50	2.86	0.529	5.410	0.638	5.673
18.25	2.82	0.527	5.350	0.636	5.648
18.00	2.78	0.525	5.295	0.634	5.621
17.75	2.74	0.522	5.245	0.629	5.539
17.50	2.71	0.521	5.212	0.627	5.569
17.25	2.68	0.518	5.169	0.626	5.536
17.00	2.64	0.515	5.129	0.624	5.525
16.75	2.60	0.511	5.085	0.622	5.511
16.50	2.56	0.519	5.030	0.621	5.494
16.25	2.53	0.506	4.988	0.620	5.542
16.00	2.48	0.500	4.966	0.618	5.515
15.25	2.36	0.500	4.720	0.614	5.497

2.GHC-125M*150:
Format: 125mm*125mm±0.5mm,diagonal:150mm, Thickness: 200um±20um
Efficiency(%)	Pmax(W)	Vmp(V)	Imp(A)	Voc(V)	Isc(A)
18.50	2.73	0.532	5.132	0.634	5.382
18.25	2.70	0.530	5.094	0.632	5.365
18.00	2.66	0.528	5.038	0.630	5.348
17.75	2.62	0.525	4.990	0.628	5.330
17.50	2.59	0.523	4.952	0.627	5.318
17.25	2.57	0.520	4.945	0.626	5.301
17.00	2.53	0.517	4.899	0.625	5.282
16.75	2.49	0.514	4.856	0.623	5.277
16.50	2.46	0.510	4.821	0.622	5.275
16.25	2.42	0.508	4.770	0.620	5.251
16.00	2.38	0.505	4.724	0.618	5.245
15.25	2.25	0.500	4.550	0.610	5.104
3.GHC-156M:
Format: 156mm*156mm±0.5mm, Thickness: 200um±20um
Efficiency(%)	Pmax(W)	Vmp(V)	Imp(A)	Voc(V)	Isc(A)
18.50	4.398	0.525	8.337	0.625	9.142
18.25	4.338	0.523	8.294	0.623	9.080
18.00	4.279	0.520	8.229	0.621	9.011
17.75	4.222	0.516	8.178	0.619	8.942
17.50	4.163	0.512	8.131	0.617	8.869
17.25	4.104	0.508	8.077	0.615	8.803
17.00	4.044	0.503	8.038	0.613	8.763
16.75	3.990	0.501	7.973	0.612	8.698
16.50	3.935	0.499	7.889	0.611	8.620
16.25	3.877	0.497	7.800	0.611	8.545
16.00	3.818	0.494	7.725	0.610	8.494
15.75	3.760	0.492	7.647	0.610	8.444
15.50	3.700	0.489	7.565	0.610	8.398
15.25	3.641	0.486	7.490	0.609	8.362
15.00	3.581	0.483	7.419	0.608	8.338
4.GHC-156P:
Format: 156mm*156mm±0.5mm, Thickness: 200um±20um
Efficiency(%)	Pmax(W)	Vmp(V)	Imp(A)	Voc(V)	Isc(A)
17.00	4.13	0.532	7.800	0.635	8.531
16.75	4.05	0.532	7.610	0.631	8.498
16.50	3.99	0.529	7.545	0.629	8.359
16.25	3.94	0.526	7.490	0.626	8.117
16.00	3.89	0.523	7.438	0.624	7.982
15.75	3.83	0.519	7.379	0.620	7.916
15.50	3.77	0.515	7.323	0.616	7.868
15.25	3.72	0.512	7.253	0.613	7.813
15.00	3.66	0.509	7.189	0.610	7.764
14.75	3.60	0.505	7.139	0.606	7.726
14.50	3.54	0.500	7.088	0.603	7.685
14.25	3.48	0.495	7.029	0.600	7.637
14.00	3.42	0.488	7.015	0.596	7.631
