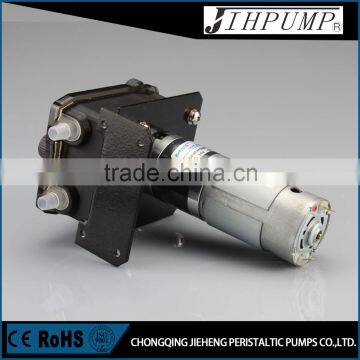

JIHPUMP Chemical Peristaltic Pump of Flow Rate 1760ml/min

Name: JIHPUMP Chemical Peristaltic Pump of Flow Rate 1760ml/min
Brand: JIHPUMP
Availability: InStock

FOB Price

USD $50 - $100 / Piece

1 Piece(Min.Order)

Supply Ability 5000 Piece / Pieces per Month
Port China port
Payment TermsT/T D/P D/A Credit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Chongqing, China	Brand Name	JIHPUMP
Model Number	304K	Theory	Rotary Pump
Structure	Other, Peristaltic Pump	Usage	Water
Power	Electric	Standard or Nonstandard	Standard
Fuel	Other, Electricity	Pressure	Low Pressure
Application	Metering

Product Description

JIHPUMP Chemical Peristaltic Pump of Flow Rate Less Than 1760ml/min

Application

Transport Detergent:Washing Machines,Dishwashers	Analytical Instruments:Analytical Instruments Injection
Printing Equipment:Delivery Ink	Food Machinery:Beverage Machine
Warewashing Equipment:Warewashing Equipment	Laundry Equipment:Laundry Equipment

Feature

1. Max Flow Rate up to 1500ml/min
2. uitable for 24#,35# tube,for inner diameter 6.4mm and 7.9mm
3. Easy to load the pump cover and tube
4. Can equipped with a fixed speed DC gear motor,DC planetary gear motor and stepper motor(Speed

adjstable).The stepper motor can meet the demand of motor long life low noise running
Crust Material:PC,PA66
Roller Material:Nylon+MoS2

Specification

Item	304K/ZLX (DC motor)		304K/ZL (DC motor)			304K/WTT (DC brushless planetary motor)	304K/BT (stepper motor)
Speed	150,300rpm		120r,135r,166rpm			150-290rpm	0.1~300r
Tube	Can be fitted with 24#(ID6.4mm,wall 2.4mm) and 35#(ID 7.9mm,wall 2.4mm)
Flow Rate	≤1760ml/min		≤900ml/min			469-1578ml/min	≤1760ml/min
Power	6-16W		6-16W			48W	30-50W
Power Type	DC planetary gear motor		DC gear motor			36 type DC brushless governing-speed motor	57 Stepper motor
Drive	DC speed control board can be equipped with fine-tune speed(PWM speed)					DC brushless planetary gear motor	Drive motor in optional,include Type A(Inner-velometer) and Type B(External-velometer)
Voltage	12V,24V		12V,24V			24V	6~36V
Weight	0.6KG		0.6KG			565g	0.8KG
Flow Rate (ml/min, Medium:Water)
Motor	DC planetary motor		DC motor			DC brushless planetary motor	Stepper motor
Speed	150rpm	300rpm	50rpm	120rpm	166rpm	150-290rpm	0-300rpm
24#(6.4×2.4)	670	1340	204	490	700	469-908	0-1000
35#(7.9×2.4)	880	1760	265	636	880	816-1578	0-1500

304K/ZLX Dimension

304K/ZL Dimension

304K/WTT Dimension

304K/BT Dimension
