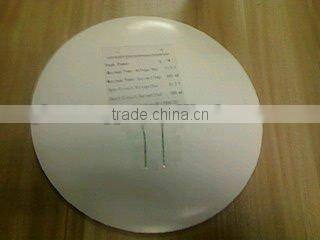

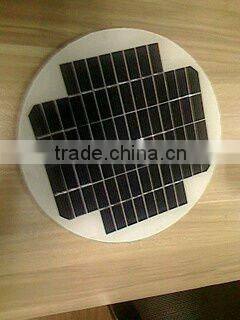

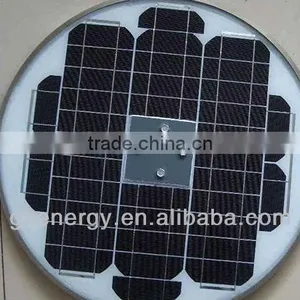

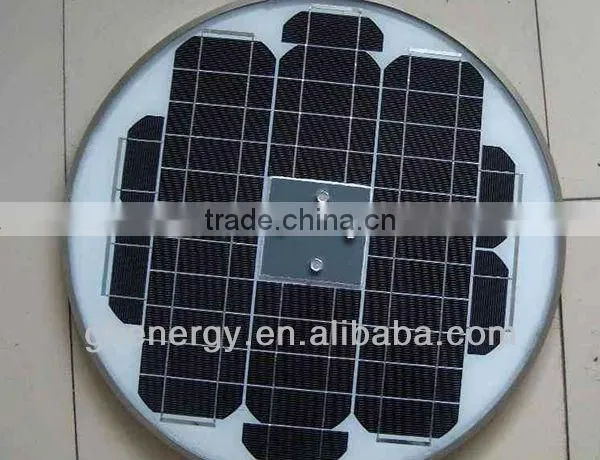

High Efficient Solar Panels Round Monocrystalline 15W

Name: High Efficient Solar Panels Round Monocrystalline 15W
Brand: GH Solar Energy
SKU: 130615969
Availability: InStock

US$ 0.69 - 0.72 MOQ: 1000 Pieces

Key Specifications

Place of Origin:

Zhejiang, China

Brand Name:

GH Solar Energy

Model Number:

GH-619

Zhejiang Ganghang Solar Technology Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Ningbo or ShangHai

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Zhejiang, China

Brand Name GH Solar Energy

Model Number GH-619

Material Monocrystalline Silicon

Size 360*290*23

Number of Cells 18

Max. Power 10W

Specifications

Solar modules
1.Solar panel:5W
2.Certification:TUV CE
3.Polycystalline Silicon
4.MOQ:1000 PCS

Solar modules

10W Monocrystalline Solar Module with 18pcs of poly solar cell,Pmax5W,Vmp17.2-21.7(V),Imp0.291A ,TUV CE

Model	GH-619
Pmax	5W
power tolerance:	±3%
Vmp	17.5V
Imp	0.571A
Voc	22.1V
Isc	0.616A
Pcs	18(2*9)
Cell Type	125*125 monocrystalline solar cell
Size	235
Net weight	1.6kg
STC	1000W/m2,AM 1.5,25oC
Warranty	3 year warranty for products,10 years for 90% power ,25 years for 80% power
Accessory	3.2mm thick tempered glass,aluminium frame
Others	There are drainage holes on the Border components, eliminating the framework of deformation caused by rain or snow accumulated in the framework

Our products have got the certificates of IEC, TUV, UL, CE, PV CYCLE membership and etc.

Specification of module
Model	TECHNICAL					SIZE(mm)				QTY IN CONTAINER			REMARKS
Model	Wp	Vmp	Imp	Voc	Isc	Length	Width	Thickness	Weight(kg)	20’	40’	40HQ	REMARKS
GH005-M08	5	16.8	0.30	21.0	0.33	306	218	30	1.0				Cutting cell or Completed cell
GH010-M08	10	16.8	0.60	21.0	0.66	337	289	30	1.5	5186	10736	12550
GH020-M08	20	16.8	1.19	21.0	0.32	636	283	30	2.2	2824	5846	6834
GH040-M08	40	17.2	2.33	21.6	2.64	618	539	30	4.3	1626	3366	3934	Cutting cell or Completed cell
GH050-M08	50	17.2	2.9	21.6	3.30	767	539	35	4.8	1490	3084	3608
GH060-M08	60	17.2	3.49	21.6	3.96	732	658	35	3.4	1174	2430	2842
GH080-M08	80	17.2	4.65	21.6	5.28	1196	534	35	8.0	860	1780	2082	36pcs 5” cell
GH100-M08	100	17.2	5.80	21.6	6.60	1200	680	35	13.0	466	964	1128	6” Cutting cell
GH120-M08	120	17.2	6.98	21.6	7.92	1416	680	35	13.0	466	964	1128	36pcs 5” cell
GH180-P06	180	28.6	6.29	36.2	7.10	1590	960	50	18				56pcs 6” cell
GH200-P06	200	28.6	6.98	36.2	7.90	1590	960	50	18				56pcs 6” cell
GH240-P06	240	34.4	6.98	43.4	7.90	1880	960	50	22				72pcs 6” cell
GH280-M05	280	36.1	7.78	44.1	8.80	1880	960	50	22				72pcs 6” cell cell
