JIHPUMP 304K DC Motor Beverage Machine Peristaltic Pump
US$ 50 - 100
MOQ: 1 Piece
Key Specifications
Get Latest Price
Place of Origin:
Chongqing, China
Brand Name:
JIHPUMP
Model Number:
304K
Payment & Shipping
Payment Methods:
Port of Shipment:
China port
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Tube 24# 35 Easy Install OEM Peristaltic Pump for DishwasherUS$ 50 - 100MOQ: 10 Pieces -
DC Motor Peristaltic Pump 203KA Used in Print Machine for Feed PumpUS$ 30 - 35MOQ: 10 Pieces
-
300 Rpm Easy Install OEM Peristaltic Pump for DishwasherUS$ 50 - 100MOQ: 10 Pieces
-
6 to 50W OEM Peristaltic Pump Quick Install Panel Type for Wash MachineUS$ 50 - 100MOQ: 10 Pieces
-
JIHPUMP Dispenser Peristaltic Pump of Flow Rate 1760ml/min With ControllerUS$ 50 - 100MOQ: 1 Piece
Place of Origin
Chongqing, China
Brand Name
JIHPUMP
Model Number
304K
Theory
Rotary Pump
Structure
Other, Peristaltic pump
Usage
Water
Power
Electric
Standard or Nonstandard
Standard
Fuel
Other, Electricity
Pressure
Low Pressure
Application
Metering
JIHPUMP 304K DC motor Beverage Machine Peristaltic Pump
Application
| Transport Detergent:Washing Machines,Dishwashers | Analytical Instruments:Analytical Instruments Injection |
| Printing Equipment:Delivery Ink | Food Machinery:Beverage Machine |
| Warewashing Equipment:Warewashing Equipment | Laundry Equipment:Laundry Equipment |
Feature
1. Max Flow Rate up to 1500ml/min
2. uitable for 24#,35# tube,for inner diameter 6.4mm and 7.9mm
3. Easy to load the pump cover and tube
4. Can equipped with a fixed speed DC gear motor,DC planetary gear motor and stepper motor(Speed
adjstable).The stepper motor can meet the demand of motor long life low noise running
Crust Material:PC,PA66
Roller Material:Nylon+MoS2
Specification
| Item |
304K/ZLX (DC motor) |
304K/ZL (DC motor) |
304K/WTT (DC brushless planetary motor) |
304K/BT (stepper motor) |
|||
| Speed | 150,300rpm | 120r,135r,166rpm | 150-290rpm | 0.1~300r | |||
| Picture | |
|
|
|
|||
| Tube | Can be fitted with 24#(ID6.4mm,wall 2.4mm) and 35#(ID 7.9mm,wall 2.4mm) | ||||||
| Flow Rate | ≤1760ml/min | ≤900ml/min | 469-1578ml/min | ≤1760ml/min | |||
| Power | 6-16W | 6-16W | 48W | 30-50W | |||
| Power Type | DC planetary gear motor | DC gear motor | 36 type DC brushless governing-speed motor | 57 Stepper motor | |||
| Drive | DC speed control board can be equipped with fine-tune speed(PWM speed) | DC brushless planetary gear motor | Drive motor in optional,include Type A(Inner-velometer) and Type B(External-velometer) | ||||
| Voltage | 12V,24V | 12V,24V | 24V | 6~36V | |||
| Weight | 0.6KG | 0.6KG | 565g | 0.8KG | |||
| Flow Rate (ml/min, Medium:Water) | |||||||
| Motor | DC planetary motor | DC motor | DC brushless planetary motor | Stepper motor | |||
| Speed | 150rpm | 300rpm | 50rpm | 120rpm | 166rpm | 150-290rpm | 0-300rpm |
| 24#(6.4×2.4) | 670 | 1340 | 204 | 490 | 700 | 469-908 | 0-1000 |
| 35#(7.9×2.4) | 880 | 1760 | 265 | 636 | 880 | 816-1578 | 0-1500 |

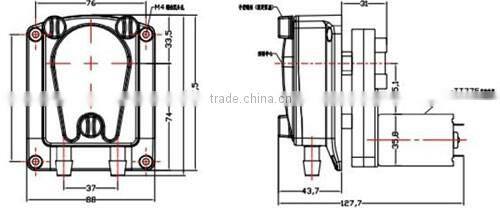

304K/ZLX Dimension

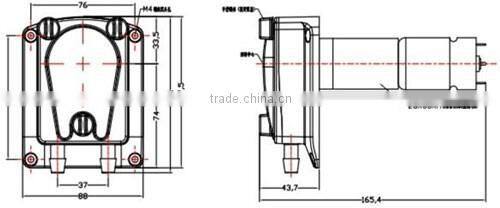

304K/ZL Dimension

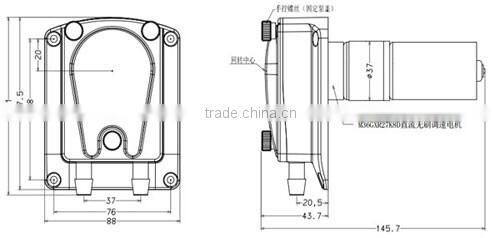

304K/WTT Dimension

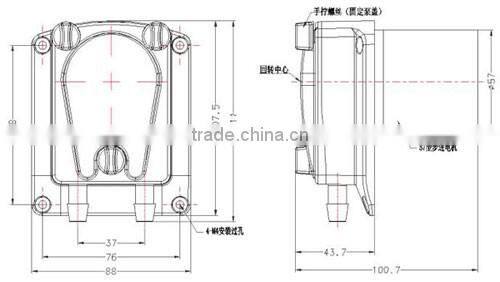

304K/BT Dimension
