Folding solar panel
100-160W/18V(50W/60W/80W*2pcs)Folding mono solar panel specifications
Parameters |
BL100M-12 |
BL120M-12 |
BL160M-12 |
Peak power Pm(W) |
100±3% |
120±3% |
160±3% |
Open circuit voltage Voc(V) |
21.6 |
21.6 |
21.6 |
Max. power voltage Vmp(V) |
18.0 |
18.0 |
18.0 |
Max. power current Imp(A) |
5.56 |
6.67 |
8.89 |
Short circuit current Isc(A) |
6.05 |
7.27 |
9.60 |
Solar cells Efficiency |
18.3% |
19.0% |
19.0% |
Model efficiency |
15.08% |
15.07% |
15.5% |
Folded Dimensions(L*W*T)/ Weight(kgs) |
100W :614*555*68mm/ 8.5 kgs 120W :794*520*68mm/ 9.8 kgs 160W :770*681*68mm/ 11.5 kgs |
||
No. of cells and connections |
36 series 2 in paraller |
||
Front cover(material/thickness) |
Low-iron temperd glass/3.2mm |
||
Encapsulant(material) |
Ethylene vinyl acetate(EVA) |
||
Frame(material/collor) |
Anodized aluminum alloy/silver |
||
Junction box protection degree |
≥IP65 |
||
Cable /Cable connector Model |
16 AWG *3M/ |
||
STC |
Irradiance:1000W/m2,Cell temperature:25℃,AM:1.5 |
||
Max. static load ,front(e. g .,snow/wind) |
2400Pa |
||
Max. static load ,back(e. g .,wind) |
2400Pa |
||
Max. hailstone impact (diameter/velocity) |
25mm/ 23m/s |
||
Max. over-current (A) |
10A |
||
Max. system voltage (V) |
1000V DC |
||
Application Class |
Class A |
||
NOCT |
48±2℃ |
||
Operating temperature limits |
-40℃- +85℃ |
||
Coefficient current TK |
0.1%/℃ |
||
Coefficient voltage TK |
-0.37%/℃ |
||
Coefficient power TK |
-0.45%/℃ |
||
Life |
≥25 years |
||
Warranty |
10 years 90%power,25 years80% power |
||
The solar system is a small AC power supply system which is designed for the farmers, out door camping, tourism, etc.
Appliances:
1) Providing power for lighting and entertainment in remote area, such as lights, fans, laptop, TV, etc.
2) Be used in emergency, such as family use, back-up power for office
3) Suitable for camping, adventure, exploration, road building and other fields of outdoors performance

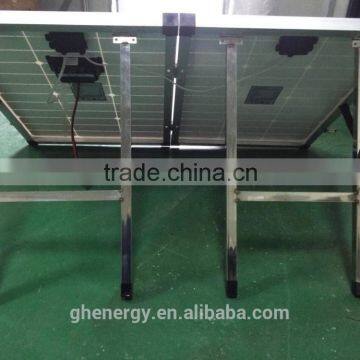

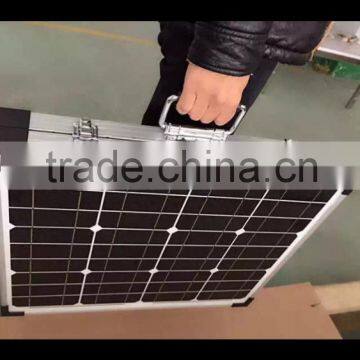

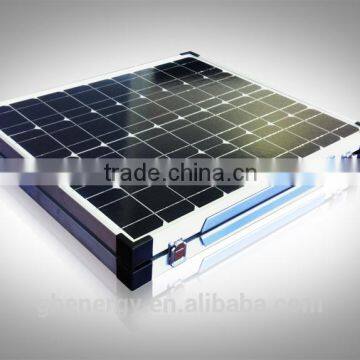

Photos:

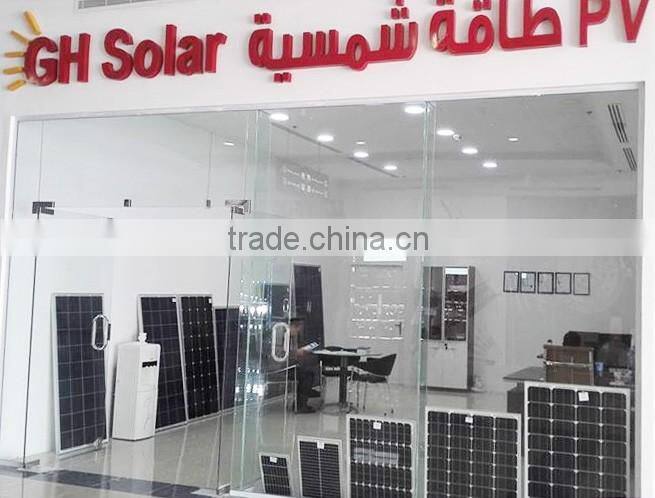

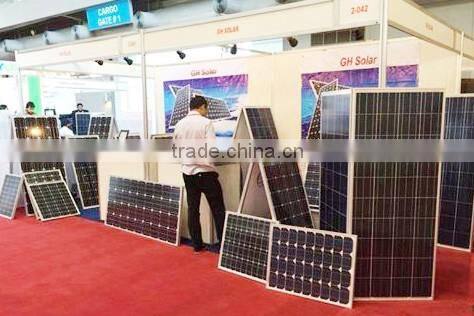

About GH SOLAR
Established in 2008, Zhejiang Ganghang Solar Technology Co., Ltd. is located in Zhejiang Province, China.
We are manufacturer
of solar products, mainly handling solar cell, solar panel and solar system. Ranging from 0.1W-320W,
we export solar panels
80MW yearly to more than 20 countries all over the world. With good quality, reasonable prices and stylish designs,
our products
are extensively used in daily life. We can also design and manufacture as per your customized requirements.
We have certificate of CE, IEC, TUV, RoHS, etc.
Now our market covers more than 20 countries and regions in Europe, USA, Australia, Africa and Asia.
Welcome to visit our for more information.
Porvide solar panel, epoxy solar panel, large size, poly/multi crystalline mono crystalline
We have our own bran GH solar, and have three office in the oversea, Pakistan Dubai and Indonesia.
For more inforation,please contact:
Email: susie(at)
