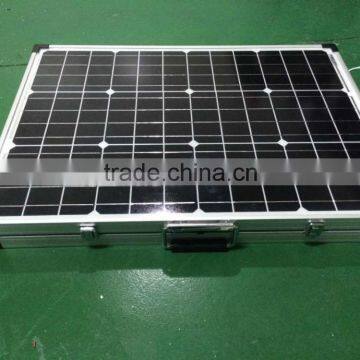

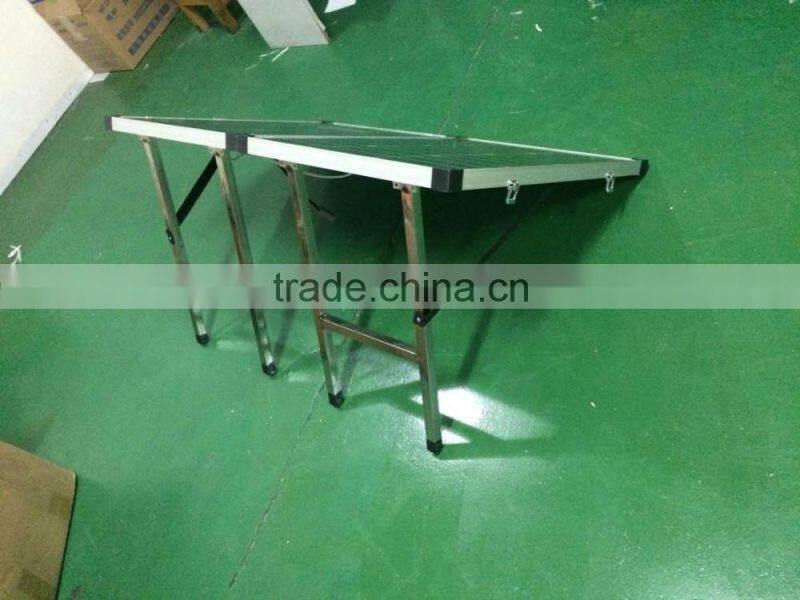

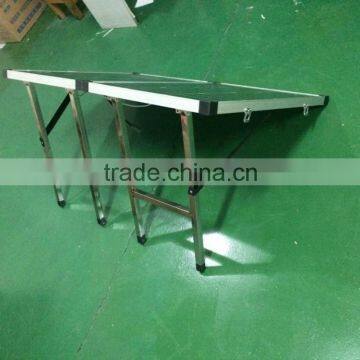

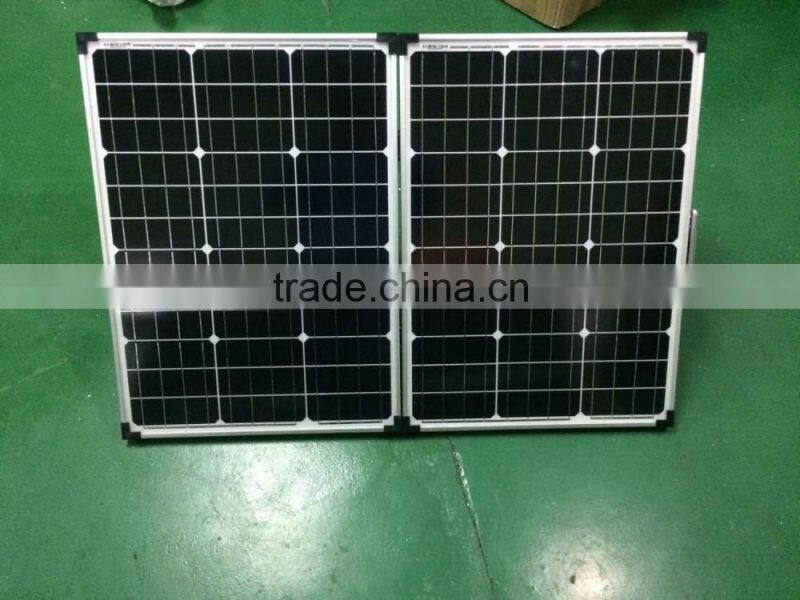

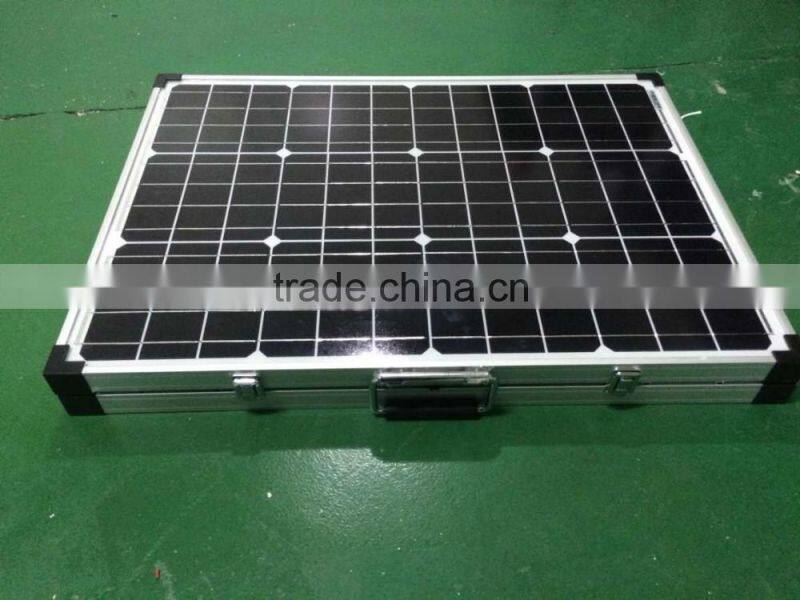

120W folding solar panel portable solar panels
Solar panel
Our Solar Panels are A GRADE and are EURO, TUV, CE, IEC & NZ Certified.
photovoltaic solar panel
They are made of Crystalline Photovoltaic cells and Aluminum framed.High efficiency and A GRADE quality
Full EURO, TUV, CE, IEC & NZ certification
The structure of solar panel
solar panel ---- Cells
The high-efficiency of mono and poly solar cells ensure adequate power for solar panels.
solar panel ---- Glass
Low iron tempered glass, 3.2mm thickness with high reflectivity.
solar panel ---- EVA
Higher transmission rate, antioxidant capacity and temperature resistance, no expansion or contraction.
solar panel ---- Back film
Increase efficiency of solar modules sightly and reduce solar panel’s temperature. Aging resistance, corrosion resistance and airtight.
solar panel ---- Frame
Using the framework of the anodized aluminum frame with high intensity, mechanical shock resistance capability.
| Model | Power | Best Working Voltage(V) |
Best Operating Current(A) | Open-circuit Voltage(V) | Short-circuit Current(A) | Number of Cell(Pcs) | Dimension(mm) |
| Mono Solar Panels 3W | 3.00 | 9.00 | 0.33 | 10.44 | 0.36 | 18 | 185*185*17 |
| Mono Solar Panels 5W | 5.00 | 9.01 | 0.55 | 10.45 | 0.59 | 18 | 250*185*17 |
| Mono Solar Panels 10W | 10.00 | 17.92 | 0.56 | 20.79 | 0.60 | 36 | 255*350*17 |
| Mono Solar Panels 15W | 15.00 | 18.00 | 0.83 | 20.88 | 0.89 | 36 | 360*350*17 |
| Mono Solar Panels 20W | 20.00 | 18.01 | 1.11 | 21.42 | 1.31 | 36 | 360*450*25 |
| Mono Solar Panels 25W | 25.00 | 18.00 | 1.39 | 21.80 | 1.63 | 36 | 360*490*25 |
| Mono Solar Panels 30W | 30.00 | 17.95 | 1.67 | 21.72 | 1.97 | 36 | 545*514*25 |
| Mono Solar Panels 40W | 40.00 | 17.95 | 2.23 | 21.65 | 2.62 | 36 | 420*670*30 |
| Mono Solar Panels 50W | 50.00 | 18.00 | 2.78 | 21.72 | 3.27 | 36 | 540*670*30 |
| Mono Solar Panels 60W | 60.00 | 18.10 | 3.31 | 21.68 | 3.90 | 36 | 630*670*30 |
| Mono Solar Panels 70W | 70.00 | 18.00 | 3.89 | 21.24 | 4.20 | 36 | 780*670*30 |
| Mono Solar Panels 80W | 80.00 | 18.00 | 4.44 | 21.24 | 5.23 | 36 | 780*670*30 |
| Mono Solar Panels 90W | 90.00 | 18.15 | 4.96 | 21.42 | 5.83 | 36 | 906*670*30 |
| Mono Solar Panels 90W | 90.00 | 18.15 | 4.96 | 21.42 | 5.83 | 36 | 1200*540*30 |
| Mono Solar Panels 100W | 100.00 | 18.25 | 5.48 | 21.54 | 6.45 | 36 | 1200*540*30 |
| Mono Solar Panels 100W | 100.00 | 18.25 | 5.48 | 21.54 | 6.45 | 36 | 1020*670*30 |
| Mono Solar Panels 110W | 110.00 | 18.00 | 6.11 | 21.24 | 7.19 | 36 | 1120*670*30 |
| Mono Solar Panels 130W | 130.00 | 17.20 | 7.56 | 21.24 | 8.50 | 36 | 1240*670*30 |
| Mono Solar Panels 140W | 140.00 | 18.00 | 7.80 | 22.30 | 8.67 | 36 | 1480*670*35 |
| Mono Solar Panels 150W | 150.00 | 18.00 | 8.35 | 22.20 | 8.85 | 36 | 1480*670*35 |
| Mono Solar Panels160W | 160.00 | 18.20 | 8.79 | 22.60 | 9.23 | 36 | 1480*670*35 |
u Normally packing: 1pc/2pcs/3pcs/10pcs/20pcs per carton
u Individual packing requirement is acceptable
