Solar panel
Our Solar Panels are A GRADE and are EURO, TUV, CE, IEC & NZ Certified.
photovoltaic solar panel
They are made of Crystalline Photovoltaic cells and Aluminum framed.High efficiency and A GRADE quality
Full EURO, TUV, CE, IEC & NZ certification
The structure of solar panel
solar panel ---- Cells
The high-efficiency of mono and poly solar cells ensure adequate power for solar panels.
solar panel ---- Glass
Low iron tempered glass, 3.2mm thickness with high reflectivity.
solar panel ---- EVA
Higher transmission rate, antioxidant capacity and temperature resistance, no expansion or contraction.
solar panel ---- Back film
Increase efficiency of solar modules sightly and reduce solar panel’s temperature. Aging resistance, corrosion resistance and airtight.
solar panel ---- Frame
Using the framework of the anodized aluminum frame with high intensity, mechanical shock resistance capability.

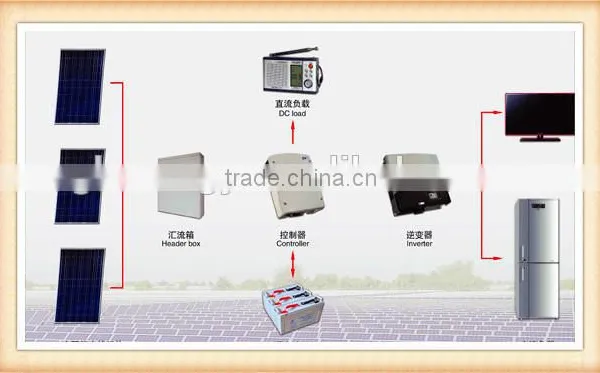

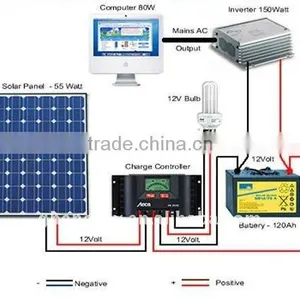

off grid independent Solar PV System
the solar system the solar system
about solar system
5KW off grid independent Solar PV System
Application: Home, Office
Providing electric for TV, printer, water pump.
MOQ: 1SET.
5KW off grid independent Solar PV System
| 5KW off grid Household Solar PV System--------Model:GH-5KW -AC | ||||
| System Configuration | ||||
| Series No. | Items | Specification | Quantity | Warranty |
| 1 | Solar Panel 5000Wp | 100 W poly solar panel | 50 PCS | 5 years |
| 2 | Power Box | Controller 24V/ 50A | 3 PCS | 1 year |
| Pure sine wave inverter24V/2000W | 5 PCS | 1 year | ||
| Controller cabinet | 1 PCS | |||
| 3 | Lead Acid Battery | 12V/100AH * 60PCS, not included in quotation and package | ||
| 4 | Accessories | Mounting brackets, cables 500m | 1 SET | |
| Reference for Use | ||||
| Name of Load | Power(W) | Quantity | Working Time per Day (H) |
Working Days |
| Color TV | 65W | 1 | 6 | 2 rainy days |
| Satellite TV Receivers | 25W | 1 | 6 | |
| LCD Computer | 100W | 1 | 4 | |
| Energy-saving lamp | 11W | 6 | 6 | |
| Printer | 30W | 1 | 1 | |
| Electrograph | 150W | 1 | 1 | |
| Water Pump | 200W | 1 | 2 | |
| Refrigeratory | 100W | 1 | 24 | |
| Washing machine | 300W | 1 | 1 | |
| Air-condition | 1000W | 2 | 7 | |
|
This system can provide electricity for home 6 hours per day. Maximum power of loads: 3000Wp | ||||
u Normally packing: 1pc/2pcs/3pcs/10pcs/20pcs per carton
u Individual packing requirement is acceptable
