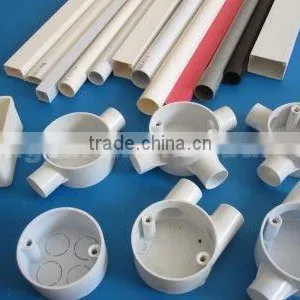

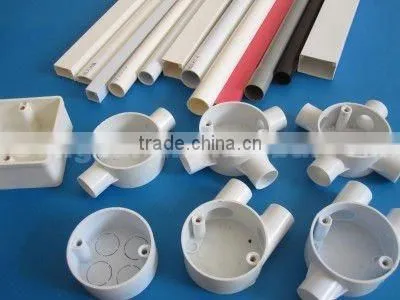

Electrical pvc conduit and fittings

Specifications

Electrical pvc conduit and fittings
1.Raw material PVC
2.Color white, grey, or customized design
3.Light weight

Electrical pvc conduit and fittings.

Product Introduction:

1).Material:    Making of PVC Plastic

2).Standard:  IEC 61084-2-1

3).Apperance: Regular round, smooth, light, no impurity, beautiful Decent packaging

4).Color:    Color pure, no have discoloration and aging.

5).Smell:    no scent,environmental.

6).Use:      For internal wiring,protecting the wire under 1200v

7).Effect:    After using,wiring easily and trimly,installing reliably,and is convenient for maintaining and searching and exchanging

8).Lifetime:  Anti-aging,normal use life can be up to 50 years.



Product Features:

1).Thickness:          With appropriate temperature and accurate molds machinery technology, the thickness,size,shape can be precisely controlled.

2). Toughness:         If you bend ,can not break(90 and 180 degree cold bend).

3). Hardness:          Under pressure ability, high impact resistance

4).Fire-resistance:  Flame-retardant pvc resin,highly combustion-retardant,quickly self-extinguishing.

5).Corrosion resistance : moisture, acid and alkali resistance,, assuring a lower maintenance cost and a longer performance life

7). Non-conductive:     excellent electricity insulation, which resist 25kv voltage , assuring a safe system

8).Installation: easy to open and close ,convenient push-pull,installed with solvent cementing and threading joinin

9).Save cost: Can save much more installation expense than metal pipe and fittings because of light weight and convenient for installation.



Songsu PVC PIPE Specification
Product name	Model	Size(mm)	Thickness(mm)
Pvc  Pipe	SU-P 16	Ø16	0.90/1.00/1.10/1.20/1.30
	SU-P 20	Ø20	1.00/1.10/1.20/1.30/1.40/1.50
	SU-P 25	Ø25	1.20/1.30/1.40/1.50
	SU-P 32	Ø32	1.20/1.30/1.40/1.50
	SU-P 40	Ø40	1.20
	SU-P 50	Ø50	1.40
	SU-P 60	Ø60	1.50
	SU-P 80	Ø80	2.00
	SU-P 100	Ø100	2.00
	SU-P 110	Ø110	2.80
	SU-P 125	Ø125	3.00
Notice: Size Ø16,Ø20,Ø25,Ø32 can 180 degree cold bend
Notice: Length and thickness can be produced as customers'request
