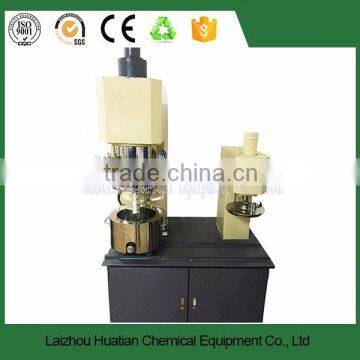

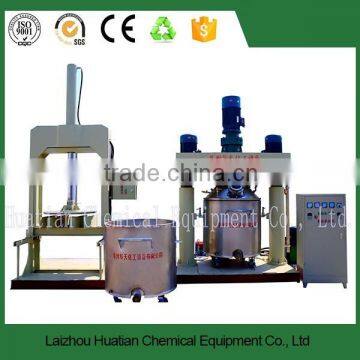

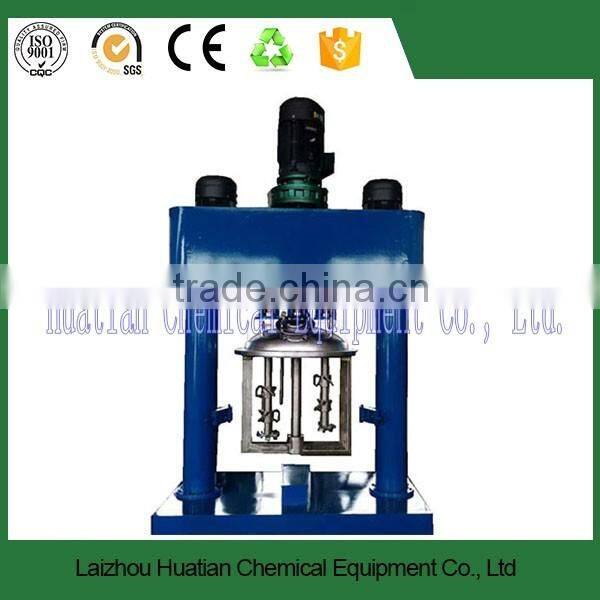

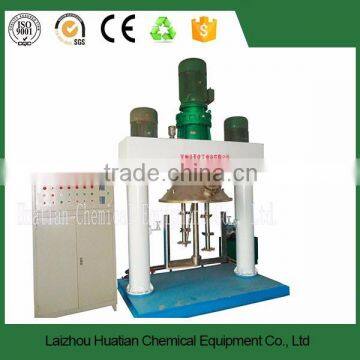

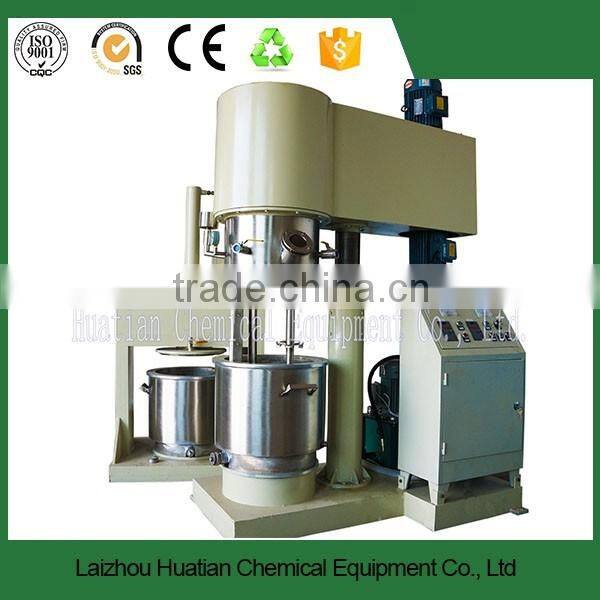

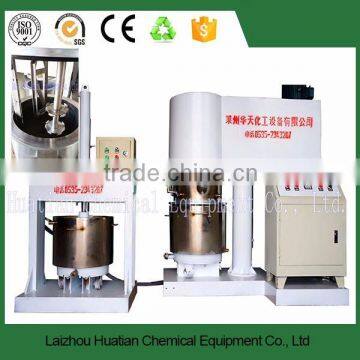

Strong disperser Lithium Battery Double Planetary Mixer Disperser
Laizhou Huatian Chemical Equipment Co.,Ltd. specializes in the research and development,design,manufacture,marketing and service of fluid and semifluid equipment. The main equipment covers kneaders,intelligent integration of complete sets of equipment for production of coating,emulsion paint and stone-like coating,reaction kettles,mixing machines,emulsifying and grinding equipment etc.,which are widely used in industries of petroleum,chemicals,plastics,foodstuff,pharmaceutical,paper making,leather chemical and many other such industries. We can also provide users with non-standard production line designing scheme and whole factory output turn-key project according to actual technological process and production technology. Our equipment has excellent performance and superior quality with independent intellectual property rights and with a dozen state owned patents applied for.
Our equipment sells well all over China and has been exported to countries in Central Asia and Iran,India,Vietnam,Brazil etc. since long ago.
Our company always adheres to the principle of mutual benefit and win-win in the trade with customers both at home and abroad over the years and endeavors to make ourselves into an enterprise to be highly competitive and industry-leading.
“Huatian”HT-SXX series of Double Planetary Power Mixer are new type high efficiency mixing equipment being researched and developed and improved independently by ourselves based on digestive absorption of advanced technology from home and abroad.
This series of equipment are widely used in industries of electronics, chemicals,foodstuff,medicines,building materials,agrochemicals etc. for mixing,reacting,dispersing,dissolving,homogenizing and emulsifying of solid-solid,solid-liquid,liquid-liquid materials like fluid of polymer lithium-ion battery,liquid lithium-ion battery fluid,electronic electrode paste, adhesive,molding adhesive,silicone adhesive,PU sealants,anaerobic adhesive,printing ink,pigments,cosmetics,ointment etc.
Model |
HT-SXX2 |
HT-SXX15 |
HT-SXX25 |
HT-SXX60 |
HT-SXX100 |
HT-SXX200 |
HT-SXX300 |
HT-SXX500 |
HT-SXX1000 |
|
Volume |
2L |
15L |
25L |
60L |
100L |
200L |
300L |
500L |
1000L |
|
Tank Size(mm) |
250*200 |
300*300 |
350*350 |
450*500 |
550*550 |
750*600 |
750*800 |
1000*850 |
1250*1000 |
|
Revolution Motor(kw) |
0.75 |
1.5 |
2.2 |
3 |
4 |
7.5 |
11 |
22 |
30 |
|
|
Revolution Speed(Variable Speed by Frequency Inverter)(RPM) |
0-60 |
0-60 |
0-60 |
0-60 |
0-60 |
0-40 |
0-40 |
0-35 |
0-35 |
|
Autorotational Speed(Variable Speed by Frequency Inverter)(RPM) |
0-70 |
0-70 |
0-70 |
0-70 |
0-70 |
0-60 |
0-60 |
0-45 |
0-45 |
|
Disperser Motor(kw) |
0.75 |
1.5 |
2.2 |
4 |
5.5 |
11 |
11 |
30 |
37 |
|
Dispersing Speed(Variable Speed by Frequency Inverter)(RPM) |
0-1500 |
0-1500 |
0-1500 |
0-1500 |
0-1500 |
0-1500 |
0-1500 |
0-1500 |
0-1500 |
|
Scraper Speed(Variable Speed by Frequency Inverter)(RPM) |
0-60 |
0-60 |
0-60 |
0-60 |
0-60 |
0-40 |
0-40 |
0-35 |
0-35 |
|
Vacuum Degree(MPa) |
≤ -0.098 |
≤ -0.098 |
≤ -0.098 |
≤ -0.098 |
≤ -0.098 |
≤ -0.098 |
≤ -0.098 |
≤ -0.098 |
≤ -0.098 |
|
Lifting Stroke(mm) |
200 |
400 |
500 |
600 |
650 |
700 |
900 |
1000 |
1100 |
|
Weight(kg) |
250 |
800 |
1000 |
1750 |
2500 |
3000 |
3500 |
4500 |
6500 |
|
Outer Size |
L(mm) |
700 |
960 |
1150 |
1900 |
2500 |
2500 |
2640 |
2670 |
2900 |
W(mm) |
400 |
450 |
530 |
1000 |
1000 |
1000 |
1080 |
1100 |
1400 |
|
H(mm) |
1700 |
2000 |
2300 |
2400 |
2500 |
2500 |
2650 |
3600 |
3900 |
|
Lifting Mode |
Manual(2L),Pneumatic,Hydraulic |
|||||||||
Packaging Details:Usually Package By Three Plywood,Suitable And Convenient For Shipment
Delivery Detail:About 20-40 Days After Receive Deposit
Warranty:
Equipment warranty for one year. As customers confirm that they received the goods, we will provide free replacement parts for damaged parts (in addition to the damage caused by incorrect operation), we will be available through federal, air, sea.
Electrical Engineering:
Lifetime maintenance, Huatian provide Chinese operating manual instructions on how to install and maintain. If the customer has any technical problems, we will provide guidance by phone, e-mail and other means.
Installation:
The overall complexity of the installation of the machine we have for you, or custom equipment or complete production lines. After installation, we will check the machine, operation of equipment, installation and provide you with a test report.
Train
Our clients can operate according to the instructions. Or before delivery, customers can come to our factory, our engineers can guide training how to operate and maintain the equipment in the field.
We can provide a variety of chemical technology formula.
