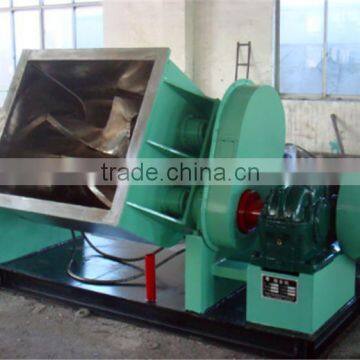

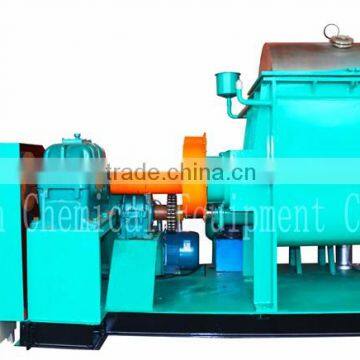

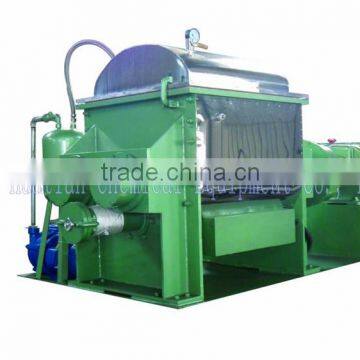

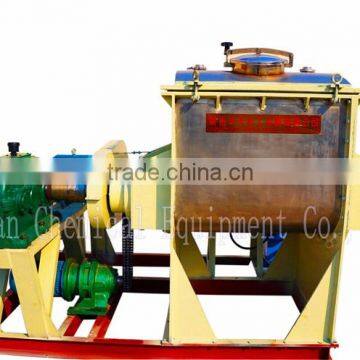

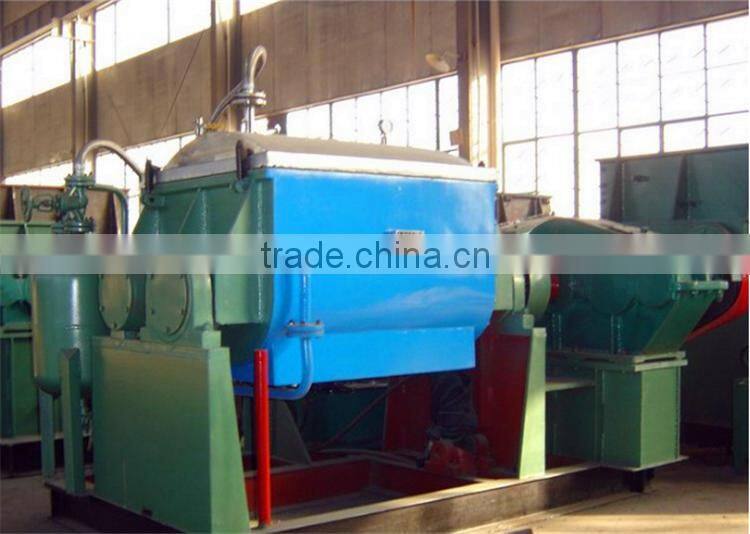

Help CenterHuatian Efficient Dispersion Kneader, Rubber Kneader, Sigma Kneader
Related Products
-
RUBBER KNEADERUS$ 500 - 3,000MOQ: 1 Set -
2016 New Kneader, Rubber Kneading MachineUS$ 4,500 - 29,900MOQ: 1 Set
-
Kneader HT-NHJUS$ 1,000 - 15,000MOQ: 1 Set
-
Sigma Kneader Machine, Kneader Mixer,US$ 4,500 - 29,900MOQ: 1 Set
-
Rubber Dispersion Kneader Rubber Mixer MachineUS$ 4,500 - 29,900MOQ: 1 Set
Application:
Mixing, kneading, smashing, stirring, vulcanizing and re-polymerizing of fire retardant, "space sand" (also called kinetic sand or toy sand), butyl rubber, various viscosity of carboxy methyl cellulose (CMC), plastics, silicon rubber, printing ink,carbon, silicon sealant, color master batch, hot melt adhesive, chewing gum, dyestuff, food gum, pharmaceuticals and such products.
Feature:
Stirring blade is optimal streamline structure with polished surface guaranteeing degree of finish.
Supporting part adopts self-aligning bearing to support and shaft will not sway.
Oldham’s coupling can compensate the relative displacement between the two shafts.
The upper cover adopts hydraulic operation lifting with seal of newest tri-seals
technique guaranteeing the overall tightness of the cylinder.
Specifications:
Model |
NHJ-5 |
NHJ-10 |
NHJ-50 |
NHJ-100 |
NHJ-300 |
NHJ-500 |
NHJ-1000 |
NHJ-1500 |
NHJ-2000 |
|
Capacity(L) |
5 |
10 |
50 |
100 |
300 |
500 |
1000 |
1500 |
2000 |
|
Agitator Blade Rotate Speed(r/min) |
33,23 |
33,23 |
45,23 |
35,22 |
37,21 |
37,21 |
35,25 |
30,16 |
30,16 |
|
|
Main motor power(kw)
|
0.75 |
1.1 |
2.2-3 |
3-7.5 |
11-30 |
15-37 |
22-90 |
22-90 |
30-110 |
|
|
Heating Method |
Steam: Pressure (Mpa) |
0.3 |
||||||||
|
Electrical Heating Power(kw) |
1 |
1 |
4 |
4 |
9 |
16.2 |
27 |
32.4 |
40 |
|
Vacuum Degree (Mpa) |
-0.094(Vacuum Model) |
|||||||||
Pressure(Mpa) |
0.45((Pressure Type) |
0.35(Pressure type) |
||||||||
Weight(kg) |
~300 |
~400 |
~560 |
~1250 |
~1600 |
~3000 |
~4500 |
~5800 |
~6500 |
|
Your cargo will be packed in plywood, electric parts will be packed in waterproof boxes.
Provide various chemical technical formulation such as butyl rubber, silicone adhesive, silica gel etc.
Provide various chemical technical formulation such as coatings, paints, stone-like coatings and marble paints etc.
Sincerely welcome domestic and foreign agents.
1. Laizhou Huatian Chemical Equipment Co., Ltd. specializes in the research and development, design, manufacture, marketing and service of fluid and semifluid equipment. The main equipment covers kneaders, intelligent integration of complete sets of equipment for production of coating, emulsion paint and stonelike coating, reaction kettles, mixing machines, emulsifying and grinding equipment etc., which are widely used in industries of petroleum, chemicals, plastics, foodstuff, pharmaceutical, paper making, leather chemical and many other such industries. We can also provide users with non-standard production line designing scheme and whole factory output turn-key project according to actual technological process and production technology. Our equipment has excellent performance and superior quality with independent intellectual property rights and with a dozen state owned patents applied for.
2. Our equipment sells well all over China and has been exported to countries in Central Asia and Iran, India, Vietnam, Brazil etc. since long ago.
3 .Our company always adheres to the principle of mutual benefit and win-win in the trade with customers both at home and abroad over the years and endeavors to make ourselves into an enterprise to be highly competitive and industry-leading.
4. The company follows the principles of “To survive by quality, to perfect by strictness, to have trust by integrity” and will sincerely cooperate with you through high standard equipment and fast and efficient service to create a better future together.
