UPS Monitoring SNMP Network Card
NetmateLite Mini 2 (Internal) Overview:
NetmateLite mini 2 (Internal) belongs to the first Generation Web-based UPS( uninterruptible power supply )SNMP cards(NetmateLite series) that Richcomm company had launched in 2003, this mini internal model support basic single-phase UPS monitoring with 500 history events, being of friendly user interface and simple operation, can satisfy your basic UPS monitoring demands.
Function
l Support SNMP V1.1 version;
l Support basic single phase UPS monitoring;
l Provide user authorization management;
l Built-in WEB server to achieve HTTP access;

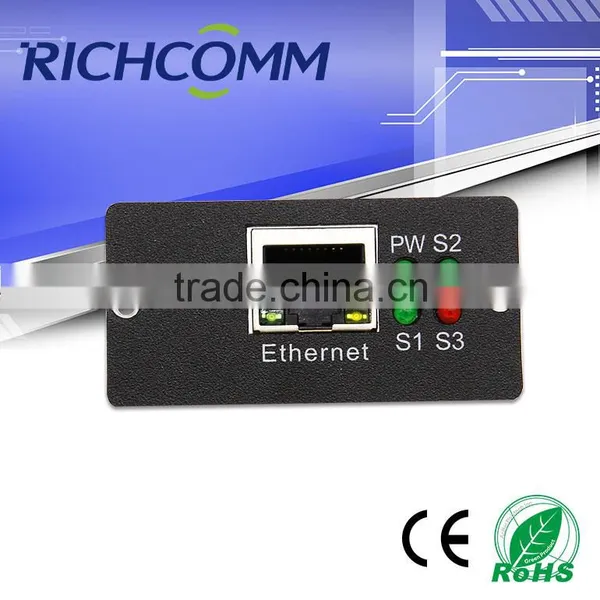

l With 3 indicators(S1,S2,S3) to check various working status;
l Support 500 history event storage;
l Clock function;
l Support SNMP trap/e-mail alarm;
l Support network/USB port/serial port;
l Work with IP Power SE/IP Power 2012 for central monitoring;
Advantage
l Competitive price;
l Friendly web interface and simple operation & maintenance;
l Flexibility (can be customized to different language version);
l Support standalone and network monitoring;
l Support centralmonitoring and unify management (match with IP Power SE/IP Power 2012);
l With clock function and 500 history events.
Dimension

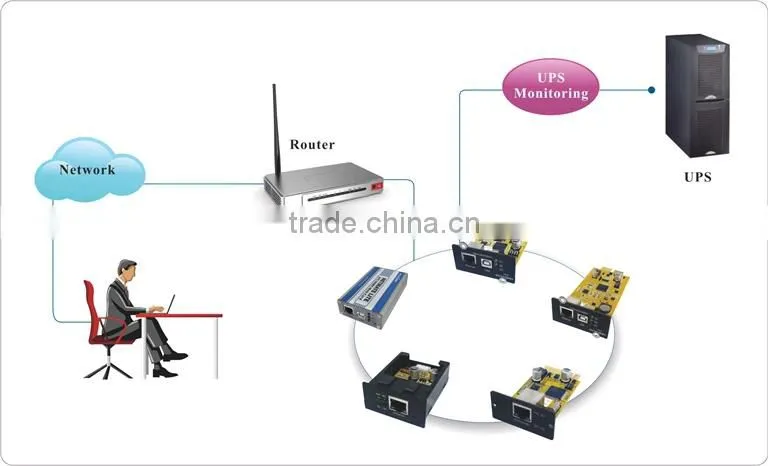

Network Diagram
Technical Parameters
CPU |
Low power and high performance, high ARM7TDMI-S 72MHz CPU |
RAM |
96KB SDRAM |
Flash |
512KB Flash |
Network Port |
10/100Mbps high-speed Ethernet self-adaptive |
Serial Port |
Golden finger |
Browser Support |
Support Internet Explorer, Goole Chrome, Netscape or other compatible browser |
SNMP MIB |
Support MIB-II(RFC1213, RFC1315, RFC1316, RFC1628), PPCMIB |
Network |
TCP/IP,UDP,SNMP |
Input Power(DC) |
4.5V-12V |
LED Indicator |
Power, Status, LAN 10/100M Link/Active |
Power Consumption |
≤0.84W |
Working Environment |
Temperature:0℃~70℃ |
Relative humidity:≤95% | |
Firmate Upgrade |
Network upgrade |
System Security |
Provide IP based filtering mechanism, system operation, user ID control & management and password protection. |
Safety Certificate |
CE, FCC, ISO9001, ISO14001 |

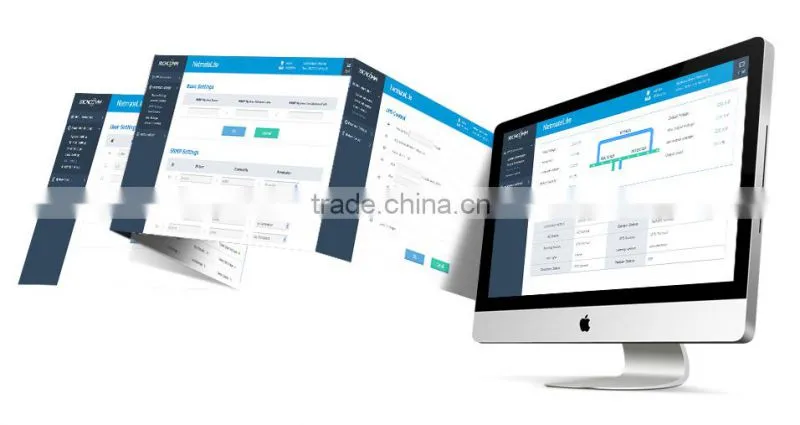

Monitoring Interface
Typical Application
Web-based UPS( uninterruptible power supply, power backup system )monitoring
