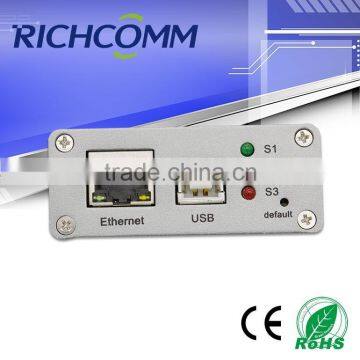

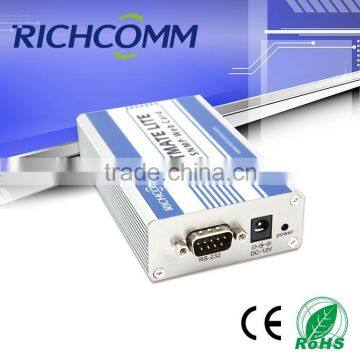

NetmateLite(External)
Overview:
NetmateLite (External) belong to the first Generation Web-based UPS SNMP cards(NetmateLite series) that Richcomm company had launched in 2003, this external model support basic single-phase UPS monitoring with 500 history events, being of friendly user interface and simple operation, can satisfy your basic single phase UPS monitoring demands.
Function
l Support SNMP V1.1 version;
l Provide user authorization management;
l Built-in WEB server to achieve HTTP access;
l With 3 indicators to check various working status;
l Support 500 history events and data storage;
l Clock function;
l Support SNMP Trap alarm, e-mail alarm;
l Support network upgrade, USB upgrade, serial upgrade
l Work with IP Power SE/IP Power 2012 for central monitoring and unify management.
Advantage
l Competitive price;
l Friendly web interface and simple operation & maintenance;
l Flexibility
l Support standalone and network monitoring;
l Support centralized monitoring and unify management (work with IP Power SE/IP Power 2012);
l With clock function and 500 history events.
RS232 Definition
Dimention
Network Dirgram
Technical Parameters
CPU |
Low power and high performance, high ARM7TDMI-S 72MHz CPU |
RAM |
96KB SDRAM |
Flash |
512KB Flash |
Network Port |
10/100Mbps high-speed ethernet self-adaptive |
Serial Port |
RS232 Port |
Browser Support |
Support Internet Explorer, Goole Chrome, Netscape or other compatible browser |
SNMP MIB |
Support MIB-II(RFC1213, RFC1315, RFC1316, RFC1628), PPCMIB |
Network |
TCP/IP,UDP,SNMP |
Input Power(DC) |
9-15V |
LED Indicator |
Power, Status, LAN 10/100M Link/Active |
Power Consumption |
≤0.84W |
Working Environment |
Temperature:0℃~70℃ |
Relative humidity:≤95% | |
System Upgrade |
Serial Port/USB Port/Network Upgrade |
System Security |
Provide IP based filtering mechanism, system operation, user ID control & management and password protection. |
Safety Certificate |
CE, FCC, ISO9001, ISO14001 |
Monitoring Interface
Typical Application
Web-based single phase UPS (no break power supply).home UPS, computer UPS Monitoring
