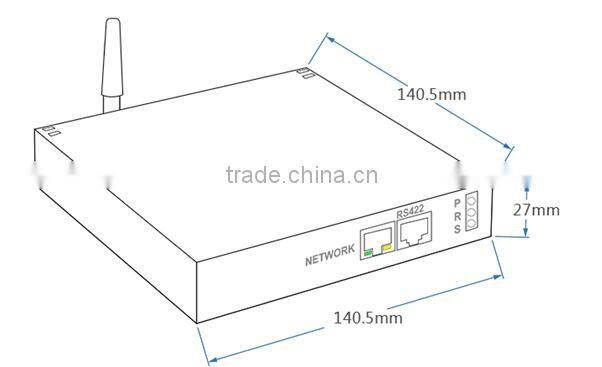

Remote Control SMS Digital Temperature and Humidity Controller

CPU

32-bit ARM RISC-based 50 MHz CPU

RAM

64M byte SDRAM

Flash ROM

128M byte Flash

Network Port

10/100Mbps high-speed Ethernet self-adaptive

Serial Port

1 RS232 Port( To connect UPS/Precision Air Conditioning)

1 RS422Port(To connect Temp &humid sensor and air condition infrared control)

Browser Support

Support Internet Explorer, Netscape or other compatible browser

SNMP MIB

MIB-II(RFC1213, RFC1315, RFC1316), PPC MIB, RFC1628 MIB

Network Protocol

TCP/IP, UDP, SNMP, Telnet, SNTP, HTTP, SMTP, DHCP, DNS, TFTP, ARP, ICMP, PPP, etc.

LED Indicator

Power, Status, Ready, LAN 10/100M Link/Active

Input Power (DC)

8 ~ 15V

Power Consumption

≤5W

Running Environment

Temperature: 0°C ~ 70°C

Humidity: 10 ~ 85%

Other Configuration

Real-time system clock

Multiple Languages

Chinese/English, support OEM to other languages

Firmate Update

Network

System Security

Provide IP based filtering mechanism, system operation, user ID control & management and password protection.

Safety Certificate

ISO9000, ISO14001, CE, FCC


Name

Function

Specification

Temp & Humid Sensor

OLCD Display

(Every 20 M² need to install 1pc of Temp & Humid Sensor)

Environment Temperature Detection Range: -22 ℃ ~ +55 ℃.

Accuracy: ±0.5 ℃.

Environment Humidity Detection Range: 10% ~ 99%.

Accuracy:± 3 %.

Communication Mode: Full-duplex RS-485.

Digital Type

Smoke Sensor

Smoke Fire Status Detect

(Every 20 M²-30M² need to install 1pc of Smoke Sensor)

Sensor: Ionic.

Operating Voltage: DC12V/24V.

Working Current: ESD Current<10ua Alarm Working Current10-20ma.

Working Environment:-5℃~50℃.

Alarm Output:Live alarm signal output connect monitor host, alarm eliminate auto disconnect

Dimention: Φ107mm*50mm

Infrared Detector

Intrusion Detection

Working Voltage: DC 9~16V.

Current Loss: 12vmA.

Horizontal: ±25º.

Vertical: +5º~-20º.

Door Contact Sensor

Door/Windows

On-Off Status Detection

Operational Power Supply:12V .

Operating Current:<15mA.

Static Current:3mA.

Operating Frequency: 315MHz.

Frequency Deviation: ±0.2MHz.

Transmitting Power: >15mw.

Transmitting Distance: >100m(open)

Transmitting Time: 1.5S-3S

Effient Range:closed:-15mm, open-3

Switching Value Transmitter

Air Conditioning/ New Fan

On-Off Status Detetcion

Power Frequency Withstand Voltage: 1.0kV/1min1mA.

Insulation Resistance: >100MΩ.

Power Influence: DC24V +/- 15%.

Inspection Temperature: 23°C.

Inspection Humidity: 60%RH.

Non-Location Water Leakage Collector

Leakage Detection

Sensitivity: 2mm-100mm adjustable (water supply).

Response Time: <1s.

Power Requirement: 12VDC polarity connection .

Relay Output: 1SPDT,60VDC or 125VAC,1A rated value (constant on/off).

Non-Location

Water Leakage Cable(5/10/15/20/30M)

Air Conditioning Smart Controller

Remote Control Air Conditioning on-off, with auto reboot when AC recover

Input Power 5V-15VDV, Rated Power12VDC

Average Power Consumption:<20mA

Temperature Range:-10℃~-50℃

Humodity Range:10%~90%RH

Output: An (OFF/ON) to control signal.
