Mobilemate
Overview
Mobilemate combine UPS( uninterruptible power supply )monitoring system and environmental monitoring system via SMS and network, this product have been widely applicated to server room/data center monitoring solution for where need to use SMS or network to take remote control & manage of UPS(uninterruptible power supply), PAC(precision air conditioning), temperature, humidity, smoke, water leakage, door/window contact etc.
Function
l Support SNMP V2 protocol, RFC1628 MIB, XPPC MIB;
l Built-in WEB server to achieve HTTP access;
l Multi brand and multi model compatible for UPS(Uninterruptible Power Supply) /PAC(Precision Air Conditioning);
l Support history events and data storage;
l Support environmental extension like Temp &Humid detection and general air condition infrared control via RS422 port;
l Support dry contacts extension via Temp & Humid sensor;
l Support SMS /E-mail /Trap alarm notifications;
l Support multi user authorization management;
l Support DHCP;
l Support scheduled task;
l Support TELNET, WEB page configurations;
l Support system upgrade by network;
l Support 7*24 hours live video monitoring;
l With SNTP synchronous clock;
l Work with(IP Power SE/IP Power2012) for central monitoring and unified management.

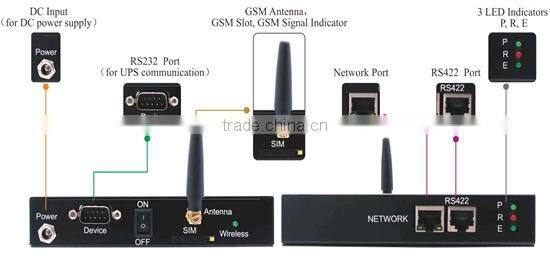

Ports Introduction

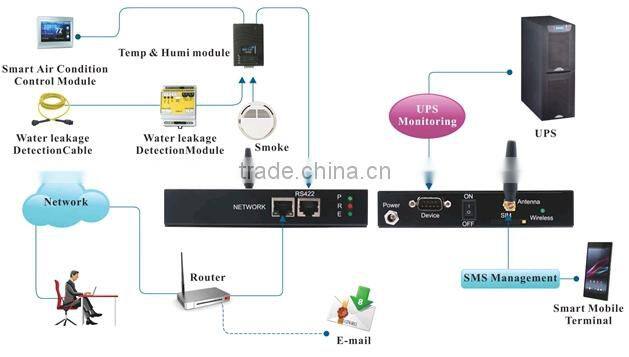

Network Diagram
Technical Parameter
CPU | 32-bit ARM RISC-based 50 MHz CPU |
RAM | 16M byte SDRAM |
Flash ROM | 4M byte Flash |
Network Port | 10/100Mbps high-speed Ethernet self-adaptive |
Serial Port | 1 RS232 Port( To connect UPS/Precision Air Conditioning) |
1 RS422 Port(To connect Temp &humid sensor and air condition infrared control) | |
Browser Support | Support Internet Explorer, Netscape or other compatible browser |
SNMP MIB | MIB-II(RFC1213, RFC1315, RFC1316), PPC MIB, RFC1628 MIB |
Network Protocol | TCP/IP, UDP, SNMP, Telnet, SNTP, HTTP, SMTP, DHCP, DNS, TFTP, ARP, ICMP, PPP, etc. |
LED Indicator | Power, Status, Ready, LAN 10/100M Link/Active |
Input Power (DC) | 8 ~ 15V |
Power Consumption | ≤5W |
Running Environment | Temperature: 0°C ~ 70°C |
Humidity: 10 ~ 85% | |
Other Configuration | Real-time system clock |
Multiple Languages | Chinese/English, support OEM to other languages |
Firmate Update | Network |
System Security | Provide IP based filtering mechanism, system operation, user ID control & management and password protection. |
Safety Certificate | ISO9000, ISO14001, CE, FCC |
Typical Application
Non Network/Serious Network Condition, UPS Monitoring, Server Room Monitoring, Data Center Monitoring, Environmental, Monitoring, Networking Monitoring, IT Solution, IT Service, etc.
Mobilmate play as a GSM SMS controller to send SMS alarm to users when there is without network.
