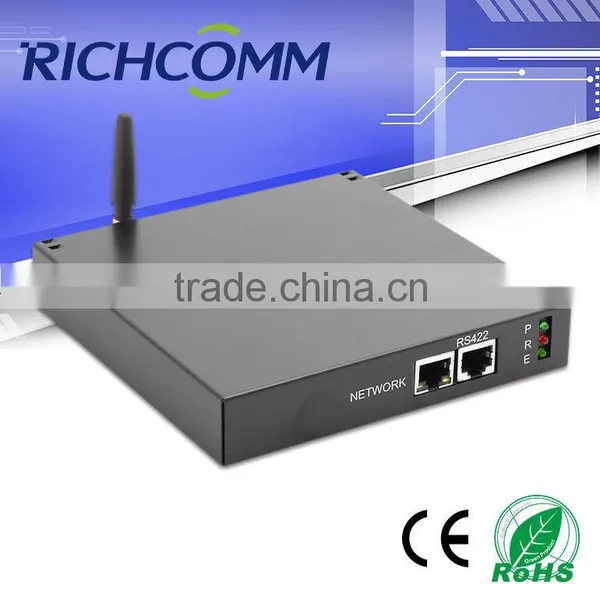

Mobilemate
Overview
Designed of a compact and elegant style, Mobilemate combine UPS( uninterruptible power supply) monitoring system and environmental monitoring system via SMS and network, this solution have been widely applicated to server room/data center, etc for where need to use SMS or network to take remote control & manage of UPS(uninterruptible power supply), PAC(precision air conditioning), temperature, humidity, smoke, water leakage, door/window contact etc.
Function
l Support SNMP V2 protocol, RFC1628 MIB, XPPC MIB;
l Built-in WEB server to achieve HTTP access;
l Multi brand and multi model compatible for UPS(Uninterruptible Power Supply) /PAC(Precision Air Conditioning);
l Support history events and data storage;
l Support environmental extension like Temp & Humid detection and general air condition infrared control via RS422 port;
l Support dry contacts extension via Temp & Humid sensor;
l Support SMS /E-mail/SNMP Trap alarm notifications;
l Support multi user authorization management;
l Support DHCP;
l Support scheduled task;
l Support TELNET, WEB page configurations;
l Support system upgrade by network;
l Support 7*24 hours live video monitoring;
l With SNTP synchronous clock;
l Work with(IP Power SE/IP Power2012) for central monitoring and unify management.
Ports Introduction
Network Diagram
Technical Parameter
CPU | 32-bit ARM RISC-based 50 MHz CPU |
RAM | 16M byte SDRAM |
Flash ROM | 4M byte Flash |
Network Port | 10/100Mbps high-speed Ethernet self-adaptive |
Serial Port | 1 RS232 Port( To connect UPS/Precision Air Conditioning) |
1 RS422Port(To connect Temp &humid sensor and air condition infrared control) | |
Browser Support | Support Internet Explorer, Netscape or other compatible browser |
SNMP MIB | MIB-II(RFC1213, RFC1315, RFC1316), PPC MIB, RFC1628 MIB |
Network Protocol | TCP/IP, UDP, SNMP, Telnet, SNTP, HTTP, SMTP, DHCP, DNS, TFTP, ARP, ICMP, PPP, etc. |
LED Indicator | Power, Status, Ready, LAN 10/100M Link/Active |
Input Power (DC) | 8 ~ 15V |
Power Consumption | ≤5W |
Running Environment | Temperature: 0°C ~ 70°C |
Humidity: 10 ~ 85% | |
Other Configuration | Real-time system clock |
Multiple Languages | Chinese/English, support OEM to other languages |
Firmate Update | Network |
System Security | Provide IP based filtering mechanism, system operation, user ID control & management and password protection. |
Safety Certificate | ISO9000, ISO14001, CE, FCC |
Opitional Accessories
Picture | Name | Function | Specification |
|
Temp & Humid Sensor | OLCD Display | (Every 20 M² need to install 1pc of Temp & Humid Sensor) Environment Temperature Detection Range: -22 ℃ ~ +55 ℃. Accuracy: ±0.5 ℃. Environment Humidity Detection Range: 10% ~ 99%. Accuracy:± 3 %. Communication Mode: Full-duplex RS-485. |
Digital Type | |||
| Smoke Sensor | Smoke Detection | (Every 20 M²-30M² need to install 1pc of Smoke Sensor) Sensor: Ionic. Operating Voltage: DC12V/24V. Working Current: ESD Current<10ua Alarm Working Current10-20ma. Working Environment:-5℃~50℃. Alarm Output:Live alarm signal output connect monitor host, alarm eliminate auto disconnect Dimention: Φ107mm*50mm |
| Infrared Detector | Intrusion Detection | Working Voltage: DC 9~16V. Current Loss: 12vmA. Horizontal: ±25º. Vertical: +5º~-20º. |
| Door Contact Sensor | Door/Windows On-Off Status Detection | Operational Power Supply:12V . Operating Current:<15mA. Static Current:3mA. Operating Frequency: 315MHz. Frequency Deviation: ±0.2MHz. Transmitting Power: >15mw. Transmitting Distance: >100m(open) Transmitting Time: 1.5S-3S Effient Range:closed:-15mm, open-3 |
| New Fan On-off Detector | Air Conditioning/ New Fan On-Off Status Detetcion | Power Frequency Withstand Voltage: 1.0kV/1min1mA. Insulation Resistance: >100MΩ. Power Influence: DC24V +/- 15%. Inspection Temperature: 23°C. Inspection Humidity: 60%RH. |
| Non-Location Water Leakage Collector | Leakage Detection | Sensitivity: 2mm-100mm adjustable (water supply). Response Time: <1s. Power Requirement: 12VDC polarity connection . Relay Output: 1SPDT,60VDC or 125VAC,1A rated value (constant on/off). |
Non-Location Water Leakage Cable(5/10/15/20/30M) | |||
| Air Conditioning Smart Controller | Remote Control Air Conditioning on-off, with auto reboot when AC recover | Input Power 5V-15VDV, Rated Power12VDC Average Power Consumption:<20mA Tenperature Range:-10℃~-50℃ Humodity Range:10%~90%RH Output: An (OFF/ON) to control signal. |
Typical Application
Non Network/Serious Network Condition, UPS Monitoring, Server Room Monitoring, Data Center Monitoring, Environmental, Monitoring, Networking Monitoring, IT Solution, IT Service, etc.
