Integrated UPS/Environment Monitoring System for Small Data Center Solution

CPU

32-bitARM926EJ-S core 300 MHz high-speed center processor(CPU)

RAM

64M byte SDRAM

Flash Rom

128M byte NAND Flash

Network Port

10/100Mbps High-speed Ethernet networks self-adaptive

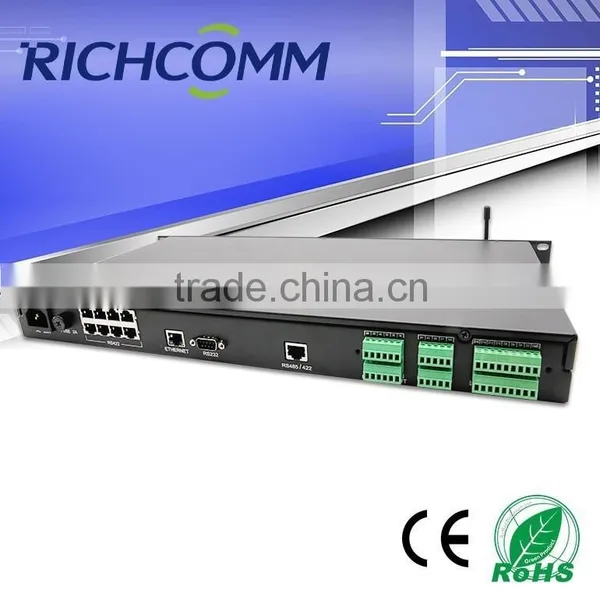

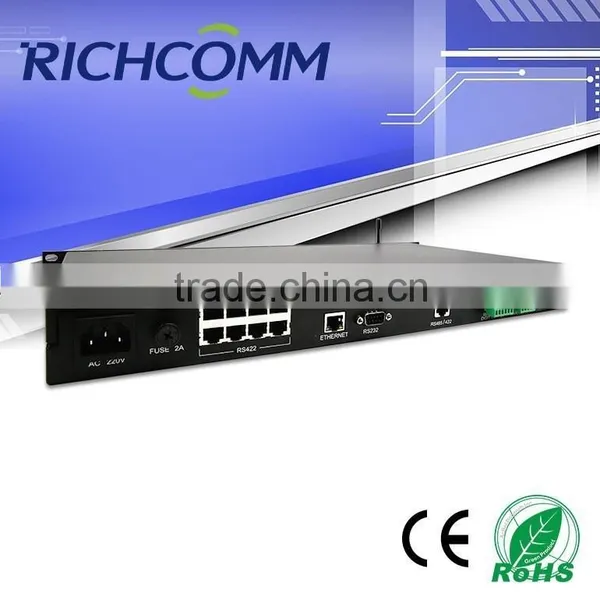

Device Ports

1 RS232 asynchronous serial port;

1 RS422/485 add on port

16 Digit input terminals (0-5V TTL level);
8 Analog input terminals (0 ~ 5V linear level);

5 Digit output terminals (12VDC / 1A).

Browser Support

Internet Explore, Netscape or compatible browsers.

SNMP MIB

Support MIBII (RFC1213, RFC1315, RFC1316)RFC1628, PPC MIB

Network Protocol

TCP/IP, UDP, SNMP, Telnet, SNTP, HTTP, SMTP, DHCP, DNS, TFTP, ARP, ICMP, PPP,etc.

Encrypted protocol

HTTPS, SSL, SSH, SNMPV3, IPV6

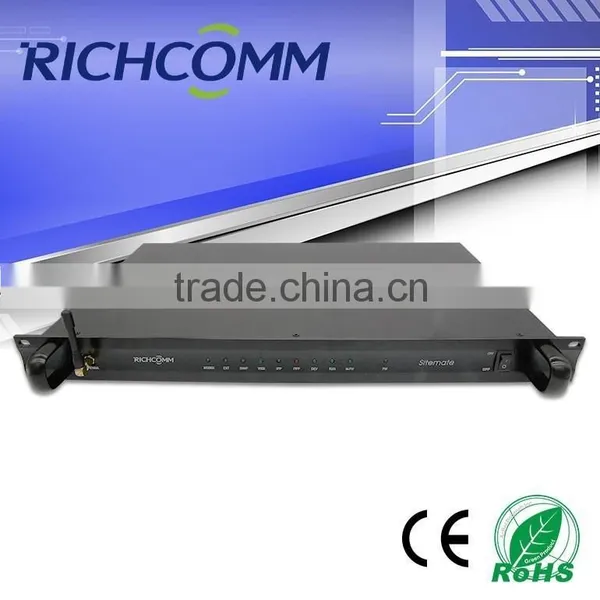

LED Indicators

PW, M-PW, RUN, DEV, PPP, IPP, WEBS, SNMP,

EXT, MODEM, LAN 10/ 1 00M Link/Active

Input Power

220-240V

Frequency

50Hz

Power Consumption

 ≤ 12W

Operating Environment

Temperature:0℃~70℃

Humidity:10~85%

Software Upgrade

Network upgrade

Other Configuration

Real time system clock synchronization

Languages

Chinese/English, support OEM other languages.

System Security

Provided filtering mechanism based on IP , and system operation, control and management of the user ID and password protection.

Safety Certificate

CE, FCC

SN

Name

M.N

Function

Connection

1

Temp&Humid Sensor

RC77015

OLED Display

Detect data center indoor temperature and humidity parameters, every 20 M²need to install 1pc

RS422

RC77012

Digital Type

2

AirCon Infrared Component

RC77404

Remotely control air condition on-off,with auto reboot when AC recover

RS422

3

Smoke Sensor

RC77146

Detect indoor data center monitor status, every 20 M²-30M²need to install 1pc

DI

(terminals)

4

Infrared Sensor

RC77147

Detect data center intrusion, motion status

DI

(terminals)

5

Door contact

RC77424

Detect door or window on/off status

DI

(terminals)

6

Switching Value Transmitter

RC77754

Detect on-off status of air condition/ new fan

DI

(terminals)

7.

Sound Light Sensor

RC77412

Give sound light alarm notification

DO

(terminals)

8.

Dust Sensor

/

Detect dust capacity

Analog

     9.

Flammable Gas Sensor

/

Detect flammable gas

     Analog

   10.

Water Leakage Sensor

RC77106

(Non-Locating)

Detect data center water leakage status, work with water leakage cable, cable (5/10/15/20/30meter)optional, support length custom

DI

(terminals))
