Water Leakage Sensor(Non Locating ) Special for Computer Room Water Leaking Monitoring

  Water Leakage Sensor(Non Locating)

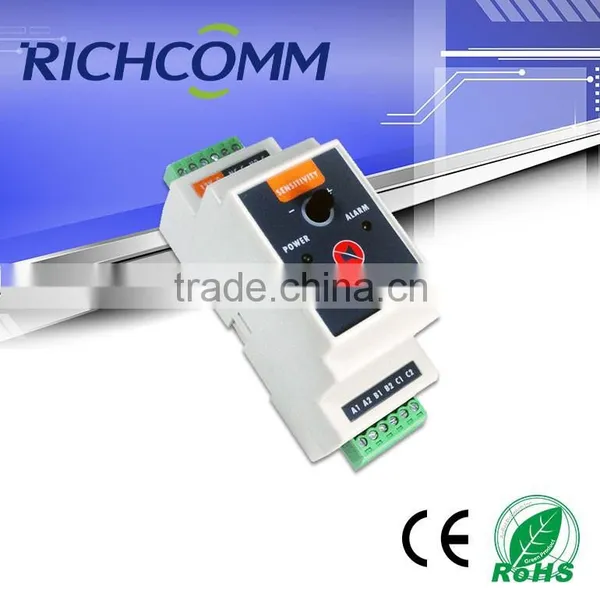

1.    Product Introduction

Leak sensor is a high performance water leakage detection module, it cooperate with water leakage detection cable or other detection probe, through its relay contact output signal and RS485 communication signal can integrate with various monitoring systems to reach remote alarm and remote control.

Multi-purpose design

 The circuit system use high sensitive components to guarantee high sensitivity and can avoid various mistake alarm caused by outer factors,it also have a unique surge protect design. This module provide independent leakage alarm relay, output normallyopen /normally closealarm signal. Module also havea beeper mutebutton, which can shut down alarm voice according to requirement.

Easy installation and use

 The installation of field wiring canbe easily finished through the pull out plug terminal block in module. The output alarm designed to eliminate leakage automatic reset after water leakage eliminate, the module hasbeeper mute button and detection sensitivity adjustment function. The detection module with small volume is convenient to guide rail or to wall space hang installation.

Wide Application

 Detection module is suitable for integration central monitoring system, the typical applications including air handling equipment, refrigeration equipment, liquid container, pump tank or other use sense cable leakage monitoring.

 2. Technical Specification

•  Detection Cable            ASC2100 2 core detection cable with 2 cores( or detection electrodes)
• Detection Cable Length     Max Length 500M
•  Plastic Cover                PVC,NEMA1,IP55 White PVC,NEMA1,IP55
•  Weight                         125g(0.27 pound)
•  Sensitivity                    0-100K no level adjustment(1-100mm)tap water detection range)
•  Response Time             <1S( when sensitivity at highest)
•  Power Requirement       12VDC current power(polarity connection)
•  Relay Output                1SPDT,60VDC or 125VAC,1A related value(normally open normally closed optional)
•  RS485 Output               MODBUS-RTU communication protocol, device address 1-255

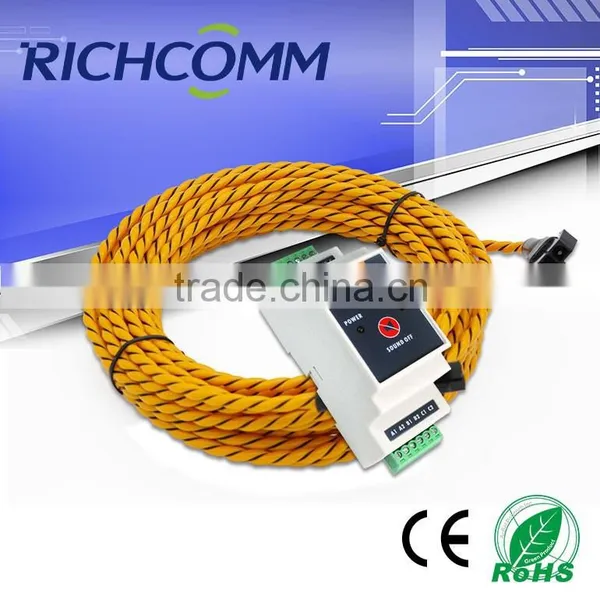

3. Product Code

   LD100       Water Leakage detection alarm module

  ASC2100    2 core spiral leakage detection cable (standard length 5 m/10m / 20 m)

    ALC-203     2 core outgoing cable(standard length 3M)

 AJC-203     2 core jumper cable length (length custom)

  CFC100       Cable installation fixed glue stick

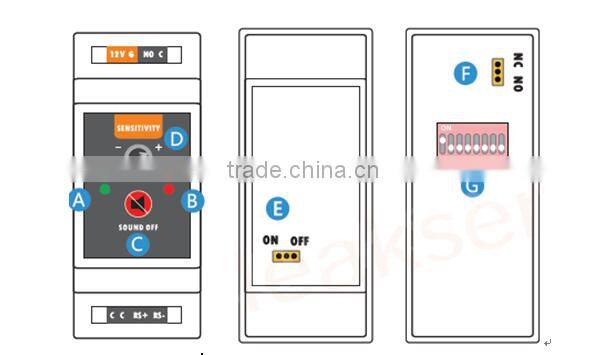

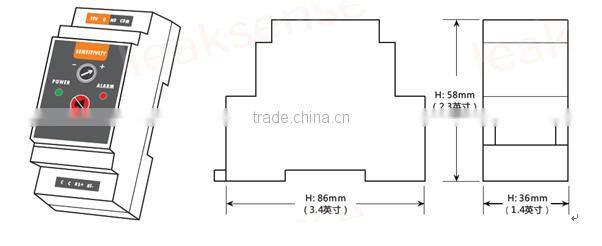

4. Leakage Detection Alarm Module Function

A  Power operation indicator lamp(green LED)

    To show the system power connection status

B  Leakage indicator lamp(red LED)

    To show the system to detect leakage happen

C  Mute button(red button)

    To cancel the buzzing sound when alarm happend

D Sensitivity adjustment

   Clockwise+ to increase sensitivity, counterclockwise- to reduce   sensitivity

E Relay output signal swtich:ON Normally open,normally close

F Beeper switch: ON:open the beeper,  OFF:shut off the beeper

G DIP dial switch(factory default is 1)

    8 bit device address code switch, on: normally on status

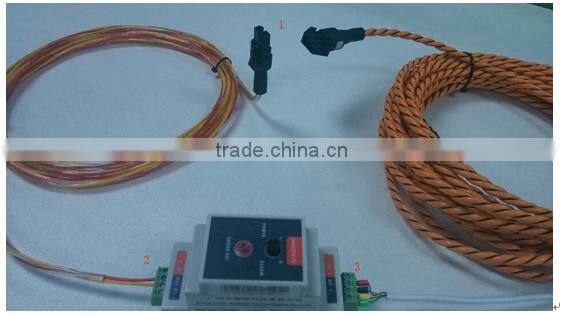

5. Wiring Instruction

1. Lead-out line and leakage cable plug connection

2. 4 terminals: C, C, RS +, RS -, lead-out line connect to C, Cthis two terminals, to the head of the C, C on the two terminals, both positive and negative, RS +, RS - no connection.

3. 4 terminals:12V,G,NO,C,12V is the power anode , G is power cathode, NO is the normally on end of switch quantity, C is COM end of switch quantity

* Note:Connection terminal specification is 18AWG(1mm2)

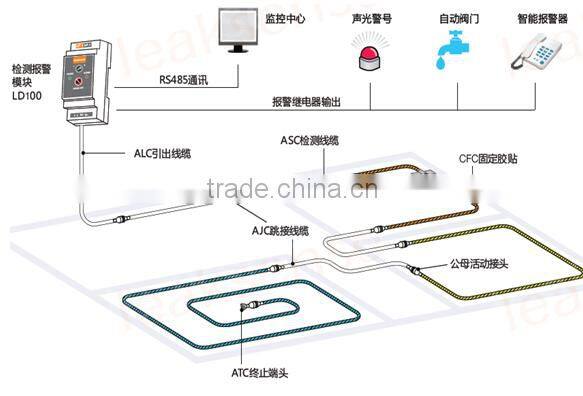

6. System Connection
