Mains Branch-switch Detector

Mains Branch-switch Detector

1. Product Introduction

The Smart Electricity Switch Monitor is an acquisition module for remote switch quantity, it support to capture signals like dry contact switch quantity, source switch quantity, AC switch quantity etc. This module is mostly used for the switch quantity capturing in the place like server room/data center monitoring, industrial control or other distributed data. Its reported port use RS485 communication bus and standard Modbus-RTU general protocol, which is easily integrated to the 3th party application system.

2. Product Specification

2.1 Function

•   Status indicators: RUN LED flash: power-on and self inspection pass; COMM LED        flash: RS485 is communication;
•   RS485 Rate: 1200 ~ 19200 BPS;
•   Photoelectric isolation, Isolation Voltage: 3750 VRMS;
•   External Port: EMC design, with strong anti-interference and long-term stability;
•   Built-in double watchdogs, the module can recover automatically under any interference;
•   Wiring Port: External 10 bits terminals and can easily remove the attachment;
•   Standard DIN rail installation mode, convenient for installation.

2.2 Technical Parameters

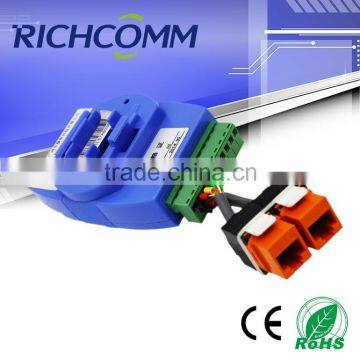

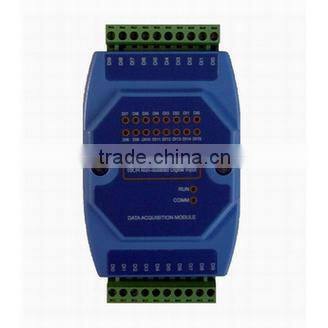

3. Product Appearance

4. Product Size(Precision±3mm)
