SMS Integration Power/Environment Monitoring System(Sitepro) Server Room Data Center Power Environment Monitoring System

Overview

SitePro is a powerful one-stop power environment system monitor for single server room, it specially designed for middle-small server room, with high integration of hardware and software, support one-stop management for power system like(UPS, precision air conditioning, power distribution, generator, etc), at the same time support one-stop enviornment management for temperature, humidity, smoke, water leakage, door/window contact, infrared detection, when abnormal alarm happend, the monitoring system will give multi alarm notifications like, SMS, sound light, voice dialing, email etc, with an advanced mechanism solution could help to sweep away the hide danger in server room.

Product Function

• Support SNMP V2 protocol, RFC1628 MIB, XPPC MIB;

• Built-in WEB server to achieve HTTP access;

• Multiple compatibilities of various brands and types of UPS, precision air condition, precision

power distribution cabinet, generator, etc;

• Built-in rechargeable battery which can be continuous running for 8 hours when power outage;

• Support history events and data storage ( expansion by SD card capacity);

• Support to extend 8 channels of dry contact signal input(Such as smoke, water leakage, door

contact, etc);

• Support to extend 24 channels of temperature and humidity detection and 8 general air condition

infrared control;

• Support sound light alarm, SMS, E-mail alarm and SNMP Trap;

• Support multiple users authority management;

• Support DHCP;

• Support scheduled task;

• Support TELNET, WEB page configurations;

• Support network upgrade, USB upgrade.

Ports Introduction

Network Diagram

Dimension

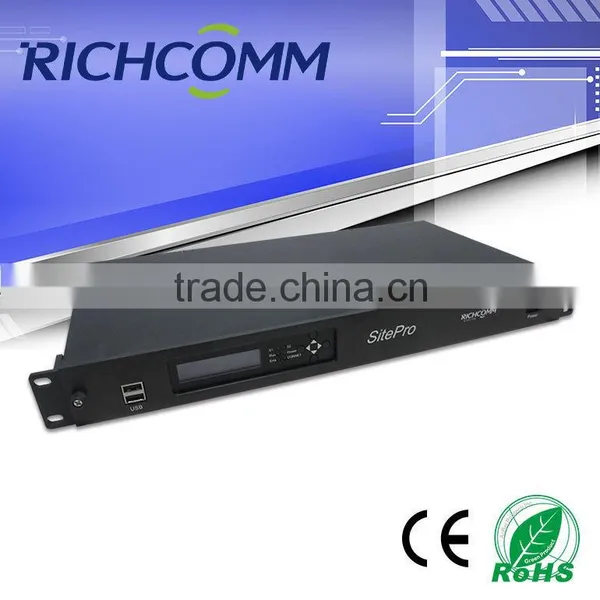

1U 19 inch elegant design

Monitoring Interface

 Technical Parameters
