Overview
Netmatelll EXT is a mini-type monitor for UPS & environment parameters system, it supports multi-brand and multi-type of UPS, at a same time can easily add on environment parameters detect like temperature, humidity, smoke, leakage, motion, door contact, etc, when abnormal situation happens, it will rapidly give email, sound light alarm notification.
Product Function
l Support advantage encryption protocol such as HTTP, HTTPS, SSL, SSH, SNMPV1V2cV3;
l Support telnet, supper terminal, WEB page configuration;
l Compatible with multi-brand and multi-type of UPS;
l Support to add on 2 pieces of Temp&Humid sensors via RS422/RS485 ports;
l With 4 digital input terminals, support to add on dry contact type detectors;
l With 2 digital output terminals, support to add on relay output control;
l Support SNMP trap,E-mail alarm notification;
l Support IPV4/IPV6
l Support scheduled task(regular self-testing, switch on/off);
l Support history events and data record storage;
l Comprehensive event handle( including event record and notification);
l Comprehensive managing function( data logs, SNTP and task schedule);
l Support IPV4/IPV6;
l Available to work with centralized software.

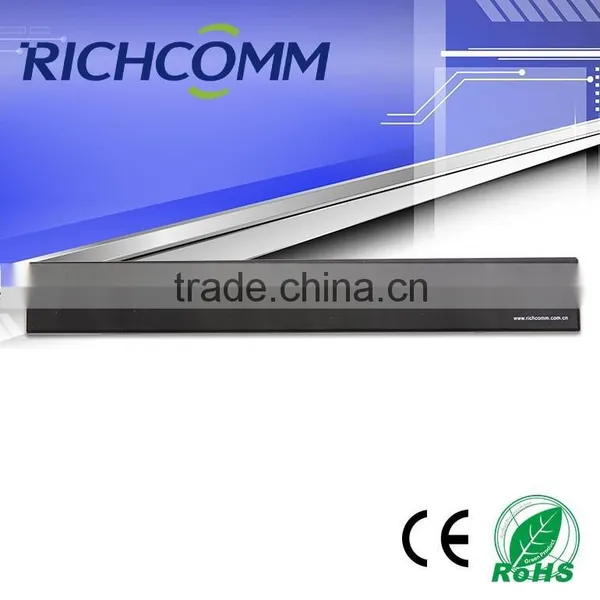

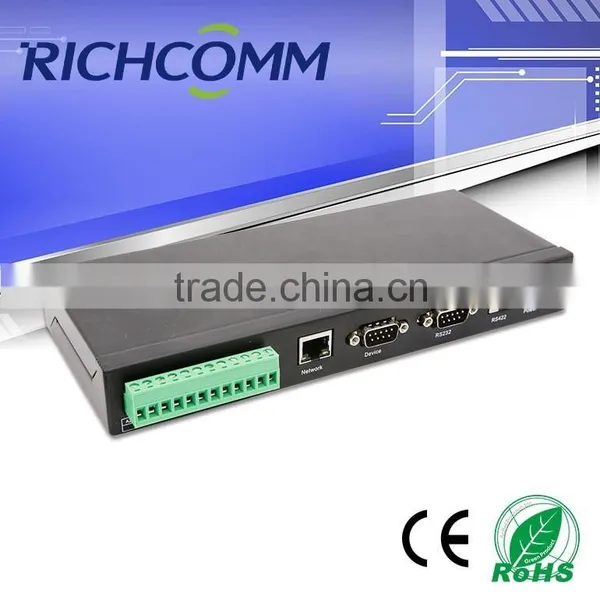

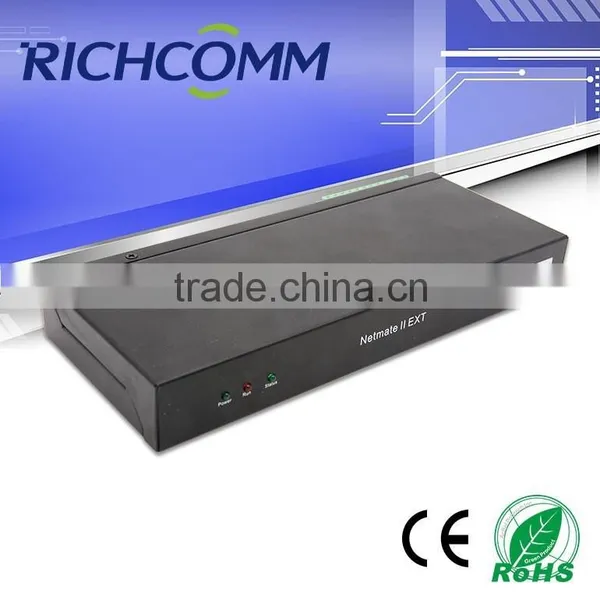

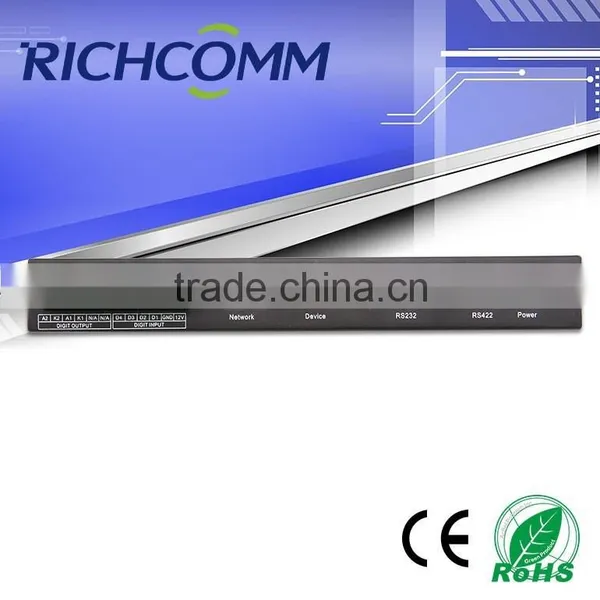

Appearance

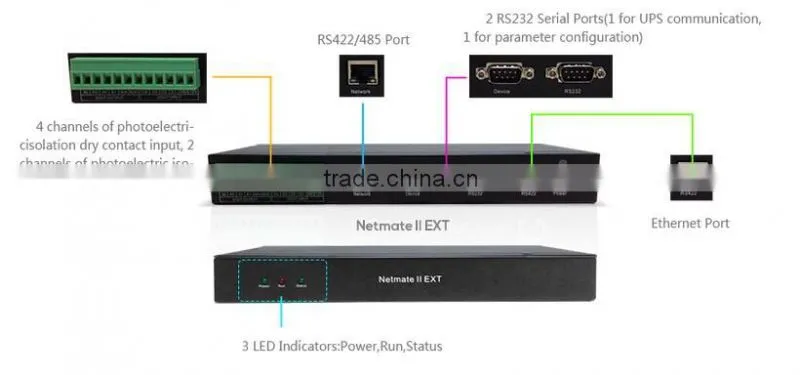

Ports Introduction

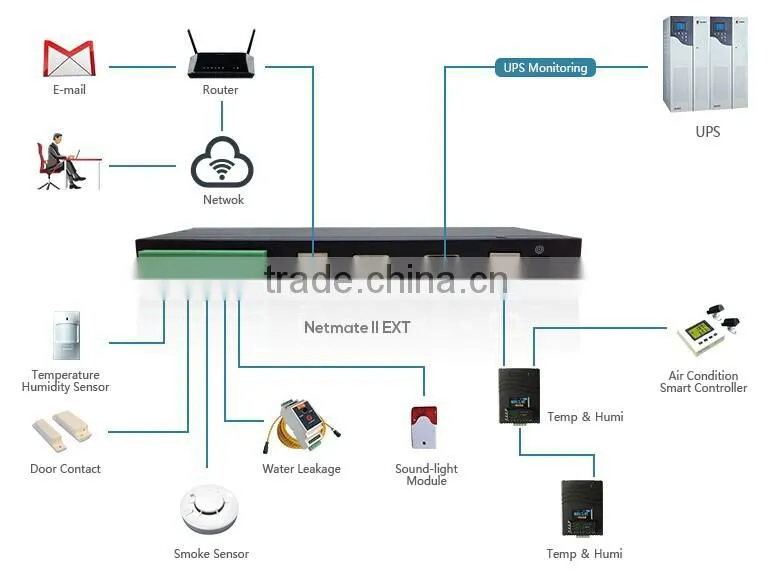

Network Diagram

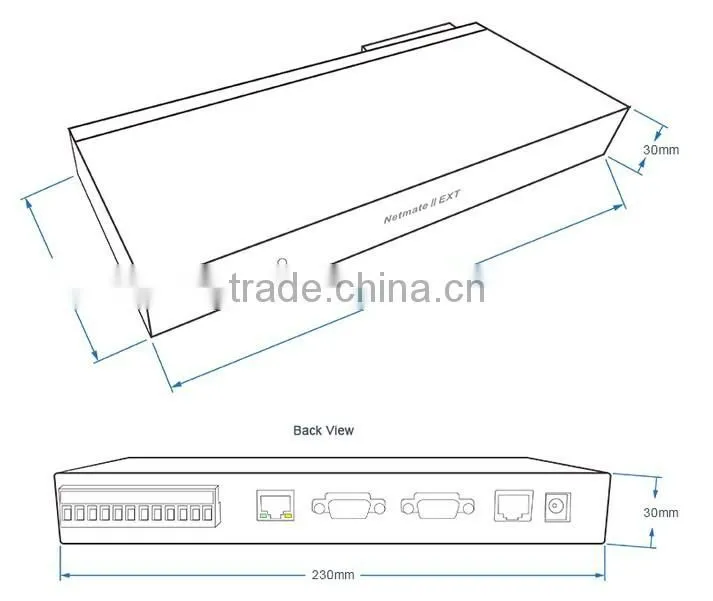

Dimension

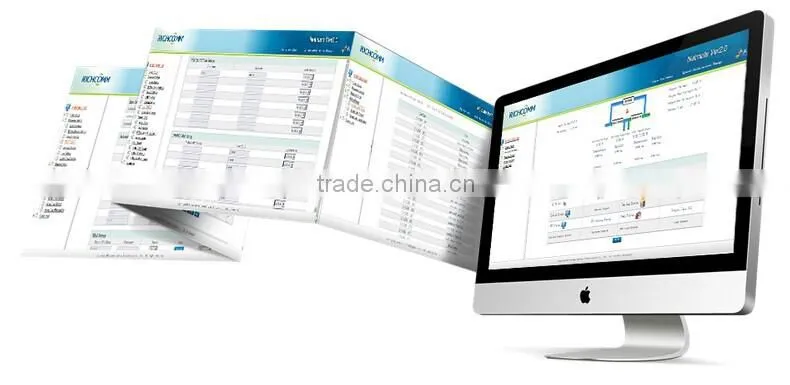

Monitoring Interface
Technical Parameters
CPU |
32-bit ARM RISC-based 50 MHz (CPU) |
||||
RAM |
16M byte SDRAM |
Flash ROM |
4M byte Flash |
||
Ethernet |
10/100Mbps High-speed Ethernet networks self-adaptive |
||||
Serial Ports |
2 RS232 ports; |
||||
Left RS232 port(connect UPS); | |||||
Right RS232 port(configure parameters); | |||||
1 RS422 port(Temp& Humid/General air condition infrared component) | |||||
DI/DO Terminals |
4 Digit input terminals (0-5V TTL level); |
||||
2 Digit output terminals (12VDC / 1A) | |||||
Browser Supported |
Internet Explorer,Netscape, Google Chrome |
||||
SNMP MIB |
Support MIBII (RFC1213, RFC1315, RFC1316)RFC1628, PPC MIB |
||||
Network Protocol |
TCP/IP, UDP, SNMP, Telnet, SNTP, HTTP, SMTP, DHCP, DNS, TFTP, ARP, ICMP, PPP, etc |
||||
Encrypted protocol |
HTTPS, SSL, SSH, SNMPV3, IPV6 |
||||
LED Indicators |
Power, Status, Ready, LAN 10/100MLink/Active |
||||
DC Input |
8-15V |
Power Consumption |
≤5W |
||
Running Environment |
Temperature: 0°C ~ 70°C Humidity: 10 ~ 85% |
||||
Other Configuration |
Real time system clock synchronization |
||||
Languages |
Real time system clock synchronization |
||||
Software Upgrade |
Network upgrade, serial port upgrade |
||||
System Security |
Provided filtering mechanism based on IP , and system operation, control and management of the user ID and password protection. |
||||
Safety Certificate |
CE,FCC |
||||
Opitional Accessories
SN |
Name |
|
M.N |
Function |
Connection |
|
1 |
Temp&Humid Sensor
|
RC77015 OLED Display |
Detect data center indoor temperature and humidity parameters, every 20 M²need to install 1pc |
RS422
|
|
|
RC77012 Digital Type | |||||
|
2 |
AirCon Infrared Component |
RC77404 |
Remotely control air condition on-off,with auto reboot when AC recover |
RS422
|
|
|
3 |
Smoke Sensor |
RC77146 |
Detect indoor data center monitor status, every 20 M²-30M²need to install 1pc |
DI (terminals) |
|
|
4 |
Infrared Sensor |
RC77147 |
Detect data center intrusion, motion status |
DI (terminals) |
|
|
5
|
Door contact |
RC77424 |
Detect door or window on/off status |
DI (terminals) |
|
6 |
Switching Value Transmitter |
RC77754 |
Detect on-off status of air condition/ new fan |
DI (terminals) |
|
7 |
Sound Light Sensor |
|
RC77412 |
Give sound light alarm notification |
DO (terminals) |
|
8 |
Water Leakage Sensor
|
RC77106 (Non-Locating) |
Detect data center water leakage status, work with water leakage cable, cable (5/10/15/20/30meter)optional, support length custom |
DI (terminals)) |
Typical Application
Data Center Monitoring Management, UPS Monitoring, Server Room Monitoring, Environment Monitoring, Networking Monitoring, IT Solution
