Battery Monitoring System:for Lead Acid Battery & VRLA Battery Monitoring

Overview

Batt Manager supports UPS battery detection of its voltage, current, temperature; it accurately

report the attenuation ratio of battery capacity, predict discharge time, discharge backup time,

regular charge/discharge promote etc. Batt manager greatly helps users to grasp the accordance

battery status and data so that users can deal with issues promptly. It increases work reliability

of battery, extend battery life and also make full use of the power supply capacity of battery.

 Features

1.Smart Self-learning Function

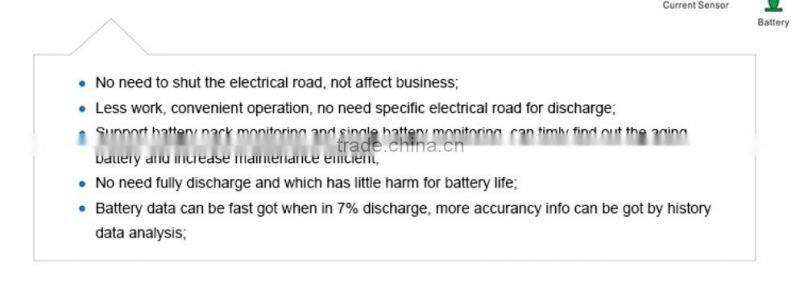

2.Excellent Online Internal Resistance Monitoring

3.Smart Self-learning Function Web Interface

• Learn and record every battery discharging status, provide accurancy parameter predict for the next battery discharging.

4.Visual Web Management Function

•  Through web browser to visit system, easily and convenient check the monitoring info and do function setting;
• One-key finish management setting, more fast and easier for setting and use.

5.Various Report Function(check history events, export reports, check system logs and inspection records)

• Anytime anywhere catch the battery operation status, can provide compare and anaysis for battery failtures

6.Various Alarm Self Definition Setting

•  Can according to personal demands to choose suitable alarm objects,levels, ways, meanwhile, system provide alarm test to ensure valid alarm.

Functions

• Built-in WEB server to achieve HTTP access;

• Built in dual-frequency GSM/GPRS module(900/1800 MHZ);

• Realtime monitoring for battery operation to get early warning for failture, and support battery

failture detection and battery pack management;

• Advanced mathematical algorithm to provide accurate information for battery operation;

• Smart self-learning function;

• Modular design, the host can be separately operated as a platform of battery operation maintenance

and management;

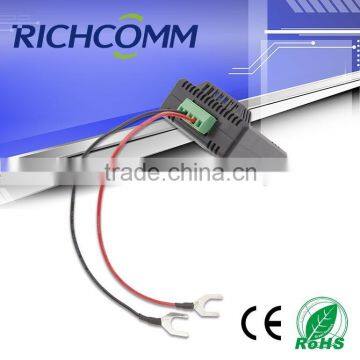

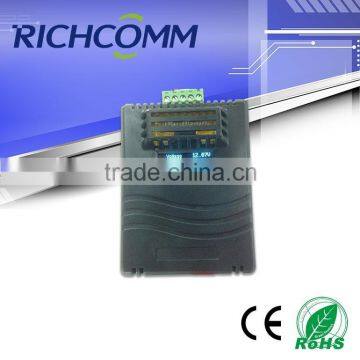

• Battery detection intelligent terminal(BDIT) adopts unitbus mode, with its easy construction and

high reliability can monitor hundreds of batteries;

• Distributed design, BDIT unit-bus support the distance from host reach a length of 75M;

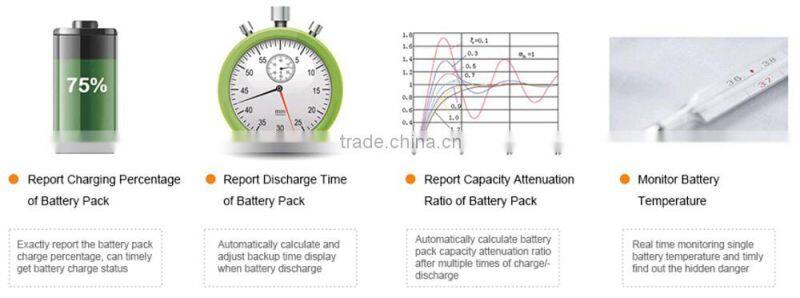

• Report the charging percentage of battery pack;

• Report the attenuation ratio of battery pack;

• Report the discharge backup time of battery pack;

• Support to use RS232 port to handle parameter configuration or program upgrade for the host,

also support to remote configuration or upgrade via network card. The RS232 port will auto off

when plug-in network card;

• Support to use wireless to query the running status of battery pack, at the same time support

remote query by network card;

• Support to connect 6 channels of BDIT( battery detection intelligent terminal) and every channel

can connect up to 40 BDIT, total up to 240;

• Support SMS, Email alarm;

• Support alarm battery battery detection;

• Max support 240 batteries(2V/6V/12V)monitoring, for 1-6 packs;

• Support to detect voltage, current, temperature and resistance of each battery;

• Support SNMP management function.

 Appearance

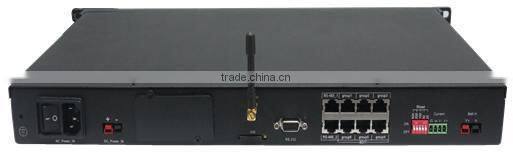

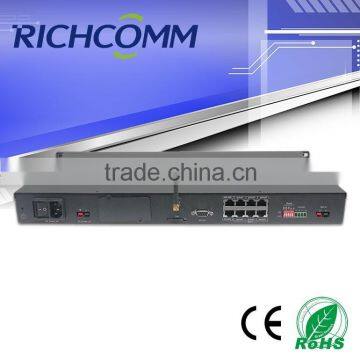

Back View

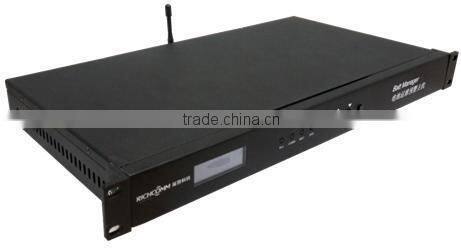

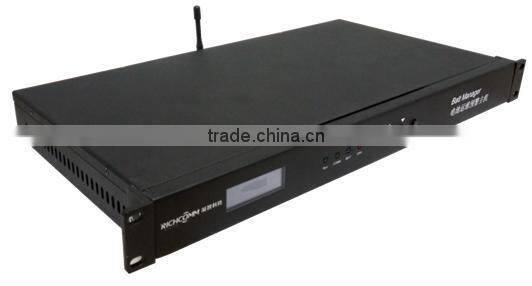

Front View

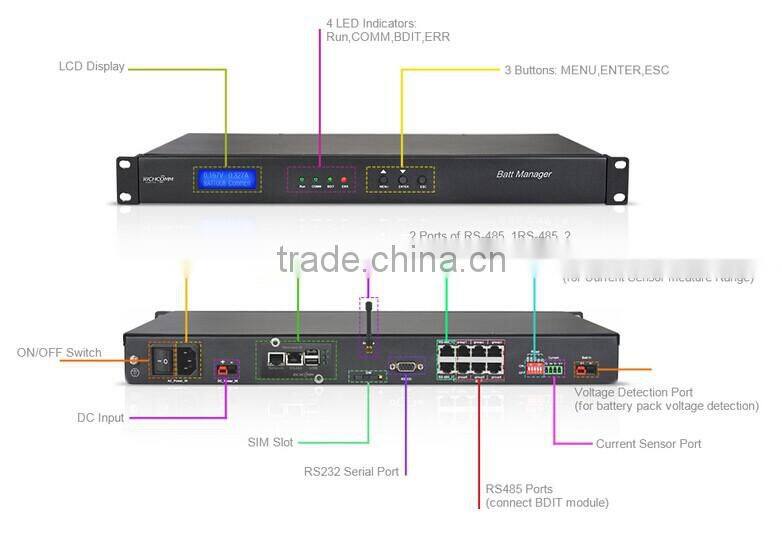

 Ports Introduction

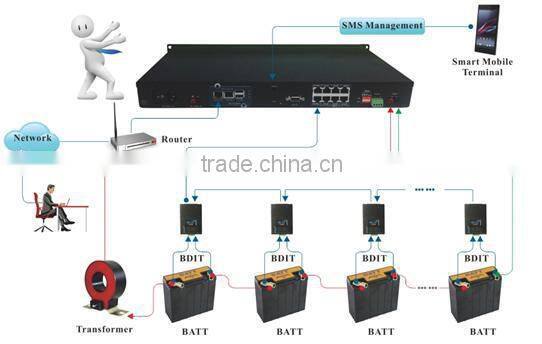

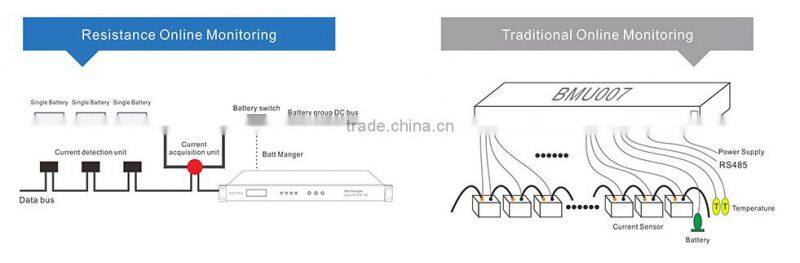

Network Diagram

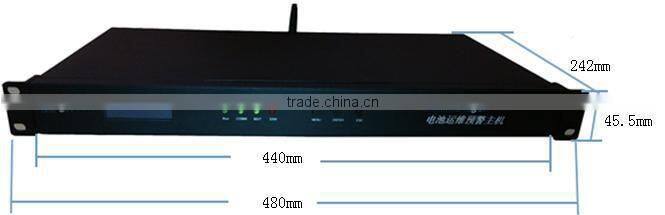

Dimension

1U 19 inch elegant design

Interface

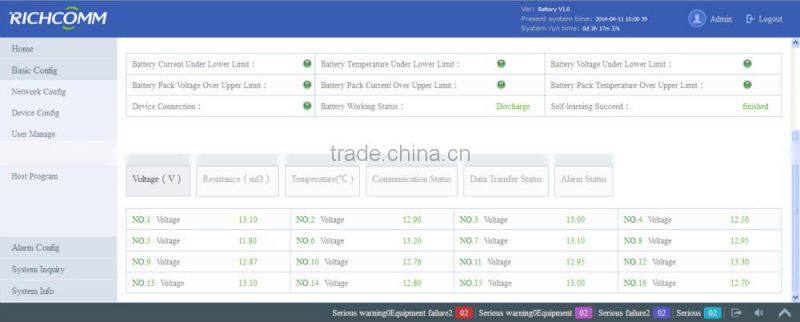

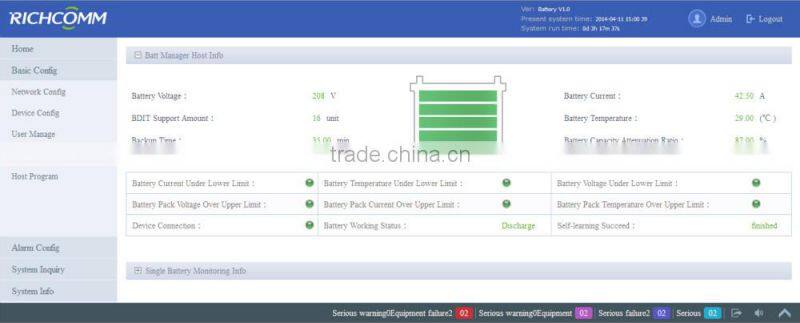

 <Home page>

 <Home page>

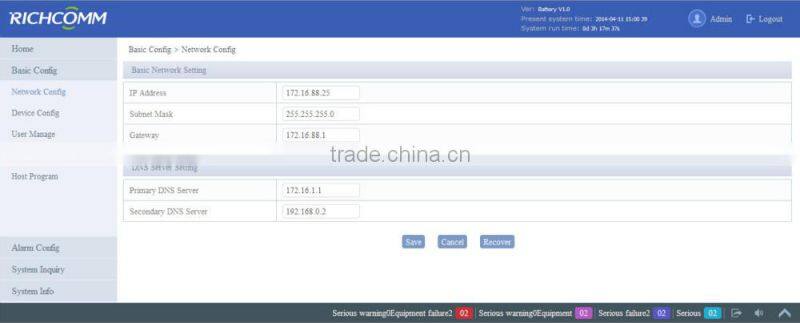

 <network setting>

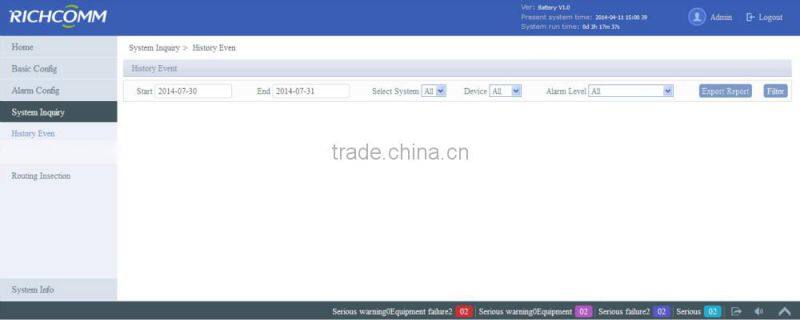

<history record>

Technical Parameters

Batt Manager(Host)
