Battery Testers UPS Wireless Battery Monitoring System

Overview

Wireless battery monitoring system support UPS battery pack monitoring of  voltage, current, capacity, backup time, attenuation rate, temperature, etc, and support single battery monitoring of voltage, internal resistance, temperature etc.

This system can accurately report battery capacity attenuation ratio, predict discharge time , discharge backup time, regular charge/discharge promote etc, greatly help administrators understand the battery quality and catch UPS battery operating status, so will help to do efficient  maintenance and find out the hidden danger in early time. Also, Richcomm use the newest zigbee connection, which is more easier and convenient for installation and maitenance. The wireless battery monitoring system no doubt is your best chance for UPS battery monitoring and maintenance.

 Features

1.Smart Self-learning Function

2.Excellent Online Internal Resistance Monitoring

3.Smart Self-learning Function Web Interface

• Learn and record every battery discharging status, provide accurancy parameter predict for the next battery discharging.

4.Visual Web Management Function

•  Through web browser to visit system, easily and convenient check the monitoring info and do function setting;
• One-key finish management setting, more fast and easier for setting and use.

5.Various Report Function(check history events, export reports, check system logs and inspection records)

• Anytime anywhere catch the battery operation status, can provide compare and anaysis for battery failtures

6.Various Alarm Self Definition Setting

•  Can according to personal demands to choose suitable alarm objects,levels, ways, meanwhile, system provide alarm test to ensure valid alarm.

Functions

• Built-in WEB server to achieve HTTP access;

• Built in dual-frequency GSM/GPRS module(900/1800 MHZ);

• Realtime monitoring for battery operation to get early warning for failture, and support battery

failture detection and battery pack management;

• Advanced mathematical algorithm to provide accurate information for battery operation;

• Smart self-learning function;

• Modular design, the host can be separately operated as a platform of battery operation maintenance

and management;

• Battery detection intelligent terminal(BDIT) adopts unitbus mode, with its easy construction and

high reliability can monitor hundreds of batteries;

• Distributed design, BDIT unit-bus support the distance from host reach a length of 75M;

• Report the charging percentage of battery pack;

• Report the attenuation ratio of battery pack;

• Report the discharge backup time of battery pack;

• Support to use RS232 port to handle parameter configuration or program upgrade for the host,

also support to remote configuration or upgrade via network card. The RS232 port will auto off

when plug-in network card;

• Support to use wireless to query the running status of battery pack, at the same time support

remote query by network card;

• Support to connect 6 channels of BDIT( battery detection intelligent terminal) and every channel

can connect up to 40 BDIT, total up to 240;

• Support SMS, Email alarm;

• Support alarm battery battery detection;

• Each Batt Manager host support 240 nodes of single battery(2V/6V/12V)monitoring, for 1-6 packs;

• Support to detect voltage, current, temperature and resistance of each battery;

• Support SNMP management function.

 Appearance

Back View

Front View

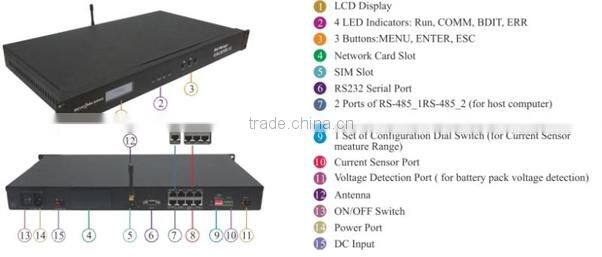

 Ports Introduction

Network Diagram

Dimension

1U 19 inch elegant design

Interface

 <Home page>

 <Home page>

 <Network Setting>

<History Record>

Technical Parameters

Batt Manager(Host)

WBDIT(Wireless Battery Detection Intelligent Terminal)
