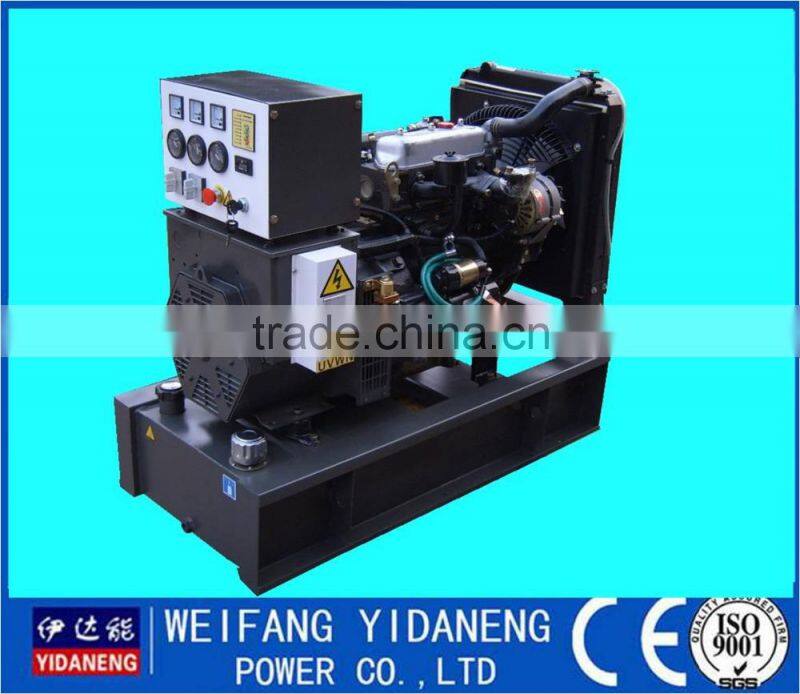

china yangdong 30 kw diesel generator supply
These generator price select famous Chinese engine brands such as yangdong,Weifang, shang chai, jichai
which have wide range of power capacity, good starting performance and excellent dynamic performance.
These generator price can provide power electricity for fieldwork, high-rise building,shoping malls,mining oil
fields roads ports and rural places and so on.
| DETAILED PARAMETERS | ||
| Generator | Genset Model | YDNY-30 |
| Rated Frequency | 50HZ | |
| Power Factor | 0.8 | |
| Rated Voltage | 400/230V | |
| Rated Power (KW/KVA) | 30/37.5 | |
| Standby Power (KW/KVA) | 33/41.25 | |
| Phase/Wire | 3Ph, 4Wr | |
| Overall Size (mm) | 1750×750×1050 | |
| Weight (kg) | 820 | |
| Diesel Engine | Model | YD4102D |
| Type | Water-cooled, inline, 4-stroke, direct injection, wet cylinder liner, 1500rpm |
|
| Rated Power (kw) | 33 | |
| Intake Type | Natural | |
| No. of Cylinder | 4.L | |
| Bore×Stroke (mm) | 102×118 | |
| Piston Speed (m/s) | 6 | |
| Compression Ratio | 16.5:1 | |
| Mechanical Governor Rated | ≤5% | |
| Electronical Governor Rated | ≤1% | |
| Noise Level (dBA) | ≤96 | |
| Exhaust Temperature (℃) | 475 | |
| Lube Oil Capacity (L) | 11 | |
| Rated Fuel Consumption (L/h) | 5 | |
| Displacement (L) | 4.3 | |
| Alternator | Model | 184 E |
| Rated Power (KW/KVA) | 30/37.5 | |
| Power Efficiency | 86.60% | |
| Voltage Regulation | ≤±1.5 | |
| Excitation Type | Brushless | |
| Insulation Class | H | |
| Control System | Model | Smartgen6110 |
| Working Voltage | DC8.0V to DC35.0V, continuous | |
| Overall Dimensions | 197 mm x 152 mm x 47mm | |
| Panel Cutout | 186mm x 141mm | |
| Working Condition | Temperature: (-25~70)ºC; Humidity: (20~90)% | |
| Weight | 0.56kg | |
Company Information
Weifang Yidaneng Power Co., Ltd. is located in Weifang city, Shandong province, China.
Our factory covers an area of 36,000 square meters, owns 150 staff. The company consists
R&D department, Production department, Technology department, Quality inspection department,
Sales department, and After-sales department. As a 15 years experienced manufacturer of all kinds
generator sets, we mainly supply the below products:
1. Diesel gensets (Open, Silent & Trailer type)
2. Natural gas gensets (Open, Silent & optioanla CHP)
3. Biogas gensets (Open, Silent & optioanla CHP)
- With the jacketed high-pressure fuel pipe, it is safeand reliable.
- It makes the high efficiency and compact space for the seawater pump with the form of grea transmission.
- It's safe and stable for the electrical system with stucture.
- The engines adopt the electrical governing system which creats the stable governing capability.
- And other departments. All departments have clear responsibilities, and form the good corporate style and corporate culture.
- 1. Since gen-set reached the agreed destination, guaranteed within 12 months or 1500 hours.
- 2. We take charge of all troubles caused by gen-sets fault and repair according to the regulation stipulated by original plants.
- 3. Factors not accordance with the regulation of original plants such as fragile parts, daily consumed components, wrong operating, lack of maintenance are not include in the quality guarantee.
- 4. High performance products;
- 5. Professional technical adviser;
- 6. 1 year or 1500 running hours guaranty;
- 7. Effective after-sales service;
- 8. Free quick-wear parts
.
.
1. What kind of gas can be the fuel of your genset?
--Natural gas (CNG, LNG) or Biogas (Methane gas).
2. What' the MOQ?
--1 set.
3. What kind of package do you use in delivery?
--Less than whole container cargo, plywood case; whole container cargo, naked packing.
4. What's the warranty period?
--1 year or 1500 running hours, whichever comes first.
5. What kind of certificate can you offer?
--ISO, CE
6. Can we customize the genset?
--Yes, we can customize the color and style as your demands.
If you have any other question, please feel free to contact us!
