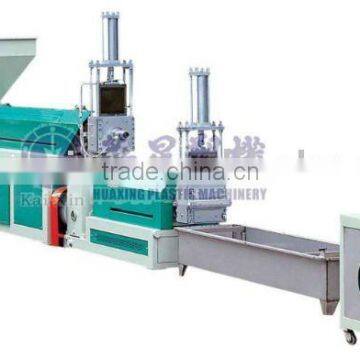

Waste Plastic Granulator

Name: Waste Plastic Granulator
Brand: KaiXin
SKU: 130575461
Availability: InStock

US$ 20,000 - 40,000 MOQ: 1 Set

Key Specifications

Place of Origin:

Guangdong, China

Brand Name:

KaiXin

Model Number:

HXSJ150/140-S

Guangdong Huaxing Plastic Machinery Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Huangpu port

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Guangdong, China

Brand Name KaiXin

Model Number HXSJ150/140-S

Specifications

waste plastic granulator
1.Out put :ABS.PS:400-480kg/h;PP,PE:280-350kg/h
2.Double stage
3.Single screw
4.18years experience

waste plastic granulator

Technical Details :

	Item	HXSJ150/140-S
Main extruder	Screw dia	Ø150mm
	Screw Length	4000mm
	Screw L/D	25:1
	No of exhauxing hole	Double
	Material for screw	38CrMAlA
	Material for barrel	40Cr
	Gear box	375# low niose gear box
	Main Motor	90kw-4pole
	Motor control means	Independant auto pressure reduction start control
	Heating zone	10zone
	Heating power	65kw
	Heating means	Stainless steel and quartz heater
	Cooling means	Copper tube with circular water
	Mode of mesh changing	Ø280*280mm double hydraulic screen exchanger

		...

	Item	HXSJ150/140-S
second extruder	Screw dia	Ø140mm
	Screw Length	1800mm
	Screw L/D	12:1
	No of exhauxing hole	Single
	Material for screw	45 steel
	Material for barrel	45 steel
	Gear box	45# low noise gear box
	Main Motor	30kw-4pole
	Motor control means	Triangle reduction control
	Heating zone	5zone
	Heating power	33kw
	Heating means	Stainless steel and quartz heater
	Cooling means	Copper tube with circular water
	Mode of mesh changing	Ø280*280mm double hydraulic screen exchanger
peripherics	Cutter	27 knife alloy blade cutter , frequency control
	Dewater device	Vertical dewater device,driven power 4kw
	Storage hopper	Stainless steel square type storage hopper
	Hydraulic drive system	Double valve hydraulic station, power 4kw
	Funnel	800*800 stand funnel
	Fixed Feeder	Single screw fixed feeder ,with 1.5kw motor ,frequency control
Total power		230kw
