Help CenterLovol 1003g Generator
Related Products
Specifications
lovol 1003g generator1.8 hours testing
2.OEM lovol factory
3.ISO.CE
4.Fast delivery,Globle need
3 phase Lovol diesel generator set 22kw-112kw
| Genset | Prime power | Standby power | Engine | prime power | Alternator model | |||||
|
KW | KVA | KW | KVA | model | KW | kva |
|
||
| GHPS-22 | 22 | 27.5 | 24.2 | 30.25 | 1003G1A | 26 | 32.5 | PI144F | ||
| GHPS-22 | 22 | 27.5 | 24.2 | 30.25 | 1003G | 28 | 35 | PI144K | ||
| GHPS-30 | 30 | 37.5 | 33 | 41.25 | 1003TG1A | 38 | 47.5 | PI144K | ||
| GHPS-34 | 34 | 42.5 | 37.4 | 46.75 | 1003TG | 40 | 50 | PI144K | ||
| GHPS-34 | 34 | 42.5 | 37.4 | 46.75 | 1003TG-1 | 40 | 50 | PI144K | ||
| GHPS-34 | 34 | 42.5 | 37.4 | 46.75 | 1004G | 40 | 50 | UCI224C | ||
| GHPS-34 | 34 | 42.5 | 37.4 | 46.75 | 1004G-1 | 40 | 50 | UCI224C | ||
| GHPS-50 | 50 | 62.5 | 55 | 68.75 | 1004TG1A | 52 | 65 | UCI224E | ||
| GHPS-58 | 58 | 72.5 | 63.8 | 79.75 | 1004TG | 65.7 | 82.125 | UCI224G | ||
| GHPS-58 | 58 | 72.5 | 63.8 | 79.75 | 1004TG-1 | 65.7 | 82.125 | UCI224G | ||
| GHPS-70 | 70 | 87.5 | 77 | 96.25 | 1006TG1A | 84.3 | 105.375 | UCI274C | ||
| GHPS-70 | 70 | 87.5 | 77 | 96.25 | 1006TG1A-1 | 84.3 | 105.375 | UCI274D | ||
| GHPS-75 | 75 | 93.75 | 82.5 | 103.125 | 1006TG1A | 84 | 105 | UCI274D | ||
| GHPS-80 | 80 | 100 | 88 | 110 | 1006TG2A | 86 | 107.5 | UCI274C | ||
| GHPS-80 | 80 | 100 | 88 | 110 | 1006TG2A | 92.3 | 115.375 | UCI274C | ||
| GHPS-80 | 80 | 100 | 88 | 110 | 1006TG2A-1 | 92.3 | 115.375 | UCI274C | ||
| GHPS-100 | 100 | 125 | 110 | 137.5 | 1006TAG1A | 106 | 132.5 | UCI274D | ||
| GHPS-112 | 112 | 140 | 123.2 | 154 | 1006TAG | 121 | 151.25 | UCI274E | ||
| GHPS-112 | 112 | 140 | 123.2 | 154 | 1006TAG-1 | 121 | 151.25 | UCI274E | ||
Main Assemblies
1, Diesel Engine (Lovol Brand)
2, Generator/Alternator (With AVR)
3, Standard Control Panel (Ordinary Type, LCD Type, ATS Type )
4, Common Base with Canopy(Including Base Oil Tank)
Standard Accessories
1, Starting Battery and Connector Wire
2, The Vibration Reduction Rubber Gasket
3, Silencer
4, Exhaust Elbow
5, 8-hour Oil Tank
6, Spare Part Case
7, Technical Data
8, Water Tank Radiator,The belt-driving Cooling Fan ,Fan Safety Shield
9, Dry-type Air Filter
10, Fuel Filter
11, Lubricating Oil Filter
12, Starting Motor
13, Self-charging Generator
14, Frequency Meter/Water-thermometer/Oil Pressure Gauge/Battery Voltmeter
Optional Accessories
1, Preheating Start System
2, Diesel Engine Thermal Protection System
3, Jacket Heater
4, Speeding, High Temperature, High Oil Temperature, Low Pressure Alarm System
5, Breaker
6, Antifreeze Liquid
7, Ground Wire
8, Water Temperature Safety Device
9, Machine Oil
Service Conditions
-- Ambient Temperature: -25°C~40°C
-- Altitude: not exceed 1000 Meter
-- Rated Voltage: 230/380V or any voltage between 220-440V
-- Rated Frequency: 50Hz/60Hz
-- Insulation Class: B/F/H
-- Working Duty: S1(Continuous)
-- Humidity: Lower than 95%

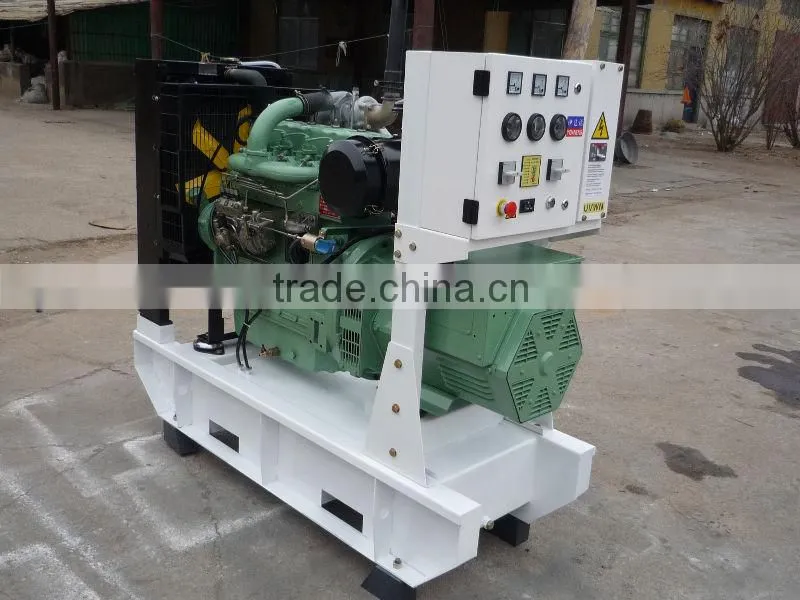

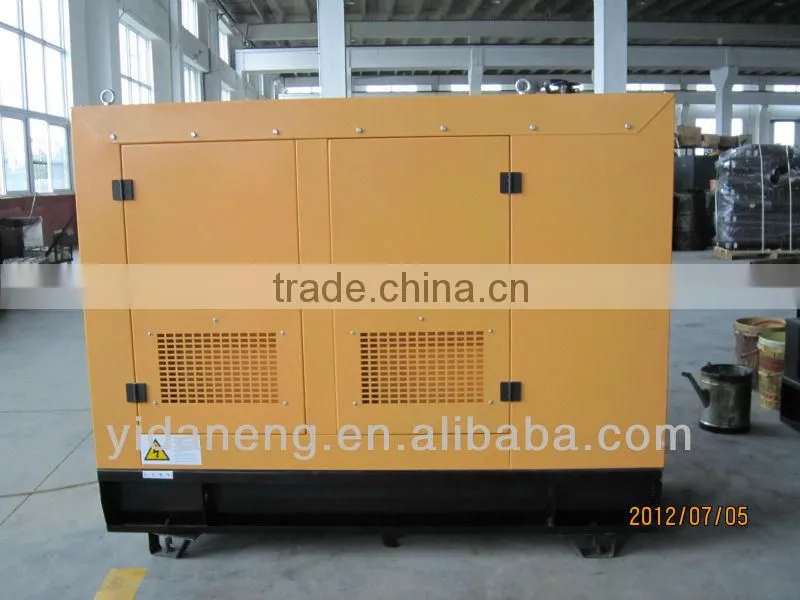

products photos:
