Lovol 50kw Electric Natural Gas Generator With

Name: Lovol 50kw Electric Natural Gas Generator With
Brand: YIDANENG
SKU: 130571605
Availability: InStock

US$ 5,000 - 10,000 MOQ: 1 Set

Key Specifications

Place of Origin:

Shandong, China

Brand Name:

YIDANENG

Model Number:

YDN-50GFZ

Weifang Yidaneng Power Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Qingdao China

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Shandong, China

Brand Name YIDANENG

Model Number YDN-50GFZ

Output Type AC Three Phase

Speed 1500/1800rpm

Frequency 50/60HZ

Rated Power 50kw

Rated Voltage 230/400V

Rated Current 90A

Lovol 50kw Lovol natural gas generator

Product Description

*Main Specification :

DETAILED PARAMETERS
Generator	Genset Model	YDNL-50
	Rated Frequency	50HZ
	Power Factor	0.8
	Rated Voltage	400/230V
	Rated Power (KW/KVA)	50/62.5
	Standby Power (KW/KVA)	55/68.75
	Phase/Wire	3Ph, 4Wr
	Overall Size (mm)	2200×845×1650
	Weight (kg)	1020
Engine	Brand	Lovol
	Model	1006NG
	Type	Closed water-cooled,in line,4-stroke,1500RPM
	Rated Power(kw)	65
	Intake Type	Natural
	No. of Cylinder	6.L
	Bore×Stroke(mm)	100×127
	Piston Speed (m/s)	7.62
	Compression Ratio	10.5:01
	Mechanical Governor Rated	at most 5%
	Electronical Governor Rated	at most 1%
	Noise Level (dBA)	at most 95
	Exhaust Temperature (℃)	600
	Lube Oil Capacity(L)	11
	Rated gas Consumption(CUM/kwh)	0.36
Alternator	Model	ISD60
	Rated Power(KW/KVA)	50/62.5
	Power Efficiency	88.60%
	Voltage Regulation	at most ±1
	Excitation Type	Brushless
	Insulation Class	H

Product Overviews

Advantages of Lovol natural gas generator:

1	Stability, reliability and easy-service
2	Low operating and maintenance cost.naturalgas has a rich high profit, reserve with low cost and a high rate of return,low operation cost, supply of electricity and thermal power at the same time, low maintenance cost.
3	Widely used, location to meet customer needs
4	Easy-installation, easy-operation and maintenance
5	Longer life: Special design engine has longer life and overhaul time
6	Clean and environmental
7	To put anti-rust treatment 8.Global warranty

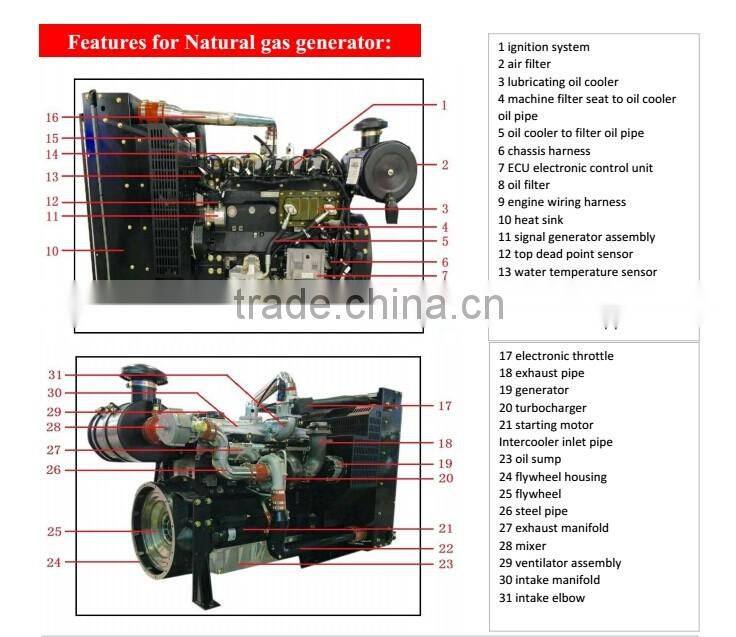

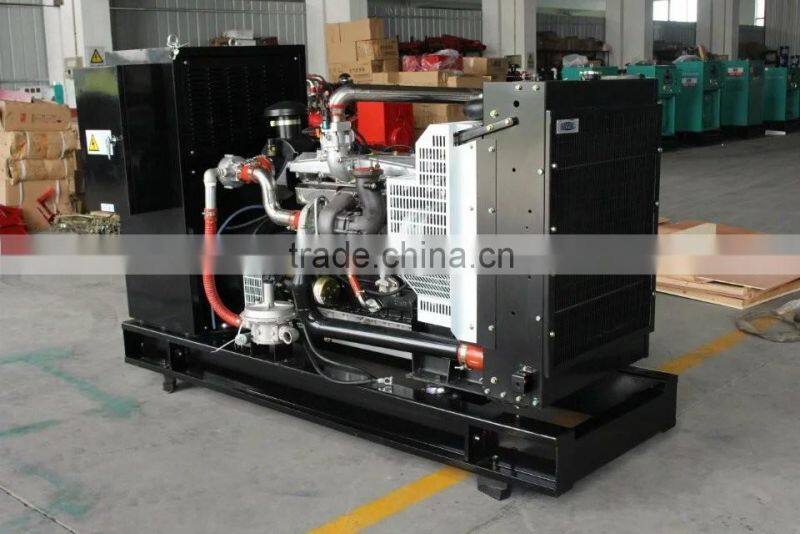

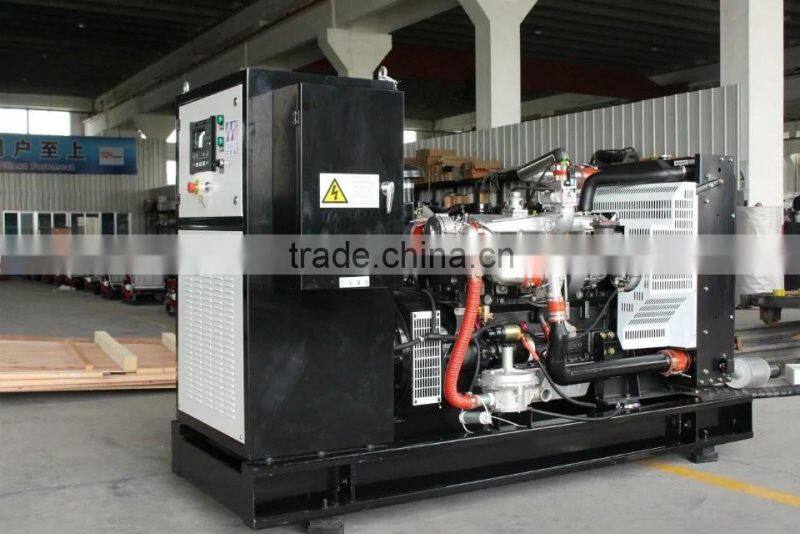

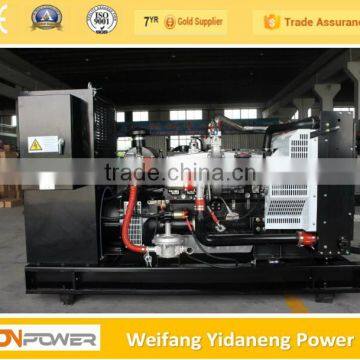

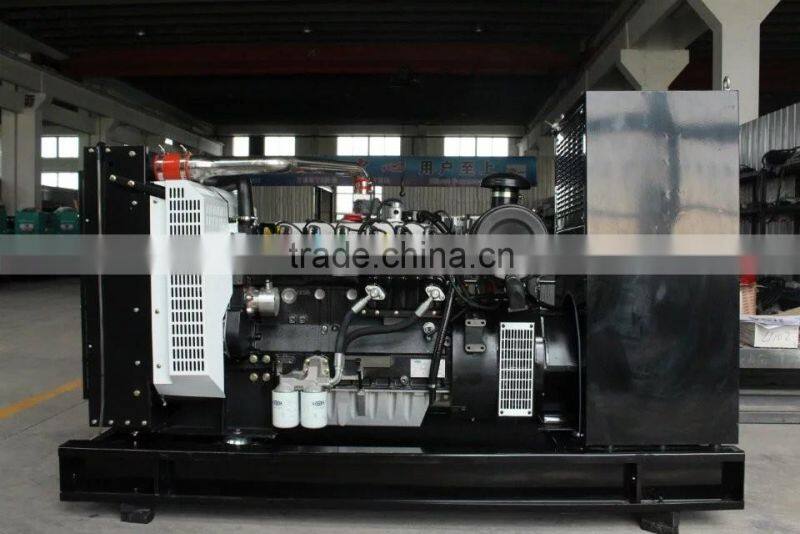

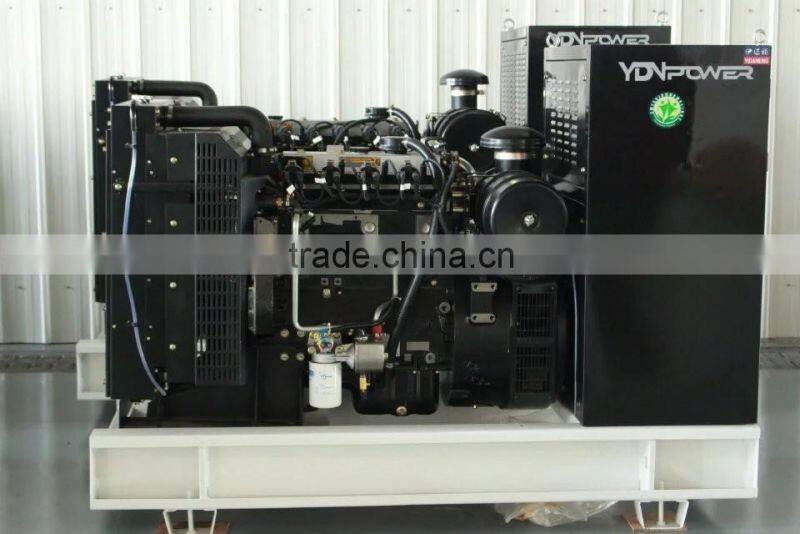

*Lovol Gas Generator Picture's Show :

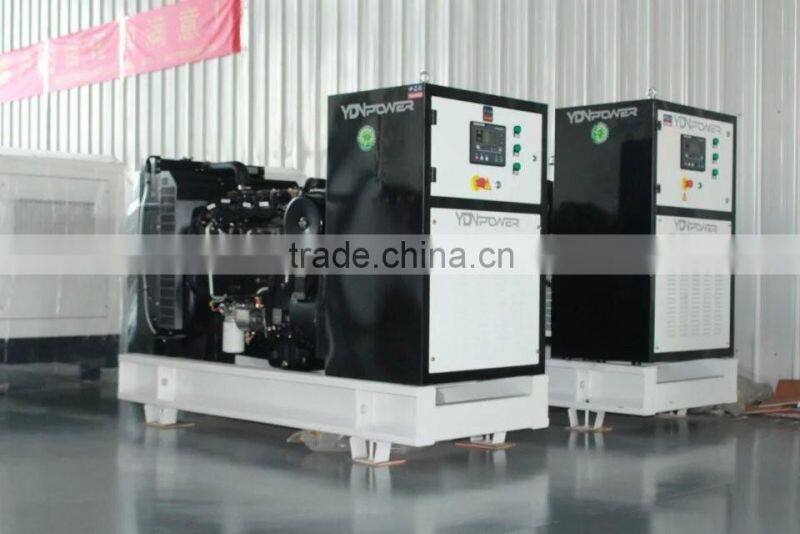

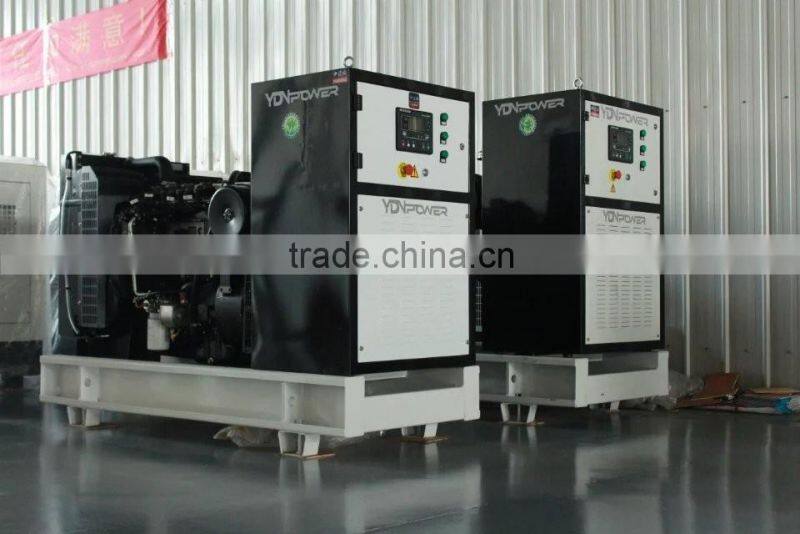

*Silent type natural gas generator:

Spare part

Packaging & Shipping

*Guarantee & Warranty
1.	1 year or 1500 running hours;
2.	Any trouble of breakdown caused by installation, design or material, we will take charge of repairment;
3.	Any trouble or breakdown of the easily damaged parts and other parts with cost price, and our engineers can help to repair the generator to work again.
4.	We will repair the fault report or compliant received with 2 hours after the reply. After receiving the city’s emergency services 12 hours field to reach the scene within 48 hours. (Service implementation of the agreement by foreign customers).
5.	During the warranty period, if the reason is because the machine itself or damage resulting from failure (excluding wear parts). We will be free for you to repair or replace parts. Outside the warranty period, we will change a fixed fee provision, spare parts price will be provided..
*Note: generator warranty for one year from the date of the first motor car 1500 hours. (Whichever comes first* )**
