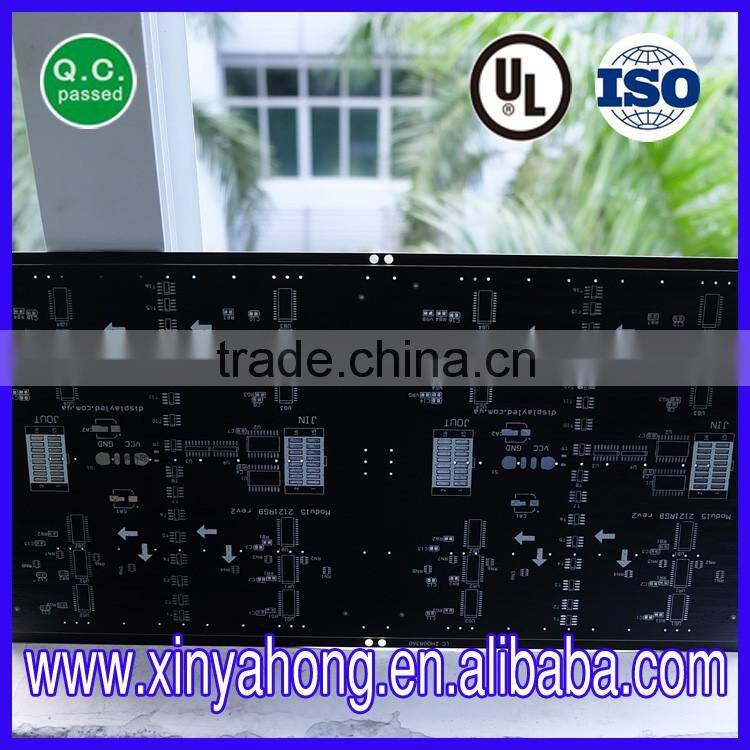

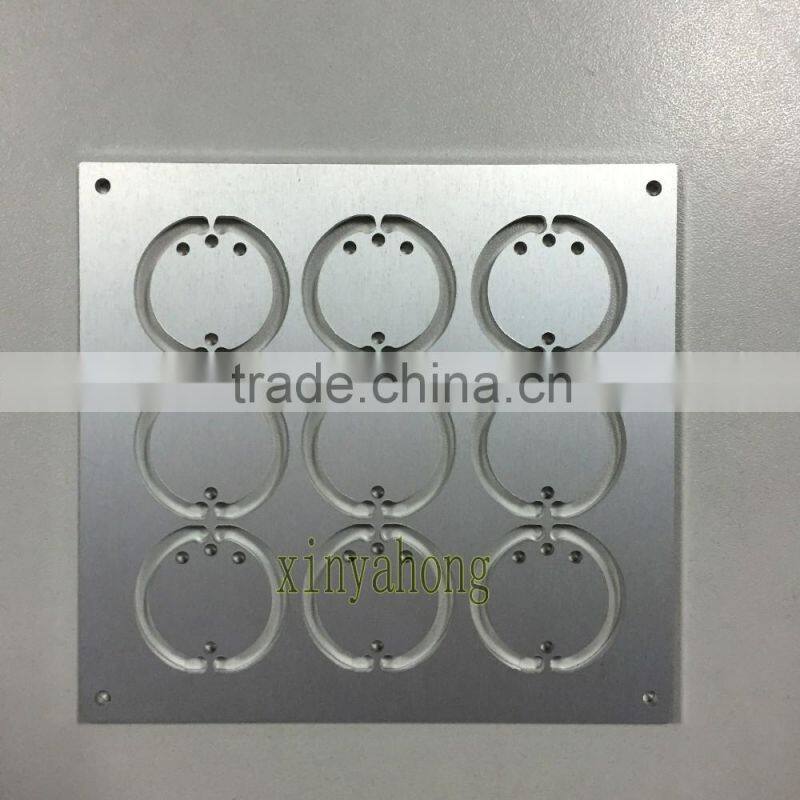

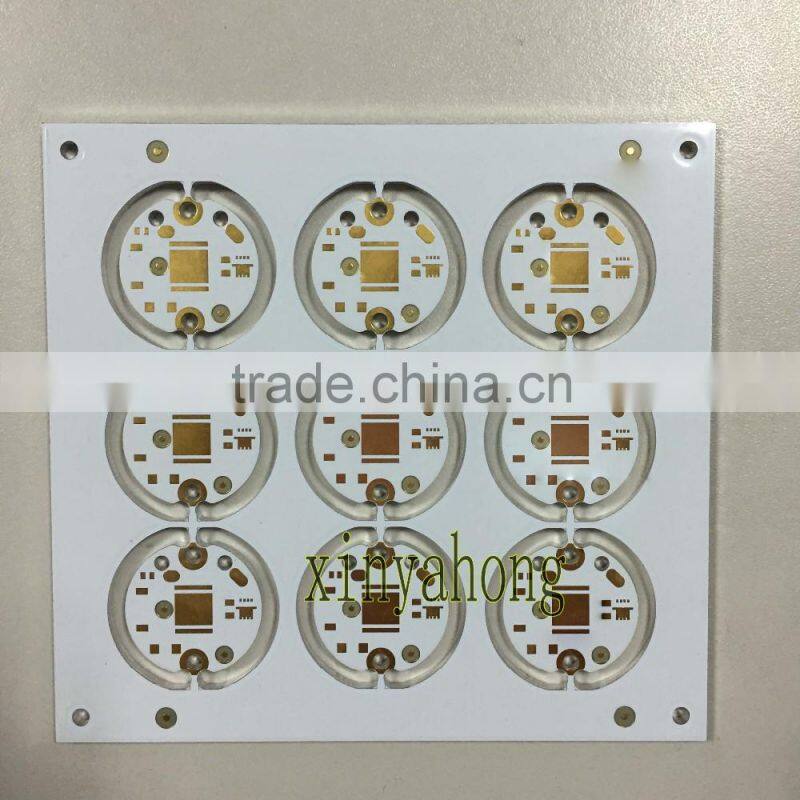

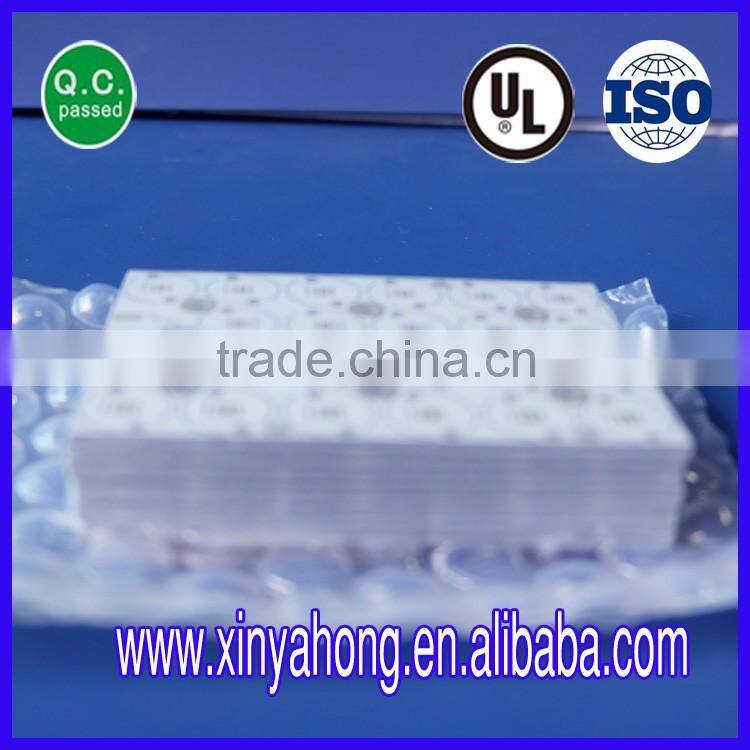

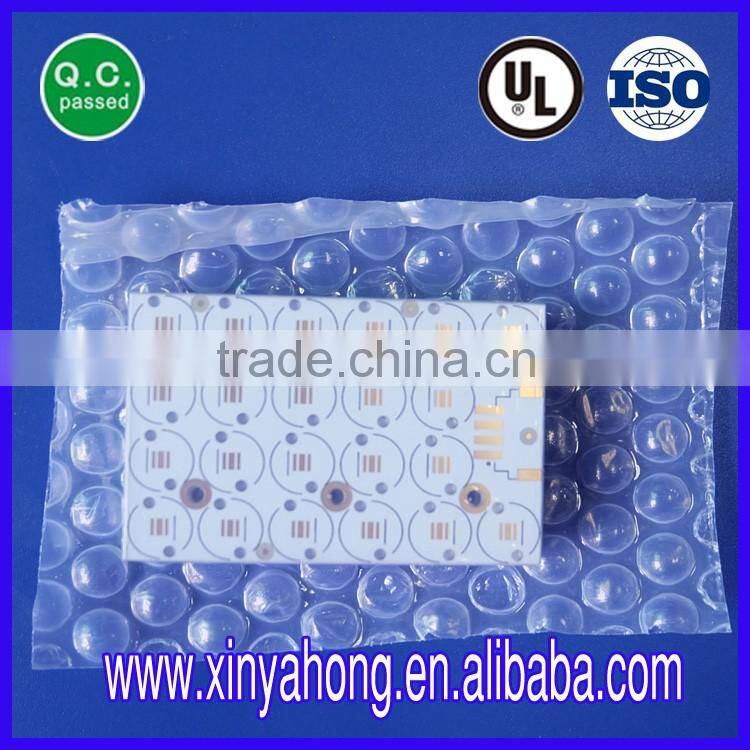

LED PCB,Top Sales Aluminum LED PCB Board,Multilayer Pcb,IN CHINA
US$ 0.01 - 0.01
MOQ: 1 Piece
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
XYH
Model Number:
XYH534
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Aluminum PCB for LED,high Quality,1-18LayerUS$ 0.01 - 0.01MOQ: 1 Piece -
Custom Aluminum PCB Board,Professional Aluminum Based PCB, Led PCB Board,US$ 0.01 - 0.01MOQ: 1 Piece
-
Custom Aluminum PCB Board,Led PCB BoardUS$ 0.01 - 0.01MOQ: 1 Piece
-
Custom Aluminum PCB Board,Led PCB Board,high QualityUS$ 0.01 - 0.01MOQ: 1 Piece
-
Aluminum Base Copper Clad Laminate for Led ProductUS$ 0.01 - 0.01MOQ: 1 Piece
Place of Origin
Guangdong, China
Brand Name
XYH
Model Number
XYH534
Base Material
Aluminum
Copper Thickness
1oz
Board Thickness
1.6mm
Min. Hole Size
0.15mm
Min. Line Width
0.08mm
Min. Line Spacing
0.1mm4mil)
Surface Finishing
Immersion Gold
Material : Aluminum Base Copper Clad Laminate
Layer counts: 1-4 Layers
Min Trace/Space: 0.1mm(4mil)
Min Hole Size:
Drilled hole: 0.40mm
Punched hole: 2.0mm
Max drill collar/ring: 8.0mm
Dimensional tolerance:
Track width: ±20%
Hole size: ±0.05mm
Accumulated space: ±0.1mm
Board outline tolerance: ±0.1mm
Distance between board edges: ±0.05mm
Surface Finish: ENIG/ HASL/OSP
