Truck weighing system
Model: ZH02D-Y
Description

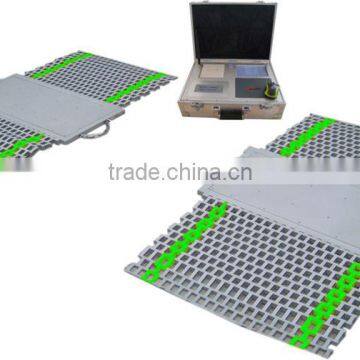

ZH02D-Y is Portable axle weighing scale which is made of aluminum alloy, and it is ultra thin, light and portable. The weighing bridge is as small as A3 paper. One five digit LCD is embedded in the weighing bridge, so it can instantly display the measuring results.
One ZH02D-Y can statically or dynamically measure wheel weight, so double can be parallel connected to measure axle weight. ZH02D-Y is widely used in measuring the weight of motorcar, auto car and little electrical bicycle.
Specification
Rated load: |
2t |
Rated output: |
1.0±0.1mv/v |
Repeatability: |
0.05%FS |
Error on corners: |
0.2%FS |
Zero balance: |
≤1%FS |
Static comprehensive error: |
0.1~0.5%FS |
Ultimate overload: |
150%FS |
Non-linearity: |
0.2%FS |
Use temp.range: |
-30~80°C |
Compensated temp.range: |
-10~50°C |
Temp.effect on span: |
0.03%FS/10°C |
Temp.effect on zero: |
0.05%FS/10°C |
Defend grade: |
IP 66 |
Recommended voltage: |
10V |
Excitation voltage: |
9~15V |
Net weight: |
10kg |
Max load of 1/4 weigh bridge: |
1t |
Full load: |
2t |
Dimension of the surface: |
359x289mm |
Remark: Four-core shielded cable is attached: φ5.5x3m | |
Application and installation
ZHYQ has a strong R&D team with more than 10 staffs, there are 3 senior engineers, 5 intermediate engineers, in the major of mechatronics. They have successfully developed a lot of new and High-tech products, won a number of patents and awards.
