Specifications
Applied in weighing and loading control of trucks in construction, agriculture, forestry and waste disposal.Truck weighing system
Model: ZH02B1
Description

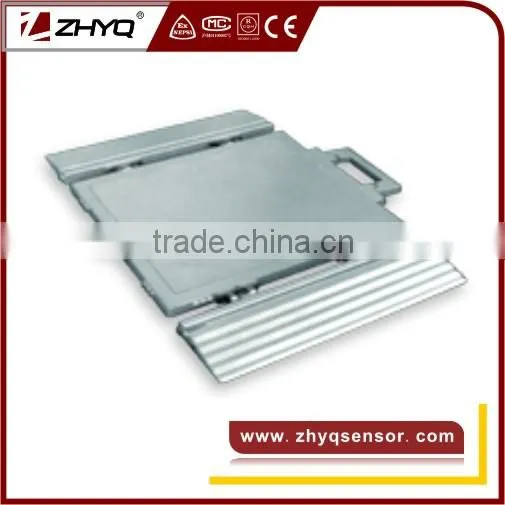

ZH02B1 is made of aluminum alloy, and it is ultra thin, light and portable. Also the slope is made of aluminum alloy, and it is can be easily mounted or unmounted. With full sealed technology it can meet EU IP 68 standard. The weighing bridge is as small as A3 paper.
One ZH02B1 can statically or dynamically measure wheel weight, so double can be parallel connected to measure axle weight. And the instrument, which is connected, can calculate the vehicle weight.BX-101B can be widely used in measuring the weight of motorcar, auto car and little electrical bicycle.
Dimensions
Specification
Rated load: |
2t |
Rated output: |
1.0±0.1mv/v |
Repeatability: |
0.05%FS |
Error on corners: |
0.2%FS |
Zero balance: |
≤1%FS |
Static comprehensive error: |
0.1~0.3%FS |
Dynamic comprehensive error: |
1.5%FS(1~5km/h)/ 3~5%FS(5~10km/h) |
Ultimate overload: |
150%FS |
Non-linearity: |
0.2%FS |
Use temp.range: |
-30~80°C |
Compensated temp.range: |
-10~50°C |
Temp.effect on span: |
0.03%FS/10°C |
Temp.effect on zero: |
0.05%FS/10°C |
Output resistance: |
400±5Ω |
Defend grade: |
IP 66 |
Recommended voltage: |
10V |
Excitation voltage: |
9~15V |
Net weight: |
8kg |
Max load of 1/4 weigh bridge: |
1t |
Full load: |
2t |
Dimension of the surface: |
359x289mm |
Insulation resistance: |
≥5000MΩ(100VDC) |
Remark: Four-core shielded cable is attached: φ5.5x3m | |
Application and installation
