Specifications
juice filling machineryduct:tea or juice
2.bottle:PET
3.capacity:4000-48000(500ml)
4.CE,ISO
juice filling machinery
This juice filling machinery integrates washing,filling and capping into one unit.It can be used for hot filling production of different kinds of fruit juice,tea.This series machine can also be used for filling purified and mineral water.
Features:
1.The suspending bottleneck clamping design make the bottle stable during the high speed moving conditions.By changing a few parts,it can meet the need of production of different types of bottles easily.
2.The new generation of stainless steel grab is adopted and the grabs have no contact with the area above the bottle's screw thread.Nozzles in the grab can guarantee the complete wash of the interior of the bottle.
3.The advanced micro negative-pressure filling technology used in this machine makes the filling quick,steady and accurate.The beverage -holding tank is fully-closed and also,temperature control device and CIP washing interface are intalled.
4.This machine can meet all the technical requirements for hot filling below 95 degree.And before capping,bottle mouth will be cleaned by RO washing device.
5.Advanced technologies ,such as human-machine interface touch-screen and PLC computer program control are adopted in this machine.
Model |
RCGX14-12-5 |
RCGX16-16-6 |
RCGX18-18-6 |
RCGX24-24-8 |
RCGX32-32-8 |
DGX40-40-10 |
|
Production Capacity(500ml) |
3000 |
5000 |
6000 |
10000 |
13000 |
15000 |
Way of Filling |
Gravity Micro Negative Pressure Filling |
|||||
Applicable Bottle Type |
Bottle dimeter Ø50- Ø 100mm;Height:150-320mm ;Volume:330-1500ml; |
|||||
Applicable Cap Shape |
Plastic Scres Cap |
|||||
Gas Source Pressure(Mpa) |
0.6 |
|||||
Gas Consumption(m3/min) |
0.2 |
0.2 |
0.4 |
0.4 |
0.5 |
0.55 |
Total Power(kw) |
4.6 |
4.6 |
5.4 |
6.4 |
8.07 |
9.56 |
Total Weight(kg) |
2500 |
3200 |
3800 |
5200 |
6500 |
8000 |
Dimension(L*W*H)(MM) |
2350*1700*2150 |
2600*1830*2030 |
2830*2030*2030 |
3220*2300*2600 |
3450*2510*2710 |
4510*3400*2900 |

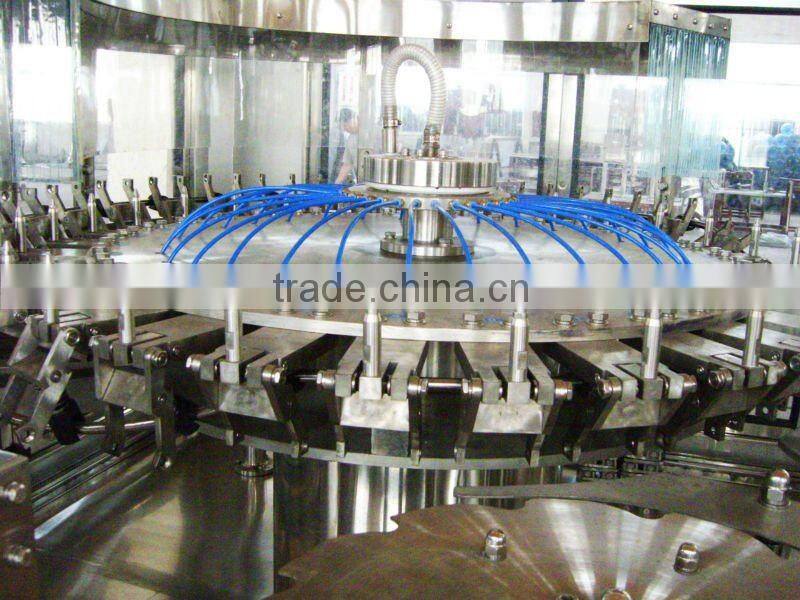

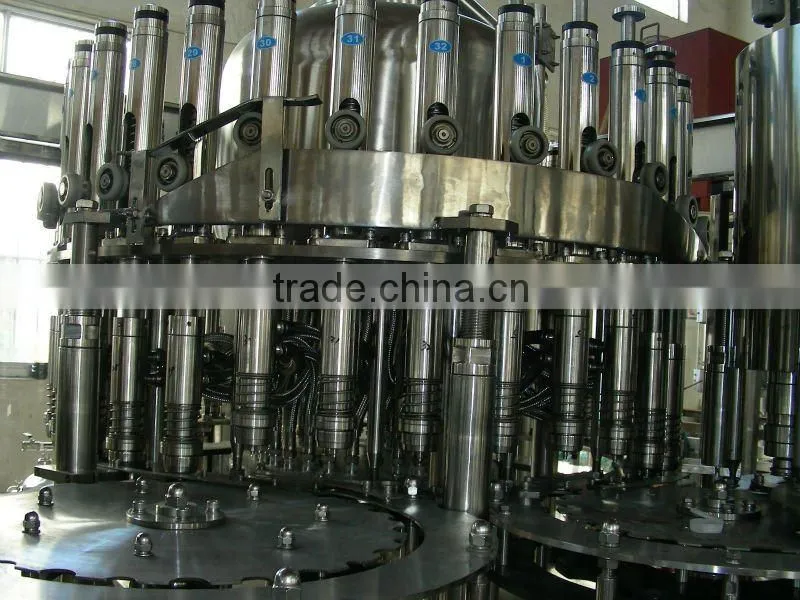

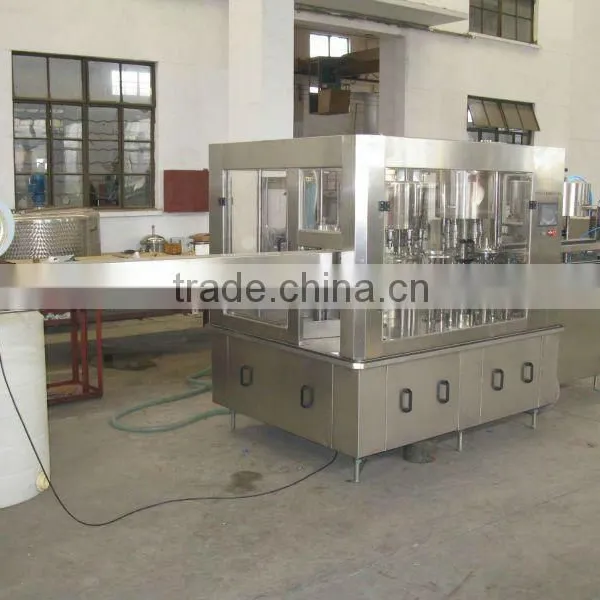

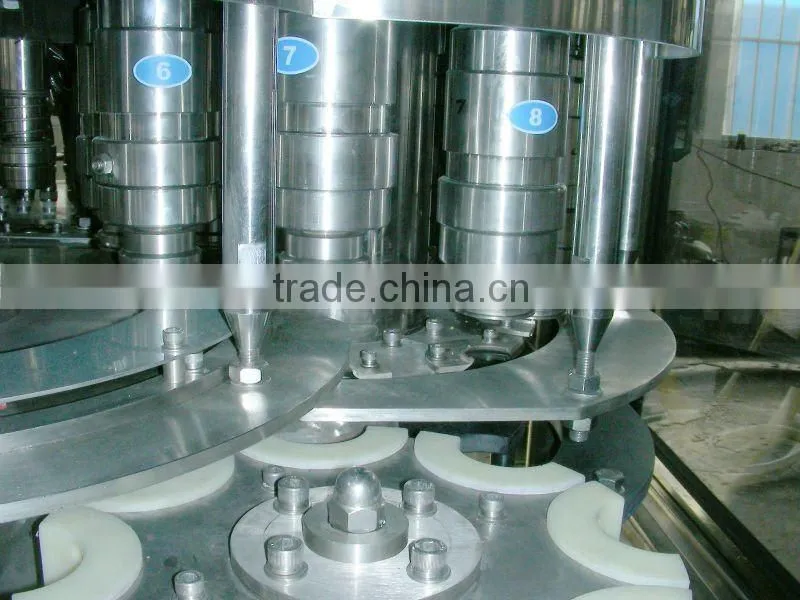

Machine Detail Photo Show:
