automatic soda machine1.washing filling capping in one
1.PLC control
2.Low cost,efficient
3.ISO and CE certification

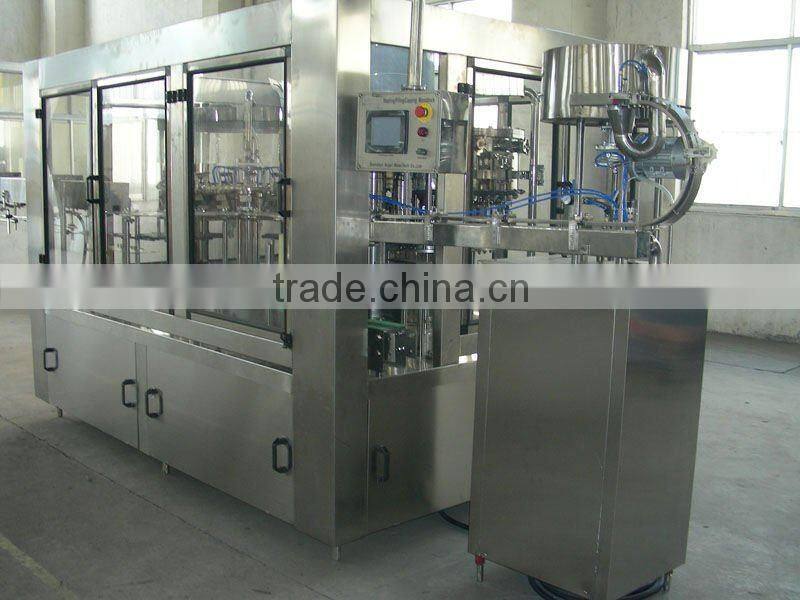

automatic soda machine
Application
Carbonated Beverage Filling machine is mainly used in the beverage filling operations.
Designed to rationalize the production process, it stands out due to the concentrated advanced technology in limited space. The special filling valves allow you to operate a quick production cycle without foam, preserving the integrity of the product.
1. The product line is mainly used in washing, filling and sealing carbonated beverage such as carbonated drinks, cola, iced tea and carbonated mineral water and so on.
2. All the line is composed by rotary washer, balanced pressure filler, screw type sealer and conveying system. The capacity is from 3000b/h to 40000b/h
3. The construction is advanced, The performance is stable. The operation and maintain are easy. And the speed can be adjusted infinitively and accords with the standards. It is an ideal choice for small and middle scale drink factories.
Main technical standards
Model |
DGX18-18-6 |
|
Production Capacity(500ml) |
4000-5000
|
Filling Pressure(Mpa) |
<0.4 |
Applicable Bottle Type |
Bottle dimeter Ø50- Ø 100mm;Height:150-320mm ;Volume:330-1500ml; |
Applicable Cap Shape |
Plastic Scres Cap |
Gas Source Pressure(Mpa) |
0.6 |
Gas Consumption(m3/min) |
0.64 |
Total Power(kw) |
6.4 |
Total Weight(kg) |
5800
|
Dimension(L*W*H)(MM) |
3220*2400*2600 |
Factory views
workhous equipment
semi-finished production finished
