Specifications
Carbonated filling line1,Bottle:glass
2,Capacity:2000BPH
3,Cap type:Aluminum caps
4,Filling carbonated drink

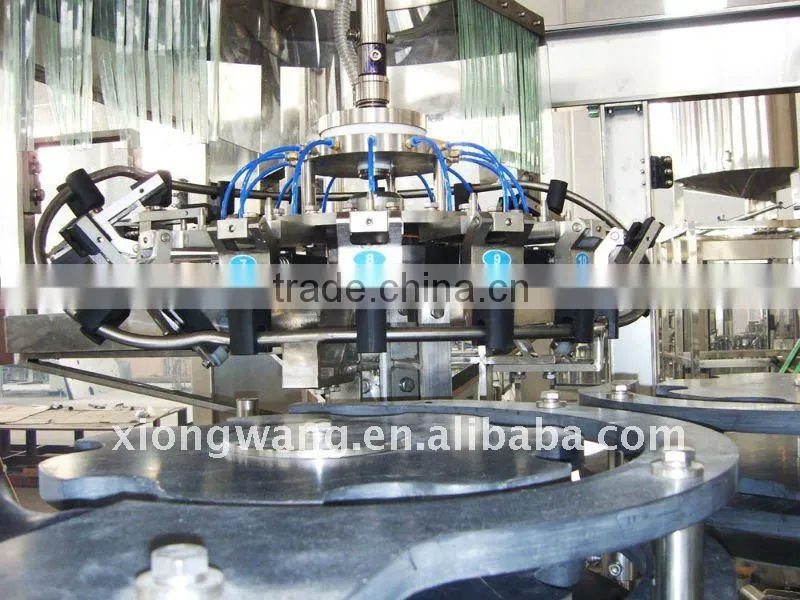

carbonated filling line
This carbonated filling line is specially designed for filling wine in glass bottles. Rotary auto bottle washing, star wheel conveying, normal pressure filling and aluminum cap sealing are integrated into one unit.

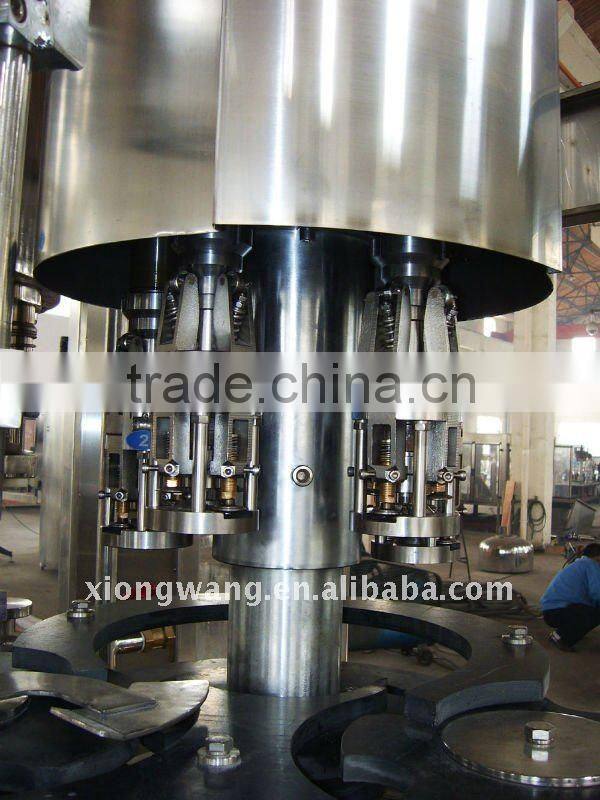

Photo show1:

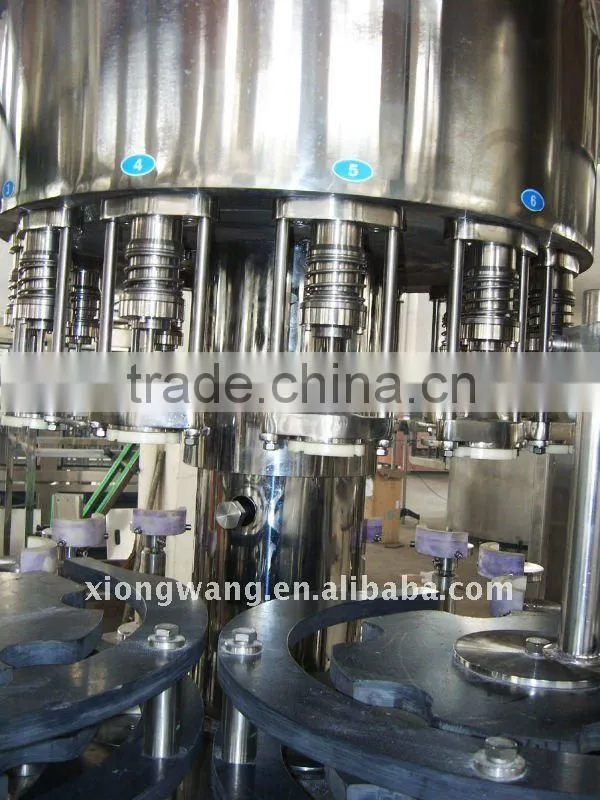

Photo show2:

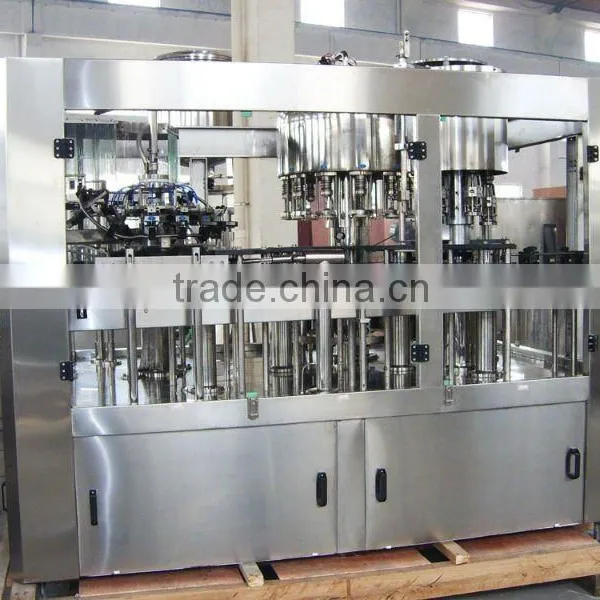

Photo show3:
Main Technology Parameter:
1. Output: 2000-3000 BPH / 500 ml / glass bottles
2. Heads number
Rinsing head: 14heads
Filling head: 12heads
Heads of Sealer: 5 heads
3 .Suitable bottle: Glass bottle
Diameter scale of bottle :D=57-78mm
Bottle height scale :H=210-300mm
Cap type: Aluminum caps
4.Power :work voltage(AC):380v
Fitted capacity: Main motor:2.2KW
Washing pump:0.37KW
Filling pump:0.55KW
5.Consumption :
Pressured air pressure :0.3Mpa
Used volume:0.2-0.4Nm3/min
6.Overall size: L*W*H:2600*1750*2600mm
7.Weight :2800Kg
