China Sanitary Rigid Stem Melt Pressure Transmitter MV/V

Description

PT124G-113 is China sanitary rigid stem melt pressure transmitter mV/V, it designed with rigid stem.This product built in amplifier circuit board and 80% shunt calibration, zero and span adjustable, and the output signal can input PLC directly. And it can match the N series pressure instrument from ZHYQ, also can match the pressure instrument or controller of other brand. This product filled with environmental, avirulent medium. If the diaphragm damaged during process, the leaking medium is no harm to the human body or ambient. With the advantages of exact and reliable measurement, high performance, no harm, it is widely used in the domestic and abroad.

Application

It has the wide application in medicine & food process equipment, drinking water environmental monitoring and etc.

Specifications

Pressure range:0-10MPa…0-150MPa (0-1500psi…0-20000psi)

Over Pressure: 1.5 X FSO

Combined Error: ± 1.5% FSO; ± 1.0% FSO (Including Linearity, Repeatability & Hysteresis)

Output: 3.33mV/V,2mV/V

Input Voltage: 10VDC

Repeatability: +/- 0.2%FSO

Internal Shunt Calibration (R-Cal): 80% FSO +/- 1%

Insulation Resistance: 200 megohms @ 100 Vdc

Max Diaphragm Temperature: 350℃

Mounting Torque: 500 inch/lbs. Max.

Standard Wetted Parts: Diaphragm coated 15-5 PH SST

Process connector: 1/2″-20UNF, M14×1.5, M18×1.5 Optional


Order Guide :  with "* "are required , with "---"is optional

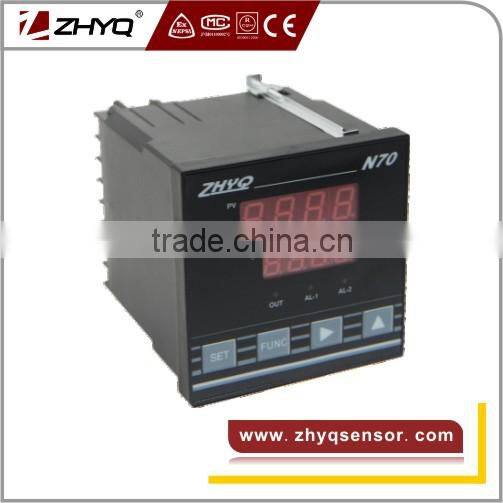

It can match the N series pressure instrument from ZHYQ, also can match the pressure instrument or controller of other brand. And is widely used in the domestic.
