Specifications
carbonated drink filling machine:1.Cap type: plastic screw cap
2.Gas souce pressure: 0.6Mpa
3.Sutible for PET bottle

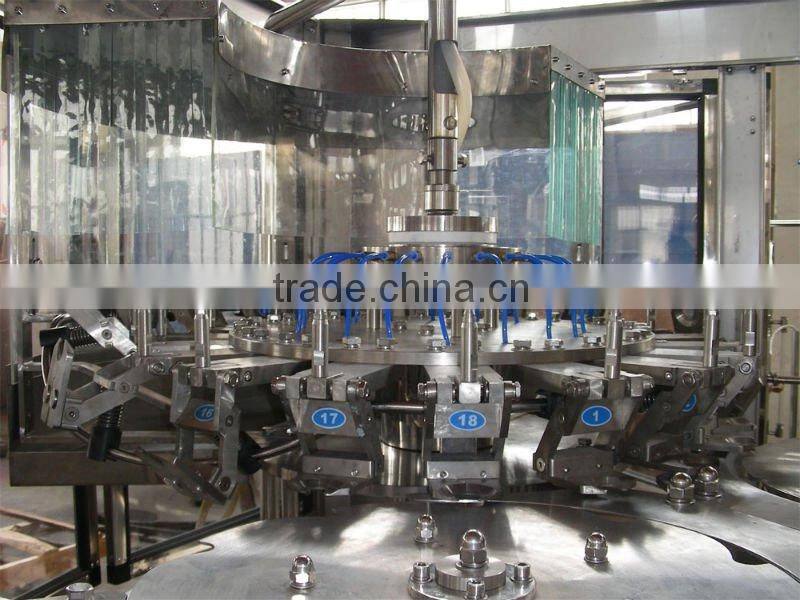

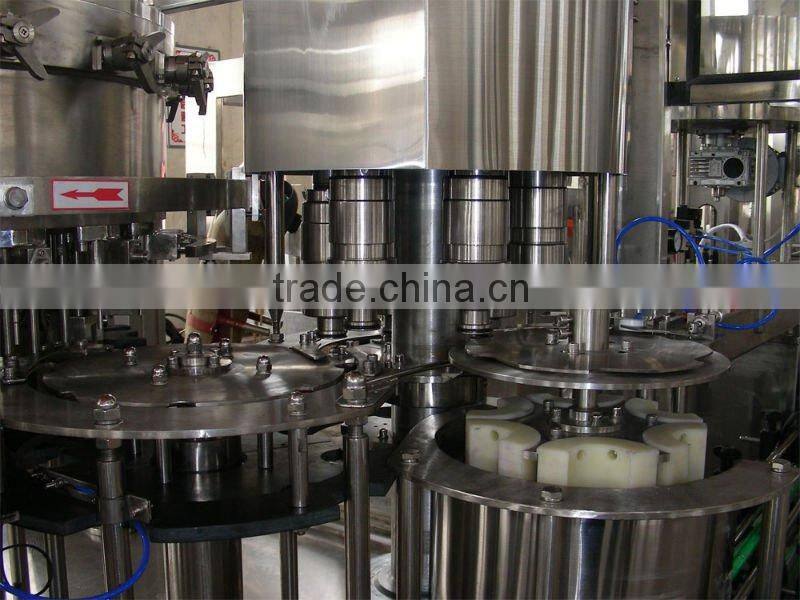

Carbonated drink filling machine is mainly used for filling carbonated drink, cola etc. with pet bottle or glass bottle, this picture is DGX18-18-6 monoblock machine. Its capacity is about 5000bottles/hr for 500ml pet bottle.
Model | DGX14-12-5 | DGX18-18-6 | DGX24-24-8 | DGX32-32-8 | DGX40-40-10 | DGX60-50-15 |
Production Capacity(500ml) | 2000-3000 | 4000-5000 | 6000-8000 | 9000-11000 | 12000-14000 | 16000-18000 |
Filling Pressure(Mpa) | <0.4 | |||||
Applicable Bottle Type | Bottle dimeter Ø50- Ø 100mm;Height:150-320mm ;Volume:330-1500ml; | |||||
Applicable Cap Shape | Plastic Scres Cap | |||||
Gas Source Pressure(Mpa) | 0.6 | |||||
Gas Consumption(m3/min) | 0.2 | 0.3 | 0.4 | 0.5 | 0.55 | 0.6 |
Total Power(kw) | 4.6 | 5.03 | 6.4 | 8.07 | 9.56 | 11.18 |
Total Weight(kg) | 2500 | 4200 | 5800 | 7000 | 9000 | 12000
|
Dimension(L*W*H)(MM) | 2350*1700*2150 | 2830*2030*2030 | 3220*2400*2600 | 3450*2510*2710 | 3800*2800*2710 | 4510*3400*2900 |
