Description

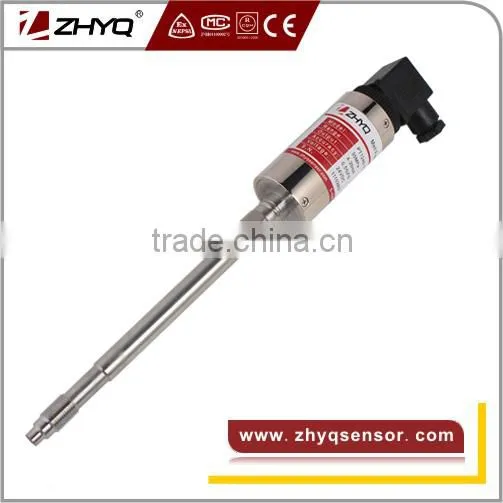

PT124B-115 is diaphragm type HART melt pressure transmitter designed with rigid stem construction. It adopts LCD display indicator, built in programmable amplifier electrical circuit, output 2-wire 4-20Ma signal, and HART protocol optional, to realize remote control.
Application
It has the wide application in plastic extrusion, chemical & fiber industry, polyester industry, etc
Specifications
Model |
diaphragm type HART melt pressure transmitter |
Pressure range |
0-3.5MPa…0-150MPa (0-500psi…0-20000psi) |
Over Pressure |
1.5 X FSO |
Combined Error |
±0.25% FSO, ± 0.5% FSO (Including Linearity, Repeatability & Hysteresis) |
Output |
4-20mA |
Input Voltage |
24VDC |
Repeatability |
+/- 0.2%FSO |
Bridge Resistance Input |
345 Ohms minimum |
Bridge Resistance Outpu |
350 Ohms +/- 10% |
Internal Shunt Calibration (R-Cal) |
80% FSO +/- 1% |
Insulation Resistance |
200 megohms @ 100 Vdc |
Max Diaphragm Temperature |
350 ℃ |
Mounting Torque |
500 inch/lbs. max. |
Standard Wetted Parts |
Diaphragm coated 15-5 PH SST |
Electrical connector |
DIN |
Process connector |
1/2 ″ -20UNF, M14×1.5, M18×1.5 Optional |
Dimension
Order Guide : with "* "are required , with "---"is optional
Model |
Range |
output |
Rigid & flexible length (inch) |
Screw Thread |
Electric connector |
Accuracy |
others |
PT124B-115 |
* |
* |
* |
* |
* |
* |
|
Example:PT124B-115-500Bar-4-20mA -6”-1/2-20UNF-5PIN-0.5% |
|
|
|||||
It can match the N series pressure instrument from ZHYQ, also can match the pressure instrument or controller of other brand. And is widely used in the domestic.
Our products are widely used in the field of hydraulic pressure, air pressure, petrochemical industry, automotive, air condition and compressor, construction machinery, plastic extrusion, chemical fiber, plastic rubber machine, non-woven fabrics and etc.
ZHYQ has a strong R&D team with more than 10 staffs, there are 3 senior engineers, 5 intermediate engineers, in the major of mechatronics. They have successfully developed a lot of new and High-tech products, won a number of patents and awards.
