Specifications
Piezoresistive Pressure transmitter for Air compressorpact confuguration
2.easy to install
3.long-term stability

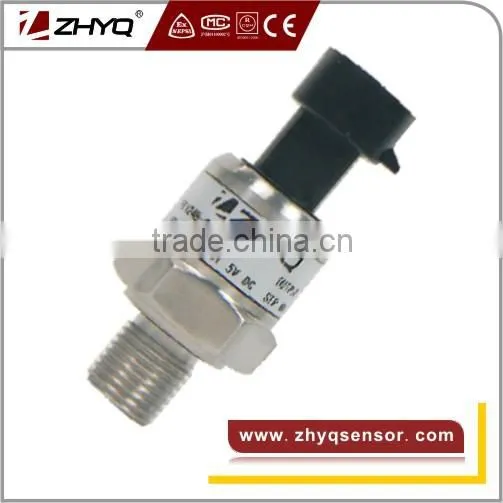

Piezoresistive Pressure transmitter for Air compressor PT124B-234
Descriptions
1. PT124B-234 Series air compressor pressure transmitter adopts the ceramic or diffused silicon sensor chip as the measurement element.
2. The pressure transducer signal is converted to a standard signal via the high-performance electrical amplifier.
3. It can match with various types of indicator, digital pressure gauge .
4. With the characters of reliable and stable performance, easy to install, small volume, light weight, cost-effective;
5. It is used in a variety of positive and negative pressure measurements
Feature
Superior long term stability
Temperature compensated over wide range
Low power consumption
Excellent repeatability/Hysteresis
Special design for customer
Many OEM options
Application
Laboratory test apparatus
Agricultural chemical equipment
Refrigeration and HVAC systems
Hydraulic pressure system
Gas tank pressure monitoring
Coolant pressure measuring
Specification
Range |
0….1bar to 0….60bar |
Accuracy |
0.5%FS; 1%FS |
Linear |
0.02%FS |
Reliability |
0.05%FS |
Output |
0.5-4.5V; 0-5V ; 1-5V; 4-20mA, |
Input Voltage |
24(5-36V)DC |
Operating Temperature |
-20°C~100°C |
Compensation Temperature |
-10~65°C(Standard compensation) |
Over Pressure |
150%FS |
Case material |
304SS |
Electric Connection |
Packed connector, circle screw connector |
Process Connection |
Z1/4, 1/4NPT, 1/8NPT (Optional) |
Dimension
Wiring Code
Signal Output |
4-20mA (2 Wires) |
0-5V, 0.5-4.5V,1-5V (3 Wires) |
||
Wiring Code |
1 |
Input (Red) |
1 |
Input (Red) |
2 |
Output (Black) |
2 |
common point (Black) |
|
3 |
None |
3 |
Output (Blue) |
|
Remarks: Above wiring connector is the standard type, if you need the special wiring, please contact with the company at first. | ||||
Order Guide : with "* "are required , with "---"is optional
Price, Package and Service
1, ZHYQ is in this field for 13+ years and our price is more competitive
2, OEM is available.
3, Replacement and repair if there is quality problem within 7-15 working days.
4, All goods will be fully checked by our QC.
5, Shipment: Express (FedEx, DHL, UPS & TNT) or forwarder.
6. Any questions from you are welcome and will be replied in 24 hours.
7, Package: The goods will be put into the packing box with instructions and certificate of quality first.
