Specifications
high accuracy , high steadilyreplace Dynisco/Gefran product
1 year warranty
melt transducer designed for Restrictive Spaces

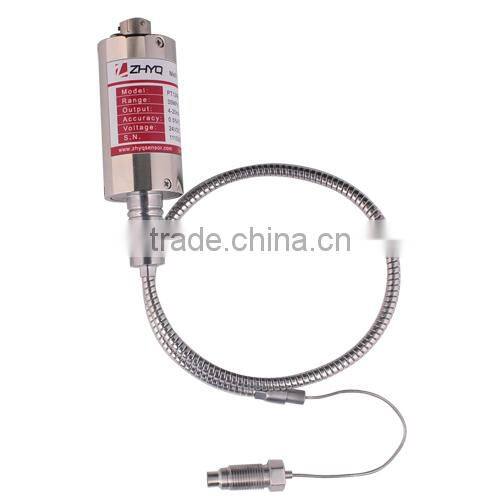

Melt pressure transducer with strain gage output for space restricted installations PT124G-128
Description:
PT124G-128 Series is melt pressure transducer with capillary for space restricted area , this melt pressure transducer is ideal for space restricted areas applications required, where mounting space is limited. also this melt pressure transducer has a free-spinning jam nut that simplifies installation. The series melt pressure transducer comes equipped with six or eight pin bendix connector. It can be interchangeable with the similar world standard products. PT124G-128 welding with amplify circuit can be change to PT124B-128 , the signal be connected with PLC directly , with advantages of high precision and reliable pressure measuring and good quality and internal 80% calibration. international standard , high accuracy ,can replace Dynisco ,Gefran ,GP50 absolutely .
Feature :
this melt pressure transducer with capillary suitable for limited space , Simple Installation
Completely interchange similar import products
high accuracy ,Internal 80% calibration
Excellent stability , can replace Dynisco product absolutely .
Suitable for space restricted areas applications required
Application:
Plastic extruder
Petrochemical
Polyester equipment
Plastic rubber machine
Chemical fiber manufacturing equipment
Specification:
Name | melt pressure transducer with strain gage output for space restricted installations |
Model | PT124G-128 |
Pressure range | 0-35bar…0-1500bar (0-500psi…0-20000psi) |
Over Pressure | 1.5 X FSO |
Combined Error | ± 1.5% FSO , ± 1.0% FSO (Including Linearity, Repeatability&Hysteresis) |
Output | 3.33 mV/V, 2mV/V |
Input Voltage | 10VDC |
Repeatability | +/- 0.2%FSO |
Bridge Resistance Input | 345 Ohms minimum |
Bridge Resistance Output | 350 Ohms +/- 10% |
Internal Shunt Calibration (R-Cal) | 80% FSO +/- 1% |
Insulation Resistance | 200 megohms @ 100 Vdc |
Max Diaphragm Temperature | 350 °C |
Mounting Torque | 500 inch/lbs. max. |
Standard Wetted Parts | Diaphragm coated 15-5 PH SST |
Electrical connector | 5PIN, 6PIN |
Process connector | 1/2 ″ -20UNF, M14×1.5, M18×1.5 Optional |

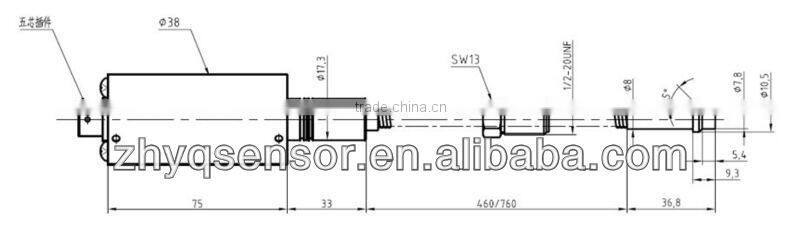

Dimension
Order Guide : with "* "are required , with "---"is optional
Model | Range (bar) | Output | Rigid & flexible length (inch) | Screw Thread | Electric connection | Accuracy | Other requirement |
PT124G-128 | * | * | * | * | * | * | --- |
Example:PT124G-128-500Bar-3.33mV/V -0/18”-1/2-20UNF-6PIN-0.5%FS | |||||||
Price, Package and Service
1, ZHYQ is producing various melt pressure transducer for 15+ years
2. all our melt pressure transducer OEM is available and our price is more competitive
3, Any questions from you about our melt pressure transducer are welcome and will be replied in 24 hours.
4, all our melt pressure transducer are 7 days replacement, 12 months free repair if it's the problem of product's quanlity.
5, All our melt pressure transducer will be fully checked by our QC.
6, Shipment: Express (FedEx, DHL, UPS & TNT) or forwarder.
7. Package: 1 pcs melt pressure transducer / inner box , and including with instructions and certificate of quality first.
