Help CenterPT124B-285 Cooling Tower Explosion Proof Pressure Transmitter
Related Products
-
PT124B-284 Sanitary Clamp Explosion Proof Pressure TransmitterUS$ 185 - 235MOQ: 1 Piece -
PT124B-283 Diaphragm Sanitary Explosion Proof Pressure TransmitterUS$ 110 - 155MOQ: 1 Piece
-
PT124B-282 Intelligent Explosion Proof Pressure TransmitterUS$ 135 - 195MOQ: 1 Piece
-
PT124B-281 Corrosive Condition Explosion Proof Pressure TransmitterUS$ 195 - 265MOQ: 1 Piece
-
PT124G-128 Plastic Extruder Space Limited Melt Pressure TransducerUS$ 120 - 235MOQ: 1 Piece

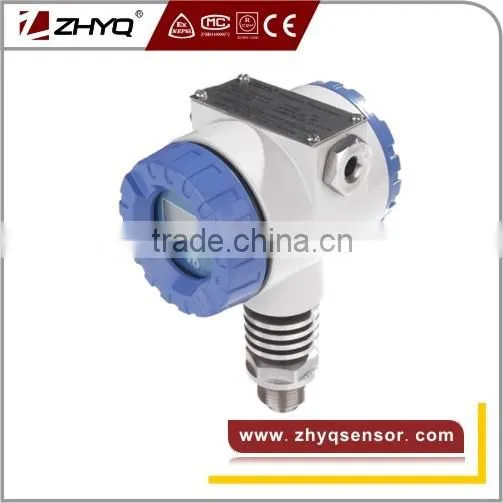

PT124B-285 cooling tower explosion proof pressure transmitter adopts imported thermostability sensing element, make the transmitter work stability under 150℃. And it welds with cool lasing technology, there are cooling ribs between the pressure sensor chips and amplifier electrical circuit, it avoids the heat conduction efficiently. It designed with flameproof structure, pass EXibIICT4, according with standard of GB3836.1-2000 and GB3836.4-2000. The protection class of the transmitter house is IP65, it is suitable for outdoor installation, LCD display optional, make it easy to read value directly.
Application
This series product is suitable for polyurethane device, papermaking, paint, medical pharmacy, food & Beverage machine.
Specification
Model |
PT124B-285 cooling tower explosion proof pressure transmitter |
Pressure range |
-1~0~1bar; 0-1bar~1000bar |
Over load |
150%FS |
Burst pressure |
300%FS |
Output |
4-20mA |
Power supply |
12~36VDC |
Response time |
<5ms |
Combine error |
0.5% FSO(Including Linearity, Repeatability & Hysteresis) |
Pressure connection |
M20×1.5 , G1/2 , G1/4 , 1/2NPT ( customer tailor ) |
Operating temperature |
-20℃ ~ 85℃ |
Temperature compensation |
0℃ ~ 60℃ |
Electrical connector |
Terminal Block |
Explosion proof grade |
ExiallCT4 |

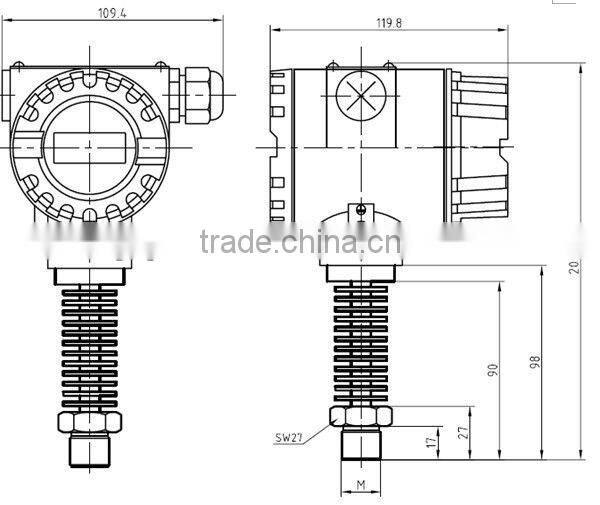

Dimensions
Ordering guide * are required, --- is optional
Model |
Range (bar) |
Output |
Screw Thread |
Electric connection |
Accuracy |
Diameter (mm) |
Other requirement |
PT124B-285 |
* |
* |
* |
* |
* |
* |
--- |
Example: PT124B-285-50bar-4/20mA-M20*1.5-5m cable | |||||||
