Description

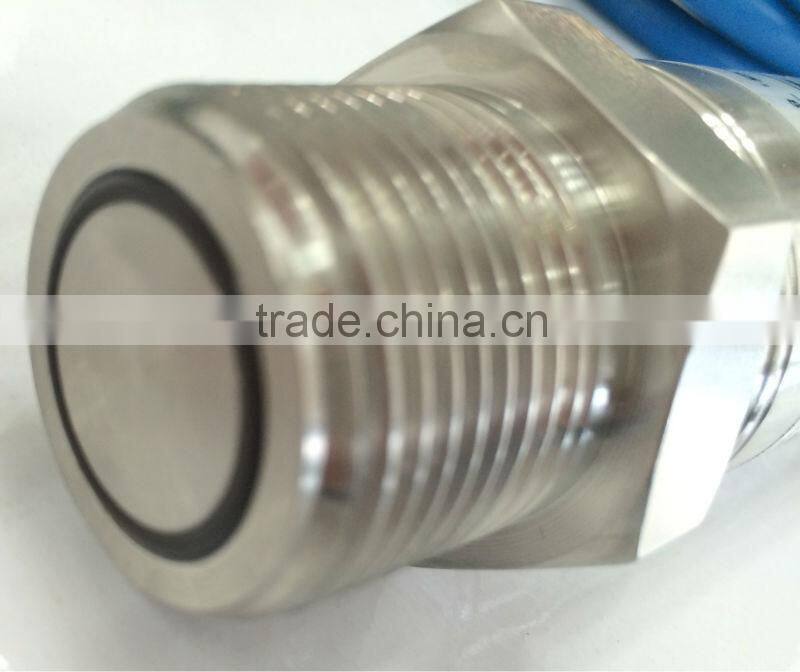

PT124B-2504 is High stability durable Earth pressure transmitter, which is for road, railway, metro and utilities construction. The PT124B-2512 designed with druable diaphgam, and excellent amplifying circuit, formed with special metal and technology, designed with skilled mechanics, consummate dynamics transfer configuration design to make the flush diaphragm no damaged by the hardness grit of the tested medium, make it suitable for hazardous locations. This model has the character of compact configuration, corrosion resistance, shock proof, widely temperature compensation.
Application
Mud measurement
Shield tunnel machinery
Loading machine
Hydraulic machinery
Brick-making machinery
Irrigation works, petroleum exploration and etc
Specification
Pressure range: 200bar,400bar,600bar,1200bar
Output: 4-20mA, 0-5V, 0-10V, 0.5-4.5V
Power supply: 12~36V DC
Protect grade: IP65
Diaphragm material: 17-4PH
Material of the house: 304, 316L
Load pressure: 150%FS
Response time: ≤1 (10%~90%)ms
Combined accuracy: 0.25%FS, 0.5%FS, 1.0%FS
Medium temperature: -25~85℃
Operating temperature: -35~85℃
Storage temperature: -40~125℃
Compensation temperature: 0~50℃,-10~80℃
Electrical connector: 7PIN, 4PIN connector
Process connector: Pressing type
Dimension
Our products are widely used in the field of road, railway, metro, utilities construction applicated for various earth pressure balance shield machine, slurry shield machine, hard rock tunnel boring machine etc.
