Description

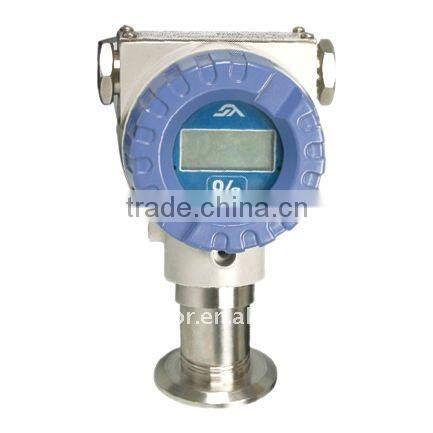

PT124B-284 is 4-20ma LED display explosion proof pressure transmitter with clamp design . this series is clamp mounting explosion proof pressure transmitter with 4-20mA output , it adopted flush diaphragm of special design to make the flush diaphragm no damaged by the hardness grit of the tested medium. Compact configuration, corrosion resistance, shock proof, Wide range temperature compensation. It adopted explosion proof shell with LCD display. particularly suitable for in the hazard application to measurement of viscous fluids or media containing particulates that may clog the pressure connection of standard industrial transmitters.
Feature
Digital circuit compensation technology
Intrinsically safe ,High accuracy, high stability
Explosion proof shell with LCD display
Output is 4-20mA,and load HART protocol optional
Flush diaphram, clamp mounting
Application
Suitable for liquid level, oil field, mine, chemical fiber
environmental protection, medicine, industrial control
Measure the pressure or height of the liquid level of corrosive medium, like acid, alkaline
electric power, furnace, natural gas,polyester,paper making etc
Specification
Name |
4-20ma LED display explosion proof pressure transmitter with clamp design |
Model |
PT124B-284 |
Pressure range |
0~10bar~350bar |
Over load |
150%FS |
Burst pressure |
300%FS |
Output |
4-20mA , HART optional |
Power supply |
24 (12~36) VDC |
Response time |
<5ms |
Combine error |
0.5% FSO(Including Linearity, Repeatability & Hysteresis) |
Pressure connection |
1" clamp , 1.5" clamp etc |
Operating temperature |
-20°C ~ 85°C |
Temperature compensation |
0°C ~ 60°C |
Electrical connector |
Terminal Block |
Material |
SS304 , SS316L optional |
Explosion proof grade |
ExiallCT4 |
Dimension
Order Guide : with "* "are required , with "---"is optional
Our products are widely used in the field of hydraulic pressure, air pressure, petrochemical industry, automotive, air condition and compressor, construction machinery, plastic extrusion, chemical fiber, plastic rubber machine, non-woven fabrics and etc.
ZHYQ has a strong R&D team with more than 10 staffs, there are 3 senior engineers, 5 intermediate engineers, in the major of mechatronics. They have successfully developed a lot of new and High-tech products, won a number of patents and awards.
