Specifications
melt pressure gauge1.all stainless steel structure
2.local index display
3.with output signal
4.CE&ISO9000

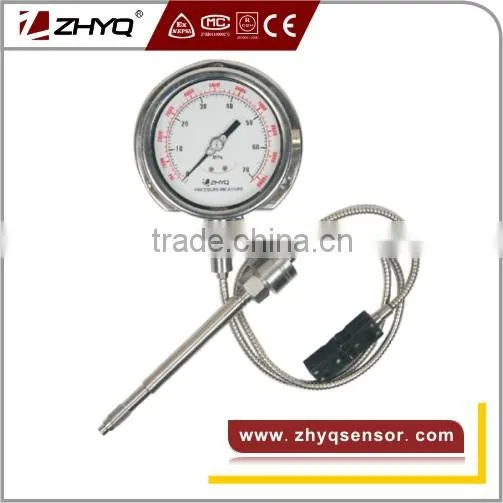

Mechanical flexible stem melt pressure gauge with output(manufacturer)
Features and benefits
Direct, local readings
Mechanical design
Step-up and stem-down versions
Gauge head rotates 360o for easy reading
0-100bar to 0-700bar pressure range
Stainless steel construction
12 months manufacturer's warranty
Install easily, high reliability
Zero adjustment
With signal output
Applications
Chemical fiber and filature
Rubber & plastic machinery
The equipment of high temperature steam
High temperature fluid pressure measuring and controlling
Specification
Range |
0….10MPa to 0….70MPa |
Output |
4-20mA; 3.33mV/V |
Accuracy |
±1.5%FS;±1.0%FS; |
Input Voltage |
24VDC (12~36)VDC; 10VDC |
Configuration |
Bourdon tube |
Over Pressure |
1.5×FS |
Max Diaphragm Temperature |
350°C |
Dial Diameter |
100mm |
Flexible Length |
0.5…5M |
Electronic Connector |
6PIN,Hirschman (Optional) |
Process Connector |
1/2″-20UNF, M14×1.5, M18×1.5(Optional) |
Ordering guide
Model |
Range |
Output |
Snout & Capillary |
Process connection |
Electric connection |
Other requirement |
PT124Y-615 |
--- |
--- |
--- |
--- |
--- |
--- |
Example: PT124Y-615-350Bar-3.33mV/V-6″/18”-1/2-20UNF-DIN43650 | ||||||
Other pressure gauges
Our services
1. Your inquiry related to our products or prices will be replied within 24hours
2. Well-trained and experienced staffs to answer all your enquiries in fluent English.
3. All our products have 1-year warranties.
4. Offering the support to solve the problem in the application or selling period.
5. Competitive prices based on same quality;
6. Guarantee samples quality same as mass production quality
